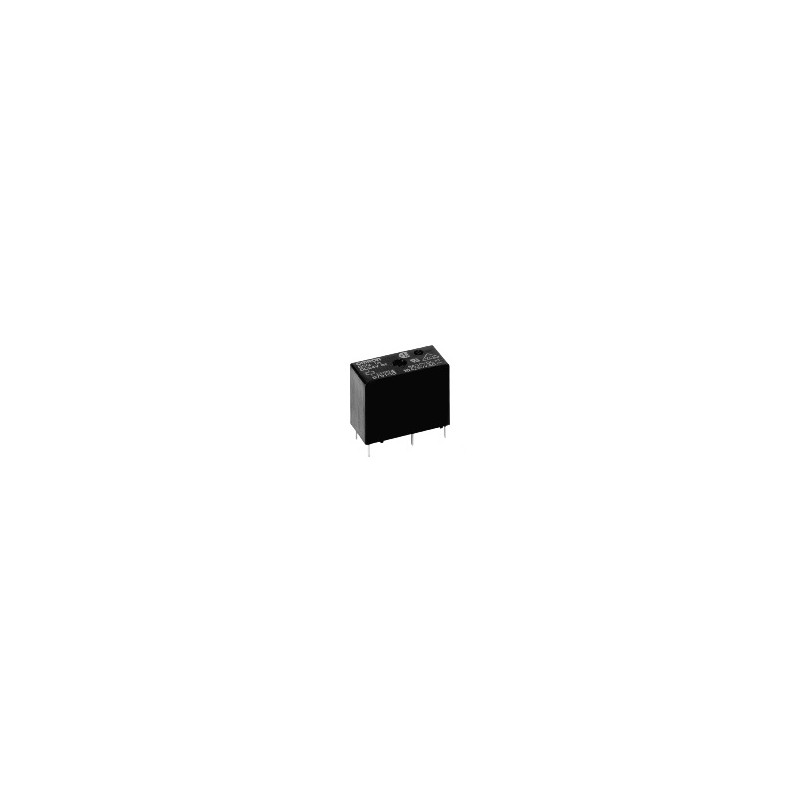

G5Q145DC

PCB relays series G5Q by Omron

The relays are characterized by a wash tight enclosure and they conform to strict security regulations. We are offering the following types by Omron: G5Q145DC, G5Q1412DC and G5Q1424DC.

• contact: SPDT
• contact material: silver alloy
• rated current (NO/NC): 10A/3A
• max. switching current (NO/NC): 10A/3A (AC) / 5A/3A (DC)
• max. switching voltage: 277V AC / 30V DC
• operate/release time: 10/5ms
• testing voltage
coil/contact: 4000V AC
contact/contact: 1000V AC
• lifetime:
mechanical: 10x106 operations
• temperature: -40 to +105°C
• weight approx.: 6.5g

PCB relays series G5Q14

G5Q145DC

109513 G5Q145DC G5Q145DC(TY) G5Q145DC(TY) PCB relays series G5Q by Omron. The relays are characterized by a wash tight enclosure and they conform to strict security regulations. We are offering the following types by Omron: G5Q145DC, G5Q1412DC and G5Q1424DC. • contact: SPDT• contact material: silver alloy• rated current (NO/NC): 10A/3A• max. switching current (NO/NC): 10A/3A (AC) / 5A/3A (DC)• max. switching voltage: 277V AC / 30V DC• operate/release time: 10/5ms• testing voltagecoil/contact: 4000V ACcontact/contact: 1000V AC• lifetime:mechanical: 10x106 operations• temperature: -40 to +105°C• weight approx.: 6.5g

Specifications

manufacturer
Manufacturer's name G5Q145DC(TY)
Nominal voltage [V DC] 5
Rated current [mA] 80
Coil resistance [Ω] 63
Max. operating voltage [V DC] 9,5
Response voltage [V] 3,75
Release voltage [V] 0,25
Data Sheet

Unit price

0,851 €

Stock: 270
Further delivery:
CW 26/2025

Minimum order quantity 10 units or
multiples of 10.
