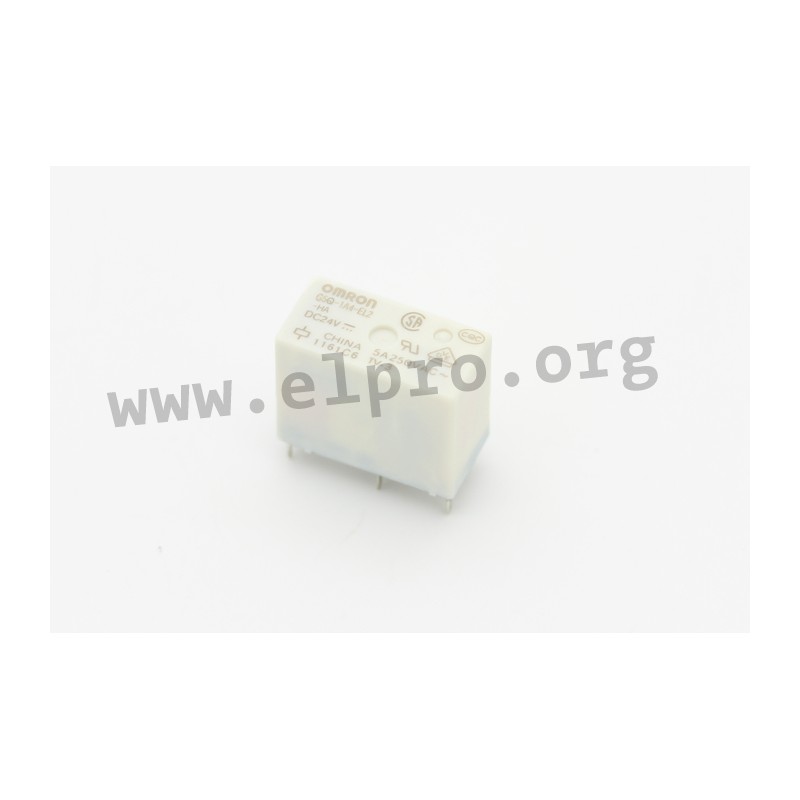

G5Q-1A4-EL2-HA-DC24

Omron PCB relay series G5Q-EL2 and G5Q-EL3

  • relays in a compact sized case (20,3x10,3x15,8mm)
  • in a completely sealed housing (RTII) with 10A switching current
  • with 1 normally open contact (SPST-NO)
  • comply with IEC/EN 60335-1 and coil insulation system class F (UL1446) as well as UL508 TV3 (G5Q-1A4-EL2_)
  • suitable for motor switching 3A with a high inrush current 30A (G5Q-1A4-EL3_)

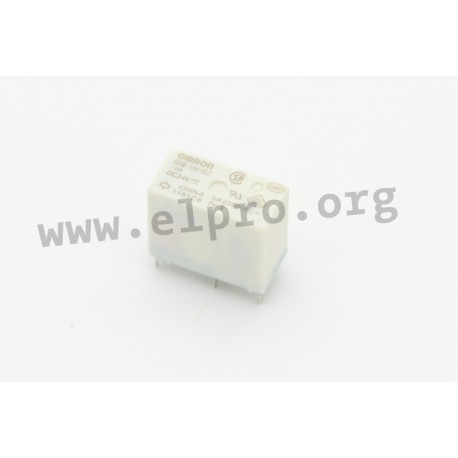

G5Q-1A4-EL2-HA-DC24, Omron PCB relays, 10A, 1 normally open contact, G5Q-EL2 and G5Q-EL3 series

G5Q-1A4-EL2-HA-DC24

234282 G5Q-1A4-EL2-HA-DC24 G5Q-1A4-EL2-HA-DC24(TY) G5Q-1A4-EL2-HA-DC24(TY) Omron PCB relay series G5Q-EL2 and G5Q-EL3. relays in a compact sized case (20,3x10,3x15,8mm) in a completely sealed housing (RTII) with 10A switching current with 1 normally open contact (SPST-NO) comply with IEC/EN 60335-1 and coil insulation system class F (UL1446) as well as UL508 TV3 (G5Q-1A4-EL2_) suitable for motor switching 3A with a high inrush current 30A (G5Q-1A4-EL3_)

Specifications

manufacturer
Manufacturer's name G5Q-1A4-EL2-...
Nominal voltage [V DC] 24
Coil resistance [Ω] 1440
Type of contact 1...
Max. operating voltage [V] 45,6
Switching current [A] 10
Response voltage [V] 20,25
Release voltage [V] 1,2
Nominal capacity [mW] 400
Data Sheet

Unit price

1,13 €

Stock: 500
Further delivery:
CW 27/2025

Minimum order quantity 20 units or
multiples of 20.
