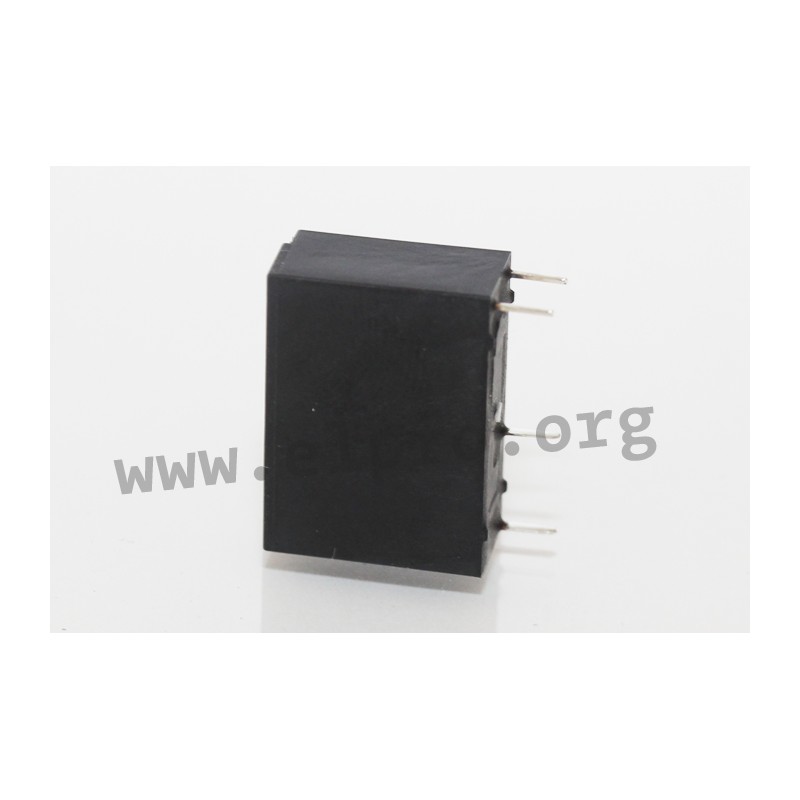

G5NB-1A-E 24DC

PCB relays series G5NB by Omron

• SPST-NO
• rated current: 5 A

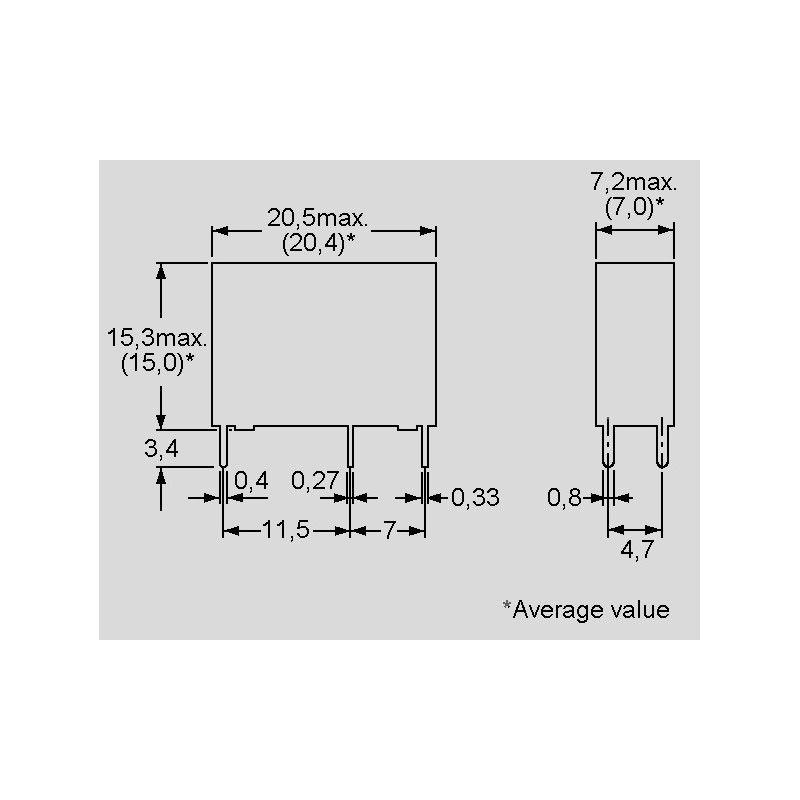

• housing: 20.5x7.2x15.3 mm
* miniature PCB power relays
* 1-pole, 5 A switching capability
* impulse: 10 kV
* high sensitivity by highly efficient magnetic ciruit
• satisfies EN61010 reinforced insulation requirements
• wash tight construction RTII
• for example to use in small electric and home appliances, air conditioners, refrigerators and water heaters
• contact material: Ag-alloy, Cd free
• max. switching voltage: 30 V DC, 250 V AC
• operate/release time: 10/10 ms
• testing voltage coil/contact, 1 min.: 4000 VRMS
• testing voltage contact/contact, 1 min.: 750 VRMS
• mechanical lifetime, min.: 5x106 operations
• electrical lifetime, min. (at 5 A / 250 V AC): 10x104 operations
• electrical lifetime, min. (at 3 A / 30 V AC): 20x104 operations
• operating temperature: -40 to +70 °C
• weight: approx. 4 g

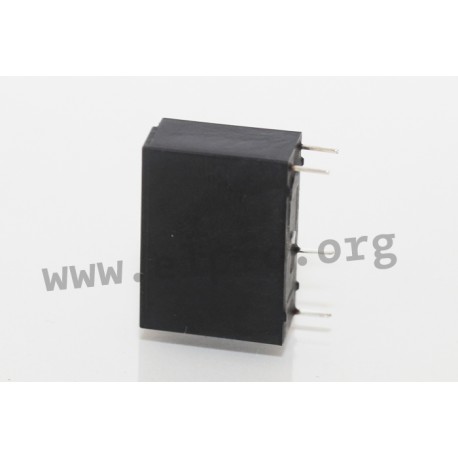

series G5NB by Omron

G5NB-1A-E 24DC

106909 G5NB-1A-E 24DC G5NB-1A-E DC24 G5NB-1A-E DC24 PCB relays series G5NB by Omron. • SPST-NO• rated current: 5 A• housing: 20.5x7.2x15.3 mm* miniature PCB power relays* 1-pole, 5 A switching capability* impulse: 10 kV* high sensitivity by highly efficient magnetic ciruit• satisfies EN61010 reinforced insulation requirements• wash tight construction RTII• for example to use in small electric and home appliances, air conditioners, refrigerators and water heaters• contact material: Ag-alloy, Cd free• max. switching voltage: 30 V DC, 250 V AC• operate/release time: 10/10 ms• testing voltage coil/contact, 1 min.: 4000 VRMS• testing voltage contact/contact, 1 min.: 750 VRMS• mechanical lifetime, min.: 5x106 operations• electrical lifetime, min. (at 5 A / 250 V AC): 10x104 operations• electrical lifetime, min. (at 3 A / 30 V AC): 20x104 operations• operating temperature: -40 to +70 °C• weight: approx. 4 g

Specifications

manufacturer
Manufacturer's name G5NB-1A-E DC24
Nominal voltage [V DC] 24
Coil resistance [Ω] 2880
Response voltage [V] 18
Release voltage [V] 2,4
Data Sheet

Unit price

0,81 €

Stock: 479
Further delivery:
CW 21/2025

Minimum order quantity 1 to 9 units or multiples of 10 plus 0 to 9 .
