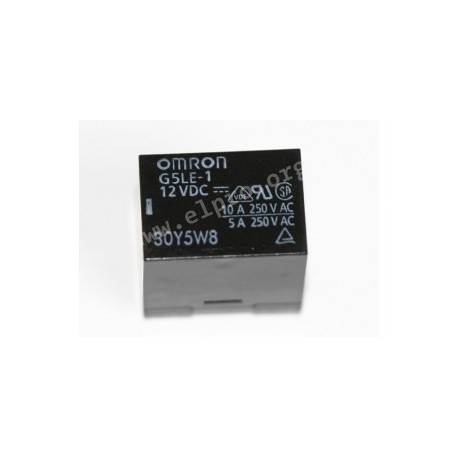

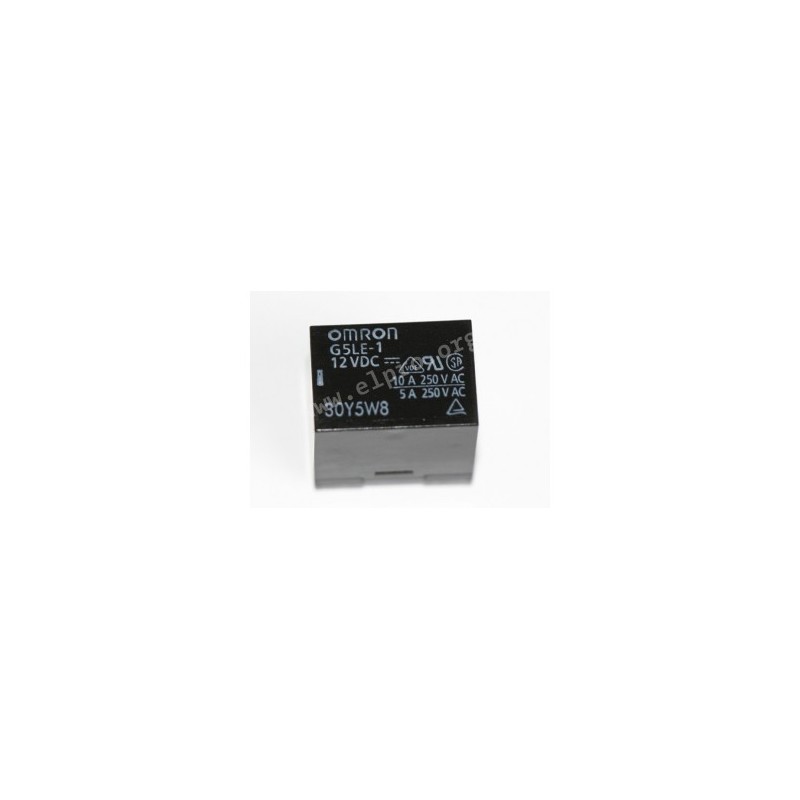

G 5 LE VD 9V

rated current: 10A

The PCB relays have a sensitive coil (400mV). They are equipped with a flux protected enclosure and withstand impulse of up to 4500V. We are offering the following types by Omron: G 5 LE VD 5V, G 5 LE VD 9V, G 5 LE 12V, G 5 LE 24V and G 5 LE VD 48V.

• contact: SPDT (circular contact)
• contact material: AgSnO2
• rated current: 10A
• max. switching current: 10A
• max. switching voltage: 250V AC
• max. switching power: 1200VA
• creepage/clearance: 3.3/2.7mm
• operate/release time: 10/5ms
• testing voltage
coil/contact: 2000V
contact/contact: 750V
• lifetime
mechanical: 10x106 operations
electrical: 10x104 operations
• operating temperature: -40 to +85°C
• weight approx.: 12g

Omron G5LE-series

G 5 LE VD 9V

110068 G 5 LE VD 9V G5LE-1-VD-9VDC G5LE-1-VD-9VDC rated current: 10A. The PCB relays have a sensitive coil (400mV). They are equipped with a flux protected enclosure and withstand impulse of up to 4500V. We are offering the following types by Omron: G 5 LE VD 5V, G 5 LE VD 9V, G 5 LE 12V, G 5 LE 24V and G 5 LE VD 48V. • contact: SPDT (circular contact)• contact material: AgSnO2• rated current: 10A• max. switching current: 10A• max. switching voltage: 250V AC• max. switching power: 1200VA• creepage/clearance: 3.3/2.7mm• operate/release time: 10/5ms• testing voltagecoil/contact: 2000Vcontact/contact: 750V• lifetimemechanical: 10x106 operationselectrical: 10x104 operations• operating temperature: -40 to +85°C• weight approx.: 12g

Specifications

manufacturer
Manufacturer's name G5LE-1-VD-9VDC
Nominal voltage [V DC] 9
Rated current [mA] 45
Coil resistance [Ω] 200
Max. operating voltage [V] 11,7
Response voltage [V] 6,75
Release voltage [V] 0,9
Data Sheet

Unit price

1,01 €

Stock: 200
Further delivery:
CW 34/2025

Minimum order quantity 10 units or
multiples of 10.
