G2R-2 24VDC

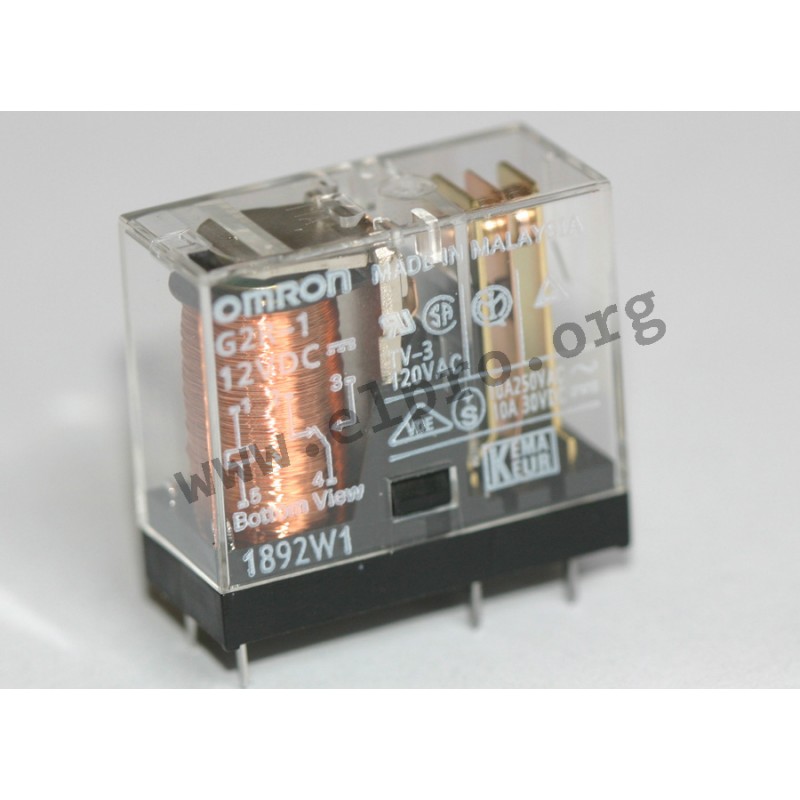

Omron PCB relay series G2R

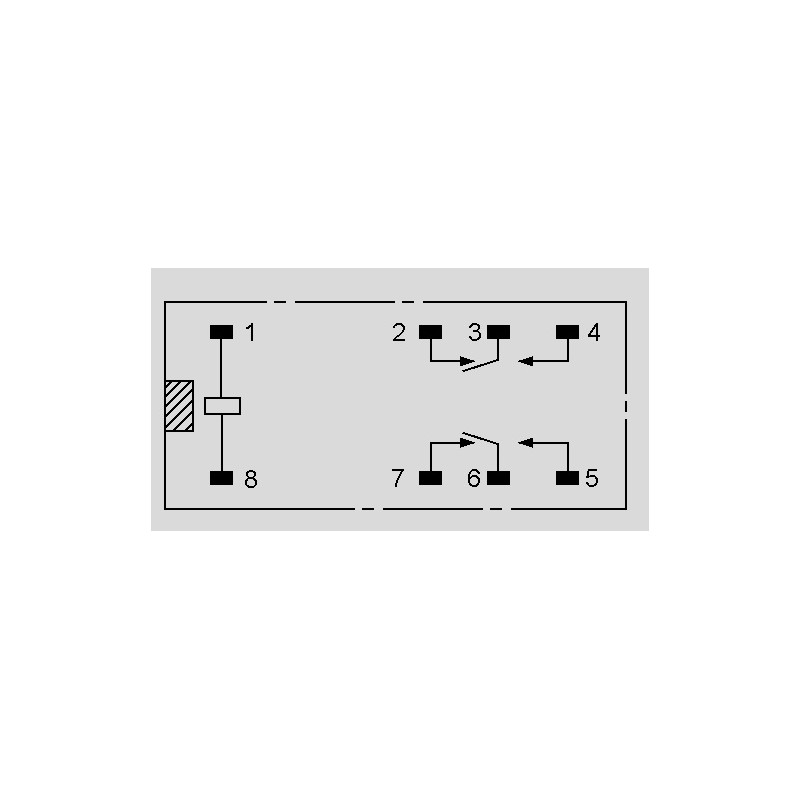

  • relays with 1 normally open (G2R-1AE_) or 1 (G2R-1_/G2R-1E_) resp. 2 changeover contacts (G2R-2_)

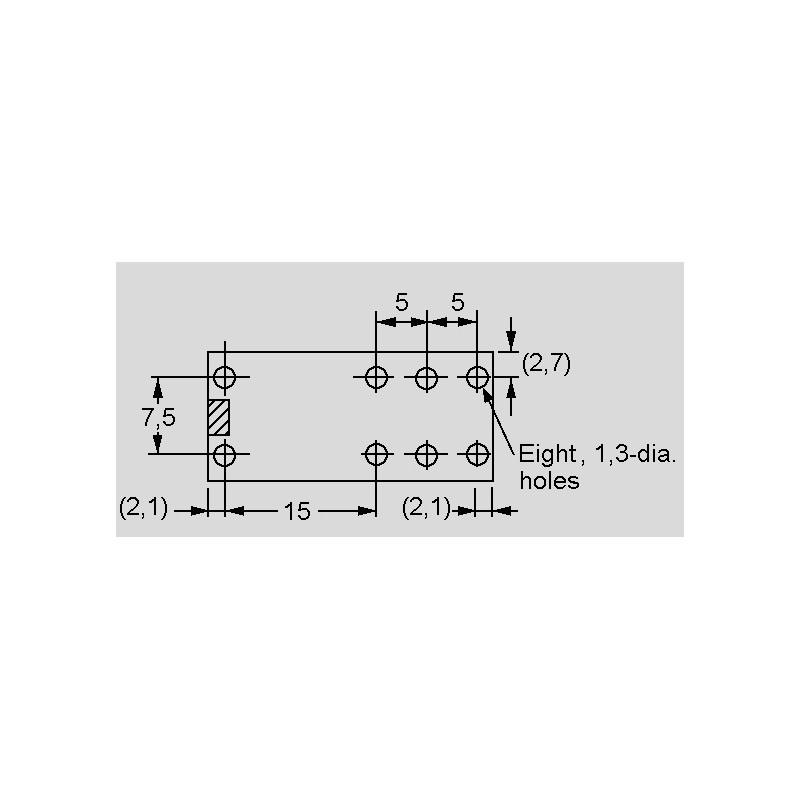

  • suitable for direct PCB mounting
  • flux proof
  • with a sensitive coil (530mW) and a dielectric strength of 5000V AC between contacts and coil
  • contact material: AgSnIn
  • switching current G2R-1_: 10A
  • switching current G2R-1AE_/G2R-1E_: 16A
  • switching current G2R-2_: 5A
  • operating temperature: -40 to +70°C
  • weight: 17g
series G2R by Omron

G2R-2 24VDC

106955 G2R-2 24VDC G2R-2 DC24 G2R-2 DC24 Omron PCB relay series G2R. relays with 1 normally open (G2R-1AE_) or 1 (G2R-1_/G2R-1E_) resp. 2 changeover contacts (G2R-2_) suitable for direct PCB mounting flux proof with a sensitive coil (530mW) and a dielectric strength of 5000V AC between contacts and coil contact material: AgSnIn switching current G2R-1_: 10A switching current G2R-1AE_/G2R-1E_: 16A switching current G2R-2_: 5A operating temperature: -40 to +70°C weight: 17g

Specifications

manufacturer
Manufacturer's name G2R-2 DC24
Nominal voltage [V DC] 24
Rated current [mA] 21,8
Coil resistance [Ω] 1100
Response voltage [V] 16,8
Release voltage [V] 3,6
Nominal capacity [mW] 530
Data Sheet

Unit price

1,82 €

Stock: 1810
Next incoming goods:
CW 02/2025
1000 units

Further delivery:
CW 26/2025

Minimum order quantity 10 units or
multiples of 10.
