> Passive elements>Relays>Electromechanical relays>Omron PCB relays, 5 to 16A, 1 normally open contact or 1 or 2 changeover contacts, G2R series>G2R-2-12

Manufacturers

G2R-2-12

Omron PCB relay series G2R

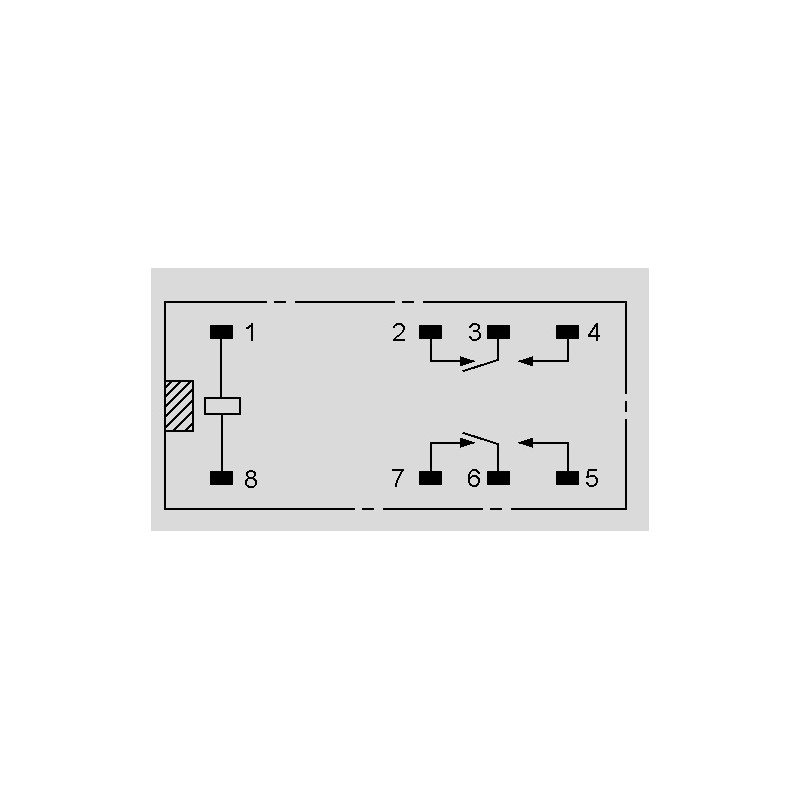

  • relays with 1 normally open (G2R-1AE_) or 1 (G2R-1_/G2R-1E_) resp. 2 changeover contacts (G2R-2_)

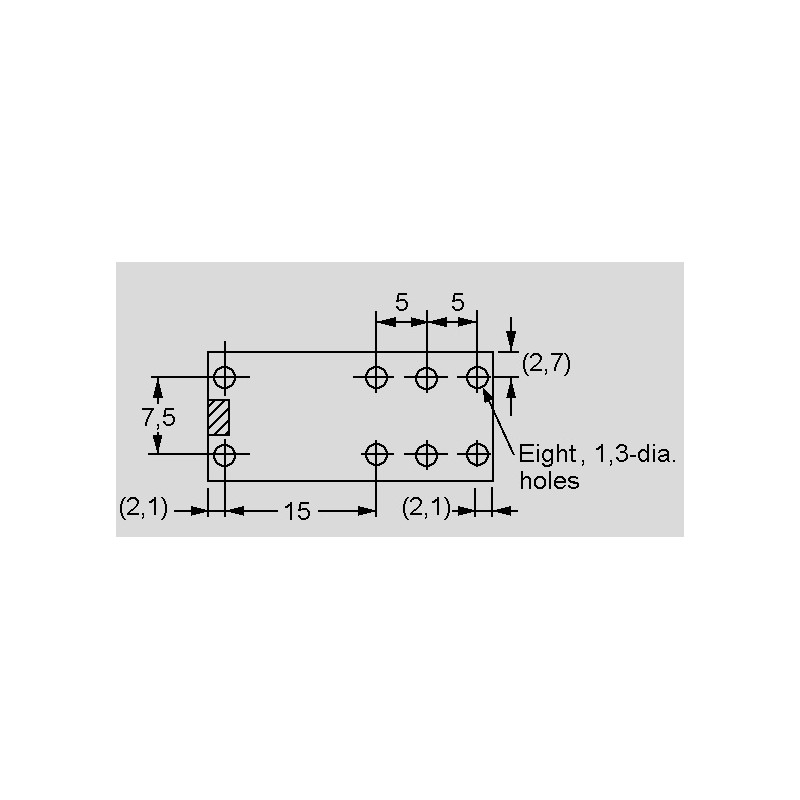

  • suitable for direct PCB mounting
  • flux proof
  • with a sensitive coil (530mW) and a dielectric strength of 5000V AC between contacts and coil
  • contact material: AgSnIn
  • switching current G2R-1_: 10A
  • switching current G2R-1AE_/G2R-1E_: 16A
  • switching current G2R-2_: 5A
  • operating temperature: -40 to +70°C
  • weight: 17g
series G2R by Omron

G2R-2-12

106954 G2R-2-12 G2R-2 DC12 G2R-2 DC12 Omron PCB relay series G2R. relays with 1 normally open (G2R-1AE_) or 1 (G2R-1_/G2R-1E_) resp. 2 changeover contacts (G2R-2_) suitable for direct PCB mounting flux proof with a sensitive coil (530mW) and a dielectric strength of 5000V AC between contacts and coil contact material: AgSnIn switching current G2R-1_: 10A switching current G2R-1AE_/G2R-1E_: 16A switching current G2R-2_: 5A operating temperature: -40 to +70°C weight: 17g

Specifications

manufacturer
Manufacturer's name G2R-2 DC12
Nominal voltage [V DC] 12
Rated current [mA] 43,6
Coil resistance [Ω] 275
Response voltage [V] 8,4
Release voltage [V] 1,8
Nominal capacity [mW] 530
Data Sheet

Unit price

1,81 €

Stock: 30
Next incoming goods:
CW 11/2025
160 units

Further delivery:
CW 30/2025

Minimum order quantity 10 units or
multiples of 10.
