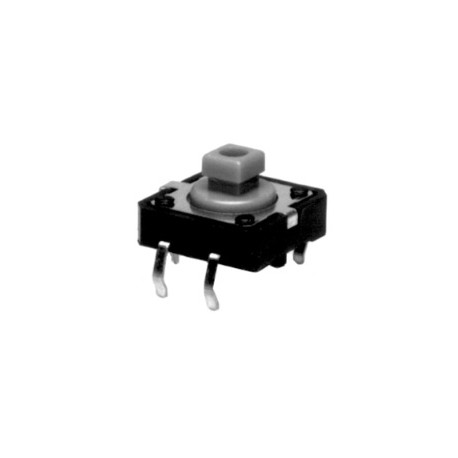

B3FS-1000 P

SMD, dimensions: 6x6mm, 1 NO

• very high mechanical and electrical operating life
• jump contact mechanism with short contact travel
• flux proof, automatic soldering possible
• switching capacity, max.: 1 to 50mA/3 to 24V DC
• test voltage, 1min.: 250V AC
• switching type: SPST-NO
• pretravel (+0.2/-0.1mm):  0.25mm
• contact surface: silver-plated
• soldering temperature, max.: 250°C,5s
• operating temperature: -25 to +70°C

tact switches series B3FS-10: by Omron

B3FS-1000 P

109552 B3FS-1000 P B3FS1000P B3FS1000P SMD, dimensions: 6x6mm, 1 NO. • very high mechanical and electrical operating life• jump contact mechanism with short contact travel• flux proof, automatic soldering possible• switching capacity, max.: 1 to 50mA/3 to 24V DC• test voltage, 1min.: 250V AC• switching type: SPST-NO• pretravel (+0.2/-0.1mm):  0.25mm• contact surface: silver-plated• soldering temperature, max.: 250°C,5s• operating temperature: -25 to +70°C

Specifications

manufacturer
Manufacturer's name B3FS1000P
F [N] 1
Switching capacity 1 Mio.
Height [mm] 3,1
Plunger colour black
Data Sheet

Unit price

0,161 €

Stock: 1800
Further delivery:
CW 22/2025

Minimum order quantity 100 units or
multiples of 100.
