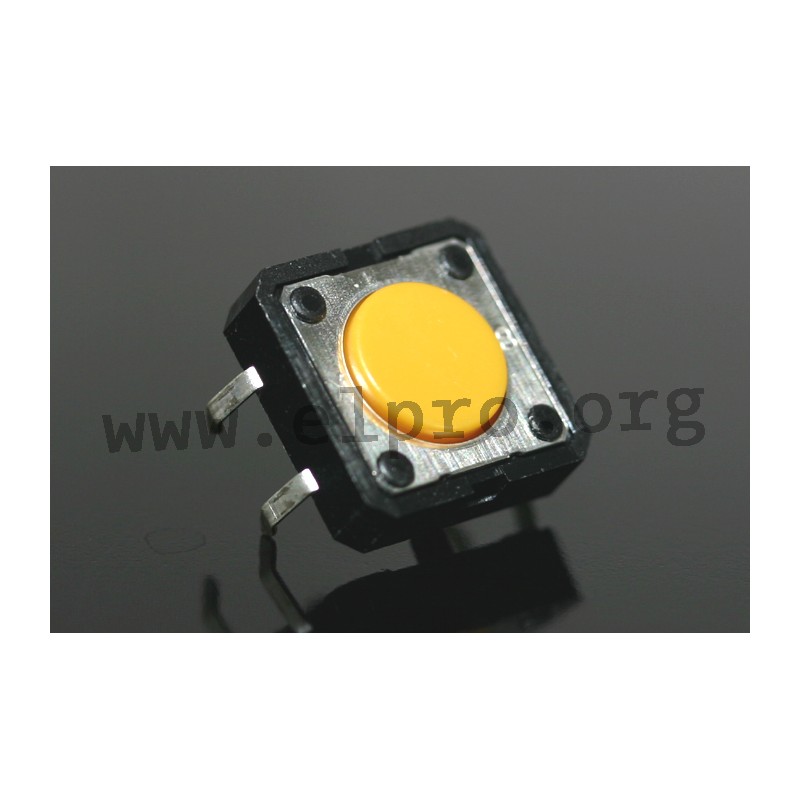

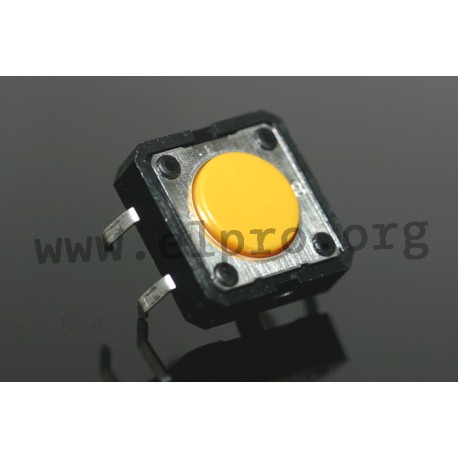

B 3 F-4005

dimensions: 12x12mm, 1 NO

• very high mechanical and electrical operating life
• jump contact mechanism with short contact travel
• flux proof, automatic soldering possible
• switching capacity, max.: 1...50mA/5...24V DC
• test voltage, 1min.: 500V AC
• switching type: 1 NO contact
• contact surface: silver-plated
• solder temperature, max.: 260°C, 5s
• operating temperature: -25...+70°C
• operating life: 1 Mio., 2.55N operating force

B 3 F-4005

B 3 F-4005

12060 B 3 F-4005 B3F-4005 B3F-4005 dimensions: 12x12mm, 1 NO. • very high mechanical and electrical operating life• jump contact mechanism with short contact travel• flux proof, automatic soldering possible• switching capacity, max.: 1...50mA/5...24V DC• test voltage, 1min.: 500V AC• switching type: 1 NO contact• contact surface: silver-plated• solder temperature, max.: 260°C, 5s• operating temperature: -25...+70°C• operating life: 1 Mio., 2.55N operating force

Specifications

manufacturer
Manufacturer's name B3F-4005
D x L [mm] 12 x 12
Operating force [N] 2,55
Data Sheet

Unit price

0,21 €

Stock: 4673
Further delivery:
CW 22/2025

Minimum order quantity 1 to 73 units or multiples of 100 plus 0 to 73 .
