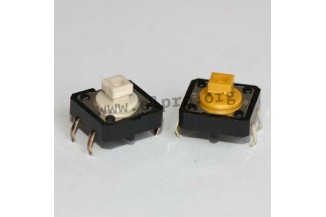

B 3 F-4000

dimensions: 12x12mm, 1 NO

• very high mechanical and electrical operating life
• jump contact mechanism with short contact travel
• flux proof, automatic soldering possible
• switching capacity, max.: 1...50mA/5...24V DC
• test voltage, 1min.: 500V AC
• switching type: 1 NO contact
• contact surface: silver-plated
• solder temperature, max.: 260°C, 5s
• operating temperature: -25...+70°C
• operating life: 3 Mio., 1.27N operating force


B 3 F-4000 B3F-4000

B 3 F-4000

12059 B 3 F-4000 B3F-4000 B3F-4000 dimensions: 12x12mm, 1 NO. • very high mechanical and electrical operating life• jump contact mechanism with short contact travel• flux proof, automatic soldering possible• switching capacity, max.: 1...50mA/5...24V DC• test voltage, 1min.: 500V AC• switching type: 1 NO contact• contact surface: silver-plated• solder temperature, max.: 260°C, 5s• operating temperature: -25...+70°C• operating life: 3 Mio., 1.27N operating force

Specifications

manufacturer
Manufacturer's name B3F-4000
D x L [mm] 12 x 12
Operating force [N] 1,27
Data Sheet

Unit price

0,186 €

Stock: 1082
Next incoming goods:
CW 47/2024
1000 units

Further delivery:
CW 23/2025

Minimum order quantity 1 to 82 units or multiples of 100 plus 0 to 82 .
