B3F-1000

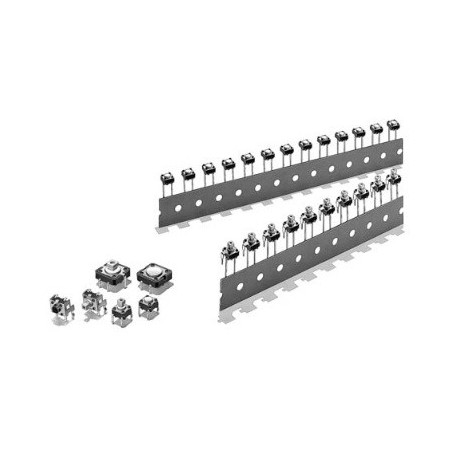

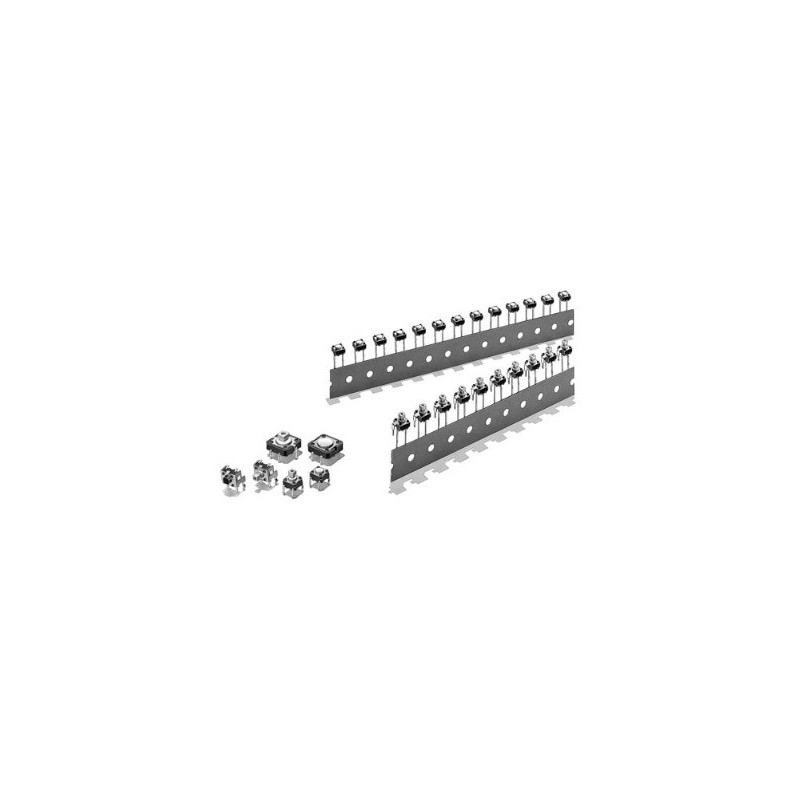

Tact switches by Omron

These tact switches have a very high mechanical and electrical operating life. They are characterized by a jump contact mechanism with short contact travel. The devices are flux proof and an automatic soldering is possible. We are offering the following types by Omron: B3F-1000, B3F-1002, B3F-1005, B3F-1020, B3F-1022, B3F-1025, B3F-1070, B3F-1050, B3F-1052, B3F-3100, B3F-3120, B3F-3150 and B3F-3152.

• switching capacity, max.: 1 to 50mA/3 to 24V DC
• test voltage, 1min.: 500V AC
• switching type: SPST-NO
• pretravel (+0.2/-0.1mm): 0.25mm
• contact surface: silver-plated
• solder temperature, max.: 260°C, 5s
• operating temperature: -25 to +70°C

B3F1000, Omron tact switches, 6x6mm, B3F-1000 and B3F-3000 series

B3F-1000

109538 B3F-1000 B3F1000 B3F1000 Tact switches by Omron. These tact switches have a very high mechanical and electrical operating life. They are characterized by a jump contact mechanism with short contact travel. The devices are flux proof and an automatic soldering is possible. We are offering the following types by Omron: B3F-1000, B3F-1002, B3F-1005, B3F-1020, B3F-1022, B3F-1025, B3F-1070, B3F-1050, B3F-1052, B3F-3100, B3F-3120, B3F-3150 and B3F-3152.• switching capacity, max.: 1 to 50mA/3 to 24V DC• test voltage, 1min.: 500V AC• switching type: SPST-NO• pretravel (+0.2/-0.1mm): 0.25mm• contact surface: silver-plated• solder temperature, max.: 260°C, 5s• operating temperature: -25 to +70°C

Specifications

manufacturer
Manufacturer's name B3F1000
Switching capacity 1 Mio.
Height [mm] 4,3
Operating force [N] 1
Plunger colour ivory
Data Sheet

Unit price

0,116 €

Stock: 1100
Further delivery:
CW 10/2025

Minimum order quantity 100 units or
multiples of 100.
