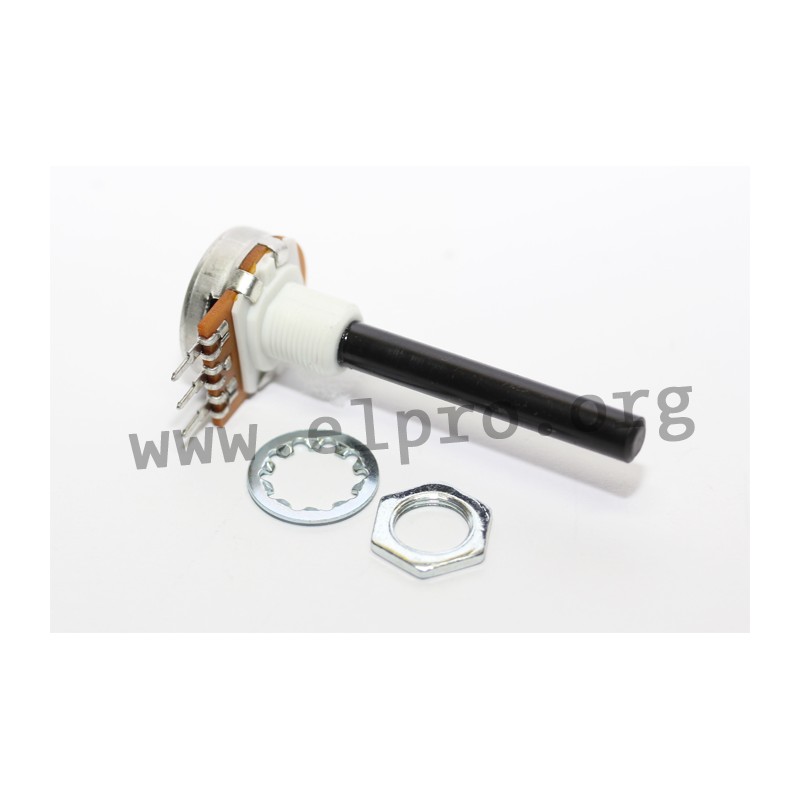

PC20BU 2,2 k A F1CP7

carbon rotary potentiometers PC20BU by Ωmeg

• power: 0.4W
• series: PC20BU
• linear (A)

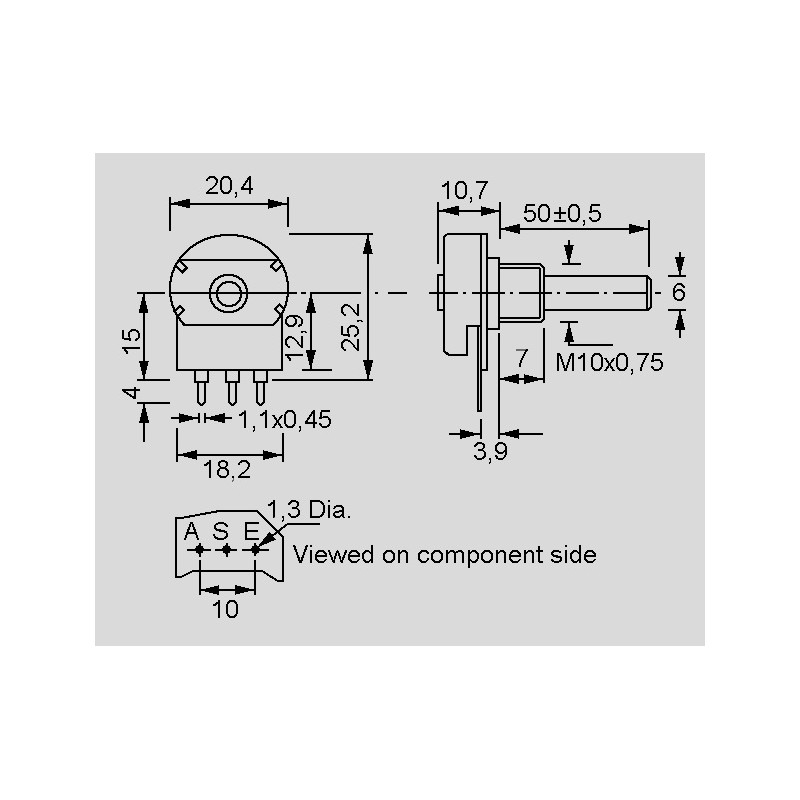

• shaft: plastic, Ø6mm
• by Ωmeg
• pitch: 5mm
• housing: Ø20.4mm
• rated power (TU=40°C): 0,4W
• operating voltage, max.: 500V DC
• insulation voltage: 1000V AC
• insulation resistance: =4GΩ
• resistance tolerance: 20%
• rotation angle mechanical: 300° ±5°
• rotation angle electrical: 267°
• operating torque: 0.4...1.5Ncm
• stop strength, max.: 80Ncm
• temperature range: -25°C...+70°C

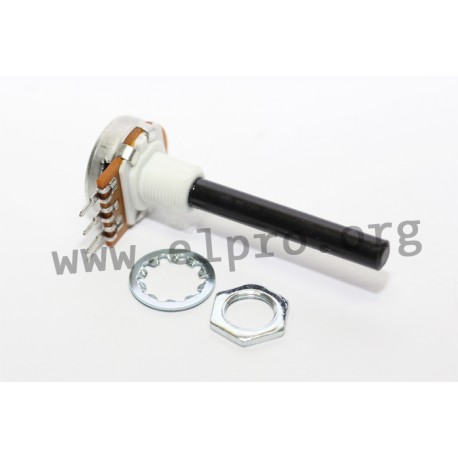

PC20BU 2,2 k A F1CP7

PC20BU 2,2 k A F1CP7

42834 PC20BU 2,2 k A F1CP7 PC20BU2K2AF1CP7 PC20BU2K2AF1CP7 carbon rotary potentiometers PC20BU by Ωmeg. • power: 0.4W• series: PC20BU• linear (A)• shaft: plastic, Ø6mm• by Ωmeg• pitch: 5mm• housing: Ø20.4mm• rated power (TU=40°C): 0,4W• operating voltage, max.: 500V DC• insulation voltage: 1000V AC• insulation resistance: =4GΩ• resistance tolerance: 20%• rotation angle mechanical: 300° ±5°• rotation angle electrical: 267°• operating torque: 0.4...1.5Ncm• stop strength, max.: 80Ncm• temperature range: -25°C...+70°C

Specifications

manufacturer
Manufacturer's name PC20BU2K2AF1CP7
Resistance [Ω] 2,2k
Power, max. [W] 0,4
Data Sheet

Unit price

2,39 €

Stock: 120
Next incoming goods:
CW 48/2024
300 units

Further delivery:
CW 13/2025

Minimum order quantity 10 units or
multiples of 10.
