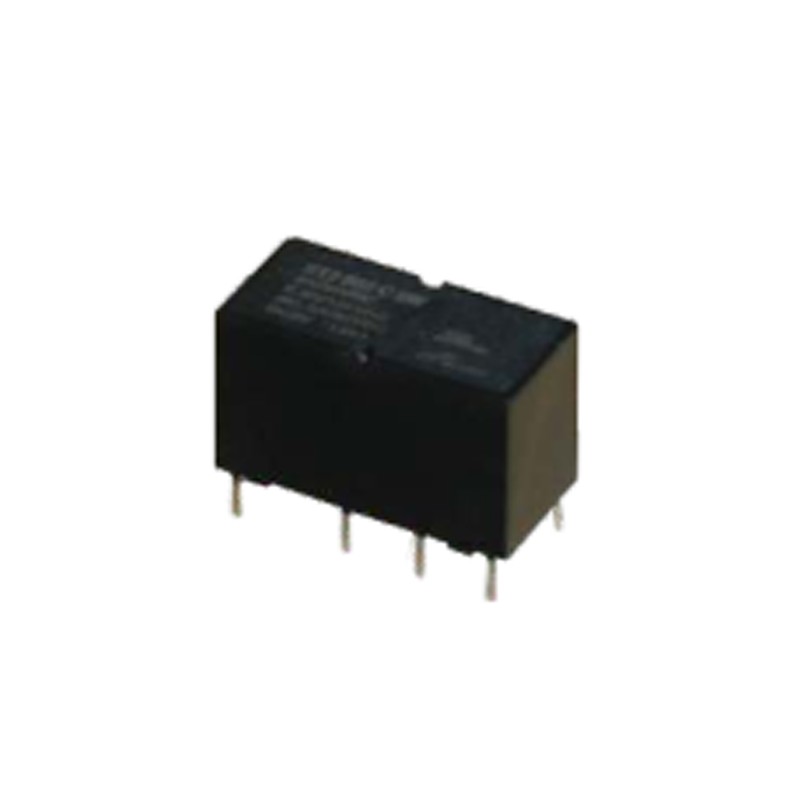

ST2002C24W

NF PCB relays series ST2

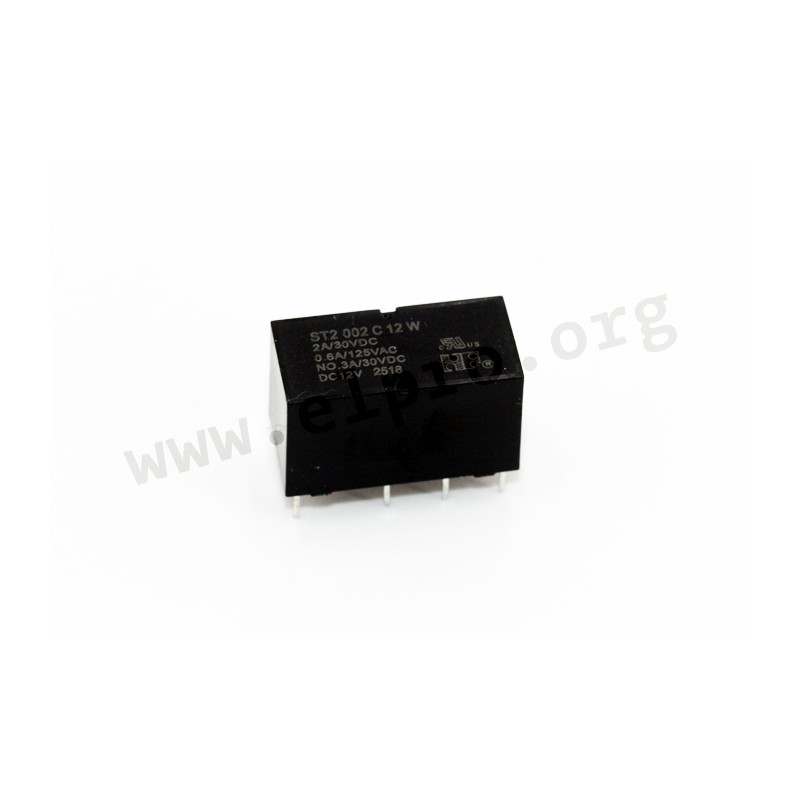

These standard PCB DIL relays have, a 2 form C contact (2x normally open contact), a switching current of 2A, as well as they belonge to the environmental protection class RTII. They are sealed and can be applied in the following areas: security devices, arlarm, office equipment, signal intercommunication systems, meassurements, and controls. We offer the following types of this NF series: ST2002C12W and ST2002C24W.

  • contact type: 2x normally open contact
  • contact material: AgNi, Au coated
  • maximal switching current: 2A
  • maximal switching voltage: 250V AC / 220V DC
  • switching power: 125VA / 60W
  • operate / drop out time: 5/3ms
  • test voltage: 1000VRMS (inductor / contact), 1000VRMS (open contact)
  • endurance: 108 (mechanical), 105 (electrical)
  • operating temperature: -40 to +90°C
  • weight: 4,5g
  • dimensions: 20x9,8x12mm

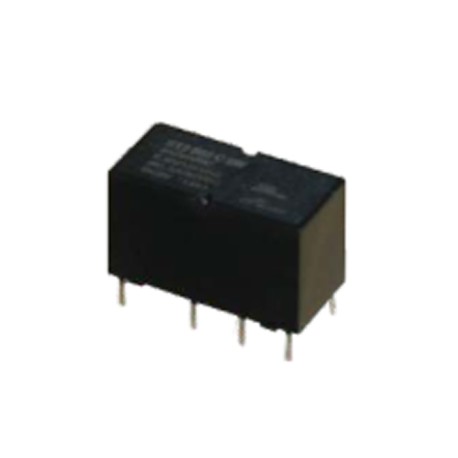

ST2002C24W, NF PCB relays, 2A, contact: 2x normally open contact, ST2 series

ST2002C24W

246891 ST2002C24W ST2002C24W NF PCB relays series ST2. These standard PCB DIL relays have, a 2 form C contact (2x normally open contact), a switching current of 2A, as well as they belonge to the environmental protection class RTII. They are sealed and can be applied in the following areas: security devices, arlarm, office equipment, signal intercommunication systems, meassurements, and controls. We offer the following types of this NF series: ST2002C12W and ST2002C24W. contact type: 2x normally open contact contact material: AgNi, Au coated maximal switching current: 2A maximal switching voltage: 250V AC / 220V DC switching power: 125VA / 60W operate / drop out time: 5/3ms test voltage: 1000VRMS (inductor / contact), 1000VRMS (open contact) endurance: 108 (mechanical), 105 (electrical) operating temperature: -40 to +90°C weight: 4,5g dimensions: 20x9,8x12mm

Specifications

manufacturer
Manufacturer's name ST2002C24W
Nominal voltage [V DC] 24
Coil resistance [Ω] 2880
Max. operating voltage [V DC] 24
Response voltage [V] 19,2
Nominal capacity [mW] 200
Data Sheet

Unit price

0,797 €

Stock: 430
Further delivery:
CW 14/2025

Minimum order quantity 10 units or
multiples of 10.
