SG3100E24W

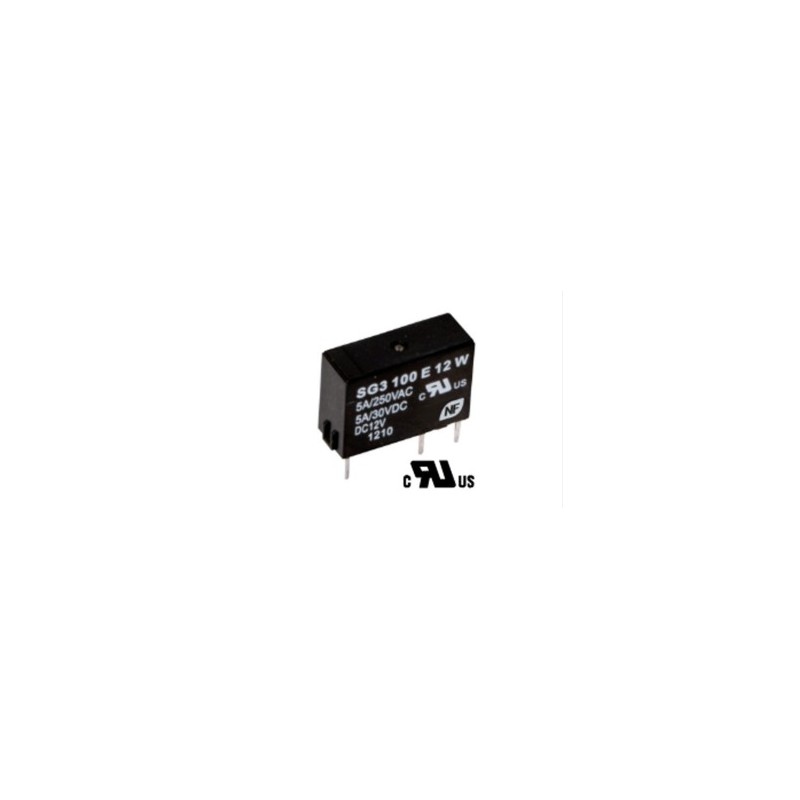

NF PCB relays series SG3

These slim miniature PCB relays (6,5mm), are UL/CUL approved.  They have a special design for interface and home application. We offer the following types of this NF series: SG3100E5W, SG3100E12W, and SG3100E24W.

  • contact type: 1x normally open contact
  • contact material: AgSnO
  • maximal switching current: 5A
  • maximal switching voltage: 30V DC / 250V AC
  • maximal switching power: 150W / 1250VA
  • contact resistance: 100mOhm
  • operate / drop out time: 10/5ms
  • test voltage: 3000V (inductor / contact), 750V (open contact)
  • endurance: 20x106 (mechanical)
  • operating temperature: -25 to +70°C
  • weight: 3g
  • dimensions: 17,5x6,5x12,5mm

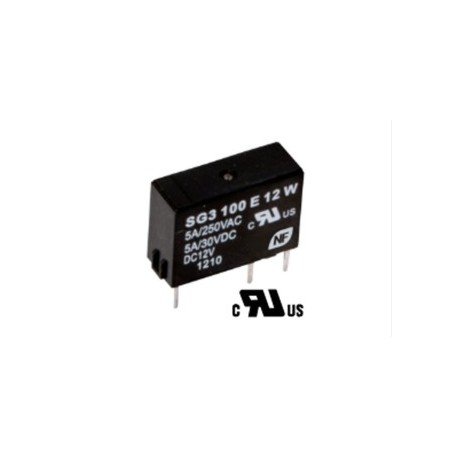

SG3100E24W, NF PCB relays, 5A, contact: 1x normally open contact, SG3 series

SG3100E24W

246893 SG3100E24W SG3100E24W NF PCB relays series SG3. These slim miniature PCB relays (6,5mm), are UL/CUL approved.  They have a special design for interface and home application. We offer the following types of this NF series: SG3100E5W, SG3100E12W, and SG3100E24W. contact type: 1x normally open contact contact material: AgSnO maximal switching current: 5A maximal switching voltage: 30V DC / 250V AC maximal switching power: 150W / 1250VA contact resistance: 100mOhm operate / drop out time: 10/5ms test voltage: 3000V (inductor / contact), 750V (open contact) endurance: 20x106 (mechanical) operating temperature: -25 to +70°C weight: 3g dimensions: 17,5x6,5x12,5mm

Specifications

manufacturer
Manufacturer's name SG3100E24W
Nominal voltage [V DC] 24
Coil resistance [Ω] 2880
Max. operating voltage [V DC] 31,2
Response voltage [V] 16,8
Nominal capacity [mW] 200
Data Sheet

Unit price

0,905 €

Stock: 200
Further delivery:
CW 14/2025

Minimum order quantity 10 units or
multiples of 10.
