S7001E12W

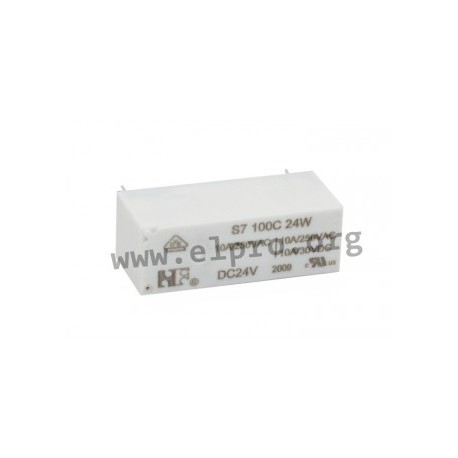

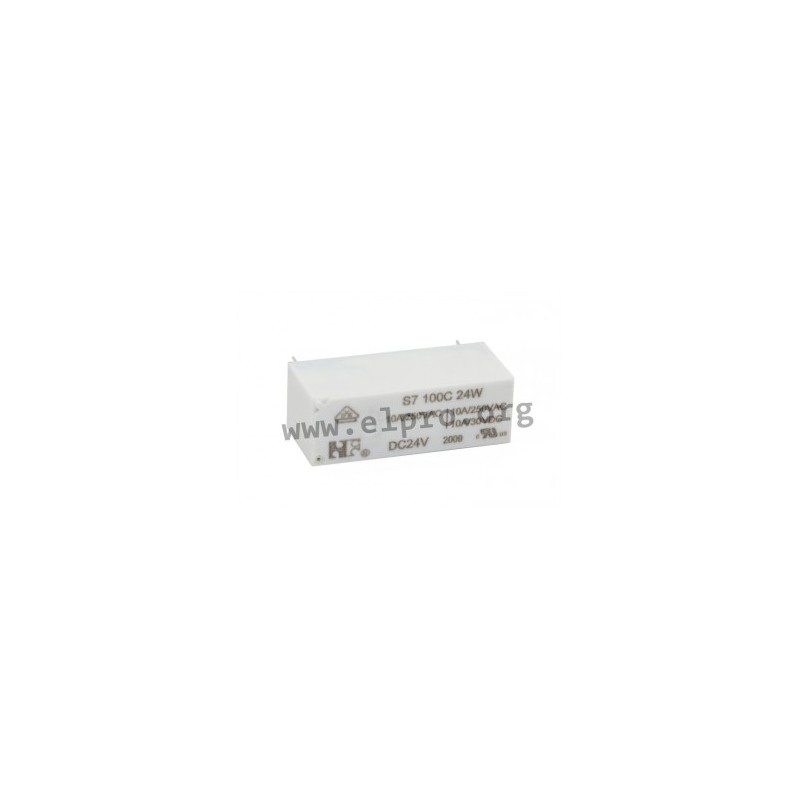

NF Forward PCB relays series S7

These one pole relays in a sealed plastic housing have a low profile (12,5mm, a voltage ressistance of up to 5kV between contact and inductor. They confirm relay safety class RTII and isolation class F. We offer various types of this NF series.

  • switching current: 10A
  • maximal switching voltage: 125V DC / 440V AC
  • contact type: 1x changeover contact (S7100_), 1x normally open contact (S7001_)
  • contact material: AgNi+Au (S7_C_), AgSnO (S7_E_)
  • contact ressistance: 100mOhm
  • minimal air-/creepage path: 8/8m
  • minimal attack-/drop-out time: 10/5ms
  • test voltage: 5000V (inductor/contact), 1000V (open contact)
  • lebensdauer: 105 cycles (electrical), 107 cycles (mechanical)
  • operating temperature: -40 to +85°C
  • weight: ±8g
S7001E12W, NF Forward PCB relays, 10A, 1x changeover or 1x normally open contact, S7 series

S7001E12W

246910 S7001E12W S7001E12W NF Forward PCB relays series S7. These one pole relays in a sealed plastic housing have a low profile (12,5mm, a voltage ressistance of up to 5kV between contact and inductor. They confirm relay safety class RTII and isolation class F. We offer various types of this NF series. switching current: 10A maximal switching voltage: 125V DC / 440V AC contact type: 1x changeover contact (S7100_), 1x normally open contact (S7001_) contact material: AgNi+Au (S7_C_), AgSnO (S7_E_) contact ressistance: 100mOhm minimal air-/creepage path: 8/8m minimal attack-/drop-out time: 10/5ms test voltage: 5000V (inductor/contact), 1000V (open contact) lebensdauer: 105 cycles (electrical), 107 cycles (mechanical) operating temperature: -40 to +85°C weight: ±8g

Specifications

manufacturer
Manufacturer's name S7001E12W
Nominal voltage [V DC] 12
Coil resistance [Ω] 620
Switching current [A] 10
Response voltage [V] 8,4
Nominal capacity [mW] 230
Data Sheet

Unit price

0,891 €

Stock: 250
Further delivery:
CW 18/2025

Minimum order quantity 10 units or
multiples of 10.
