NF8-001E24

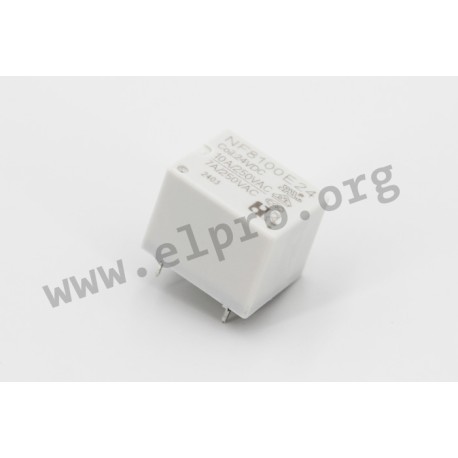

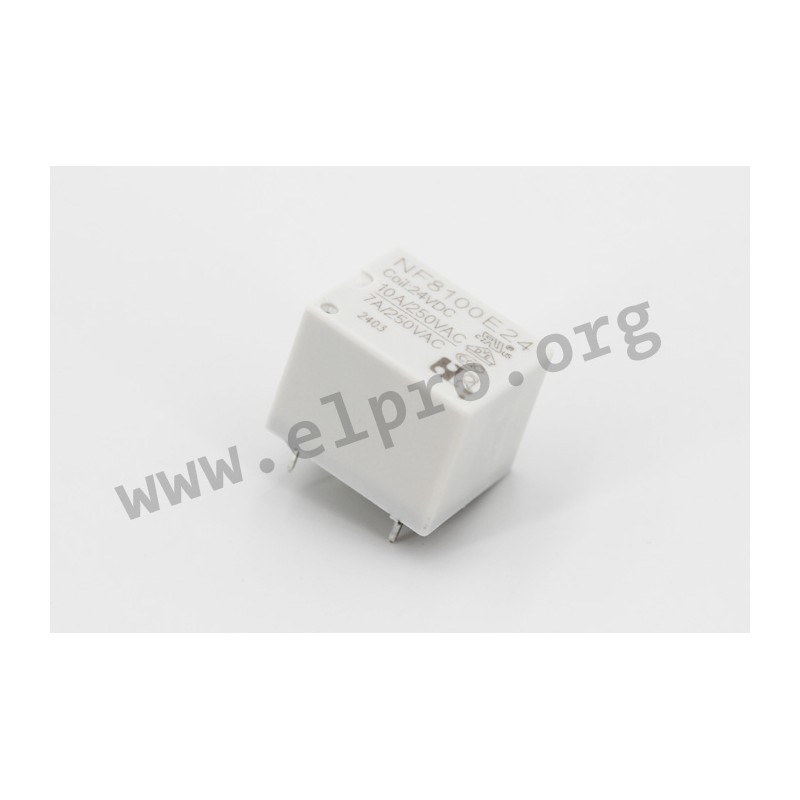

NF PCB relay series NF8

These sugar cube relays have a universal terminal footprint, they have a UL isolationsystem of the class F, as well as they conform with the environmental prottection RTII. These relays are suitable for temperatures oif up to 105°C, they belong to the material group of insulation parts IIIa, and fit into the over voltage category II. We offer the following types of this NF series: NF8-100E12, NF8-1001E24, NF8-001E12 und NF8-001E24..

  • maximal switching current: 12A
  • maximal switching voltage: 110V DC / 400V AC
  • contact type: 1x changeover (NF8-001_), 1x normally open contact (NF8-100_)
  • contact material: Ag alloy
  • contact resistance: 100mOhm
  • air / creepage distance: 1,8 / 1,5mm
  • operate / drop out time: 10 / 5ms
  • test voltage: 750V (inductor / contact), 1000V (open contact)
  • endurance: 107 (mechanical), 106 (electrical)
  • operating temperature: -40 to +105°C
  • weight: 9,4g
  • dimensions: 19,5x15,6x15,3mm
NF8-001E24, NF PCB relays, 10A, 1 changeover or 1 normally open contact, NF8 series

NF8-001E24

246907 NF8-001E24 NF8-001E24 NF PCB relay series NF8. These sugar cube relays have a universal terminal footprint, they have a UL isolationsystem of the class F, as well as they conform with the environmental prottection RTII. These relays are suitable for temperatures oif up to 105°C, they belong to the material group of insulation parts IIIa, and fit into the over voltage category II. We offer the following types of this NF series: NF8-100E12, NF8-1001E24, NF8-001E12 und NF8-001E24.. maximal switching current: 12A maximal switching voltage: 110V DC / 400V AC contact type: 1x changeover (NF8-001_), 1x normally open contact (NF8-100_) contact material: Ag alloy contact resistance: 100mOhm air / creepage distance: 1,8 / 1,5mm operate / drop out time: 10 / 5ms test voltage: 750V (inductor / contact), 1000V (open contact) endurance: 107 (mechanical), 106 (electrical) operating temperature: -40 to +105°C weight: 9,4g dimensions: 19,5x15,6x15,3mm

Specifications

manufacturer
Manufacturer's name NF8-001E24
Nominal voltage [V DC] 24
Coil resistance [Ω] 1600
Max. operating voltage [V DC] 40,8
Response voltage [V] 18
Nominal capacity [mW] 360
Data Sheet

Unit price

0,448 €

Stock: 442
Further delivery:
CW 14/2025

Minimum order quantity 10 units or
multiples of 10.
