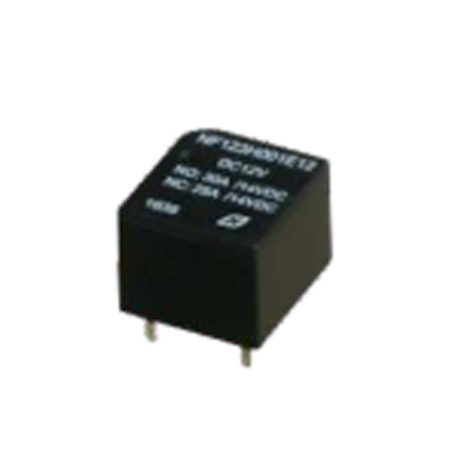

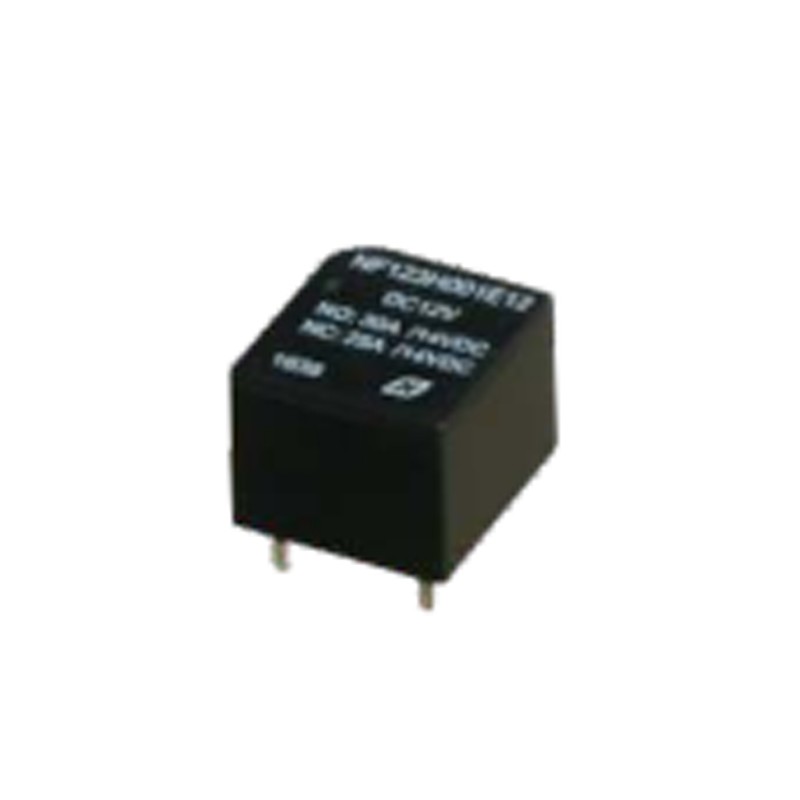

NF123H-001E24S

NF PCB relay series NF123H

These relays have a high temperature resistance (up to 105°C and they ar suitable for automobile and lamp accessories application. Despite their small size and low weight they have a heavy contact load switching current of up to 30A. We offer the following types of this NF series: NF123H-001E12S and NF123H-001E24S.
  • maximal switching current: 30A
  • maximal switching voltage: 24V DC
  • maximal switching power: 420W
  • contact type: 1x changeover
  • contact material: AgSnO
  • contact resistance: 1000mOhm
  • operate / drop out time: 4 / 1,5ms
  • test voltage: 500V (inductor / contact), 500V (contact / contact)
  • endurance: 107 (mechanical), 105 (electrical)
  • operating temperature: -40 to +105°C
  • weight: 4g
  • dimensions: 12x13x9,9mm
NF123H-001E24S, NF PCB relays, 30A, 1x changeover contact , NF123H series

NF123H-001E24S

246915 NF123H-001E24S NF123H-001E24S NF PCB relay series NF123H. These relays have a high temperature resistance (up to 105°C and they ar suitable for automobile and lamp accessories application. Despite their small size and low weight they have a heavy contact load switching current of up to 30A. We offer the following types of this NF series: NF123H-001E12S and NF123H-001E24S. maximal switching current: 30A maximal switching voltage: 24V DC maximal switching power: 420W contact type: 1x changeover contact material: AgSnO contact resistance: 1000mOhm operate / drop out time: 4 / 1,5ms test voltage: 500V (inductor / contact), 500V (contact / contact) endurance: 107 (mechanical), 105 (electrical) operating temperature: -40 to +105°C weight: 4g dimensions: 12x13x9,9mm

Specifications

manufacturer
Manufacturer's name NF123H-001E24S
Nominal voltage [V DC] 24
Coil resistance [Ω] 1010
Max. operating voltage [V DC] 28,8
Response voltage [V] 13,8
Nominal capacity [mW] 570
Data Sheet

Unit price

0,851 €

Stock: 0
Next incoming goods:
CW 38/2024
500 units

Further delivery:
CW 03/2025

Minimum order quantity 10 units or
multiples of 10.
