NF120-001E12S

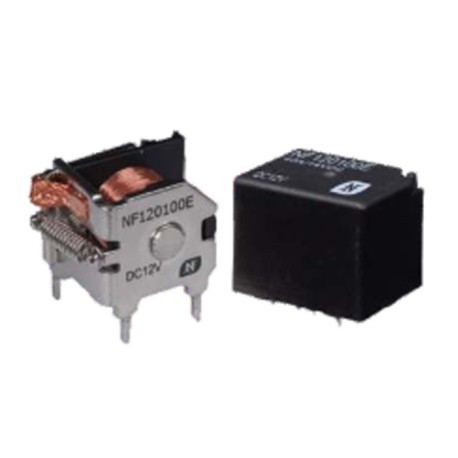

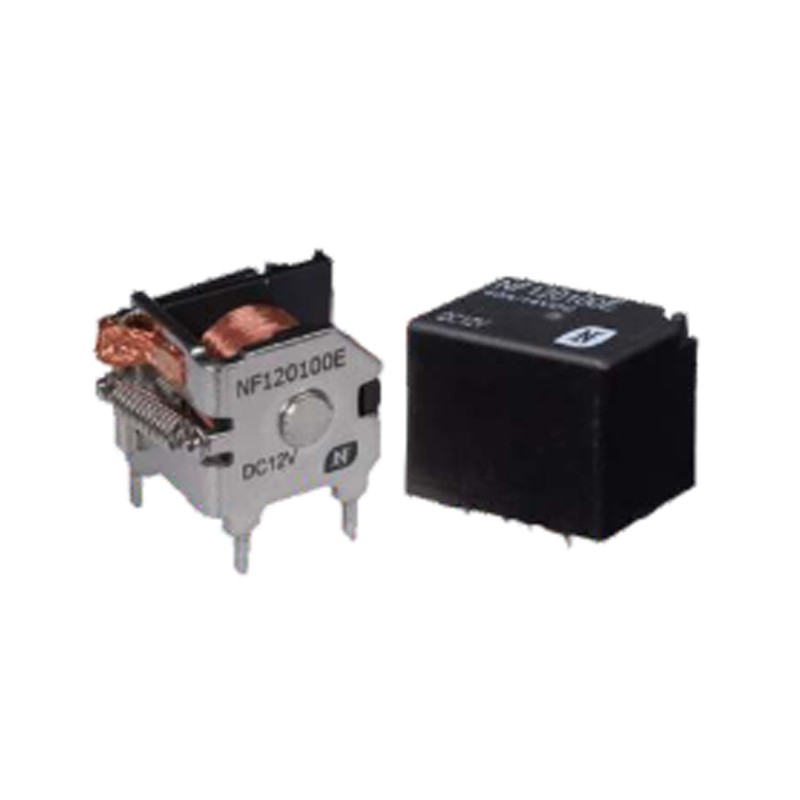

NF PCB relay series NF120

These sealed relays are  suitable for PC board mounting. Despite their small size they can resist a high current of up to 40A at  14V DC. We offer the following types of this NF series: NF120-001E12S and NF120-001E24S.
  • maximal switching current: 40A
  • maximal switching voltage: 75V DC / 380V AC
  • maximal switching power: 630W / 2400VA
  • contact type: 1x changeover
  • contact material: AgSnO
  • contact resistance: 30mOhm
  • operate / drop out time: 5/3ms
  • test voltage: 750V (inductor / contact), 500V (contact / contact)
  • endurance: 107 (mechanical), 105 (electrical)
  • operating temperature: -40 to +125°C
  • weight: 21g
  • dimensions: 26,8x21,5x22,3mm
NF120-001E12S, NF PCB relays, 40A, 1x changeover contact , NF120 series

NF120-001E12S

246916 NF120-001E12S NF120-001E12S NF PCB relay series NF120. These sealed relays are  suitable for PC board mounting. Despite their small size they can resist a high current of up to 40A at  14V DC. We offer the following types of this NF series: NF120-001E12S and NF120-001E24S. maximal switching current: 40A maximal switching voltage: 75V DC / 380V AC maximal switching power: 630W / 2400VA contact type: 1x changeover contact material: AgSnO contact resistance: 30mOhm operate / drop out time: 5/3ms test voltage: 750V (inductor / contact), 500V (contact / contact) endurance: 107 (mechanical), 105 (electrical) operating temperature: -40 to +125°C weight: 21g dimensions: 26,8x21,5x22,3mm

Specifications

manufacturer
Manufacturer's name NF120-001E12S
Nominal voltage [V DC] 12
Coil resistance [Ω] 90
Max. operating voltage [V DC] 15,6
Response voltage [V] 8,4
Nominal capacity [mW] 1600
Data Sheet

Unit price

1,12 €

Stock: 0
Next incoming goods:
CW 38/2024
200 units

Further delivery:
CW 03/2025

Minimum order quantity 10 units or
multiples of 10.
