44235

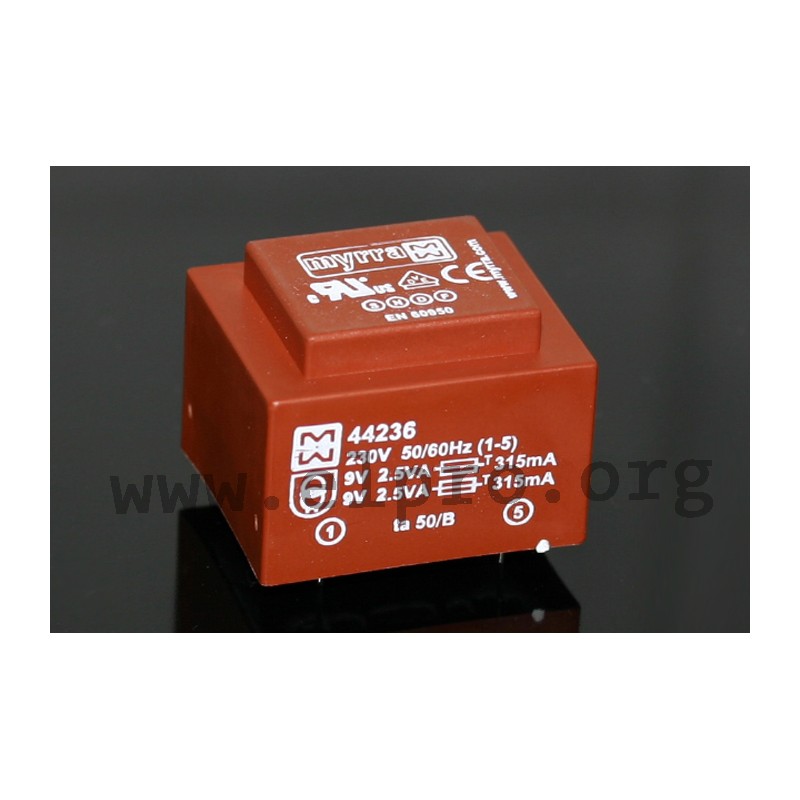

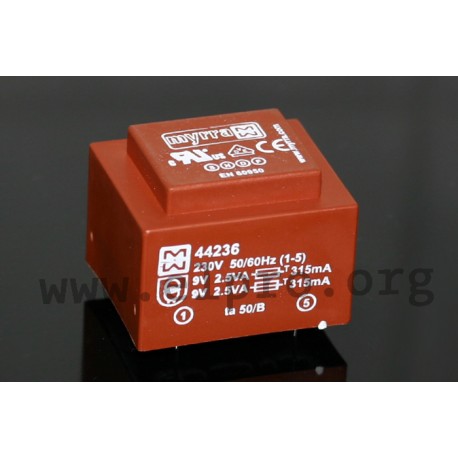

Myrra PCB transformers

Transformers with 5VA and an EI42 core. These devices are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44229, 44230, 44231, 44232, 44233, 44234, 44235, 44236, 44237 and 44238.

  • core: EI 42
  • output: 5VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 50/B
  • recommended fuse: 32mA (external, time lag)
  • test voltage: 4kV
442_

44235

29210 44235 44235 Myrra PCB transformers. Transformers with 5VA and an EI42 core. These devices are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44229, 44230, 44231, 44232, 44233, 44234, 44235, 44236, 44237 and 44238. core: EI 42 output: 5VA input voltage: 230V AC (50/60Hz) temperature class: Ta 50/B recommended fuse: 32mA (external, time lag) test voltage: 4kV

Specifications

manufacturer
Manufacturer's name 44235
Secondary voltage [V] 2x6
Secondary current [A] 2x0,417
Data Sheet

Unit price

3,39 €

Stock: 280
Further delivery:
CW 13/2025
