44194

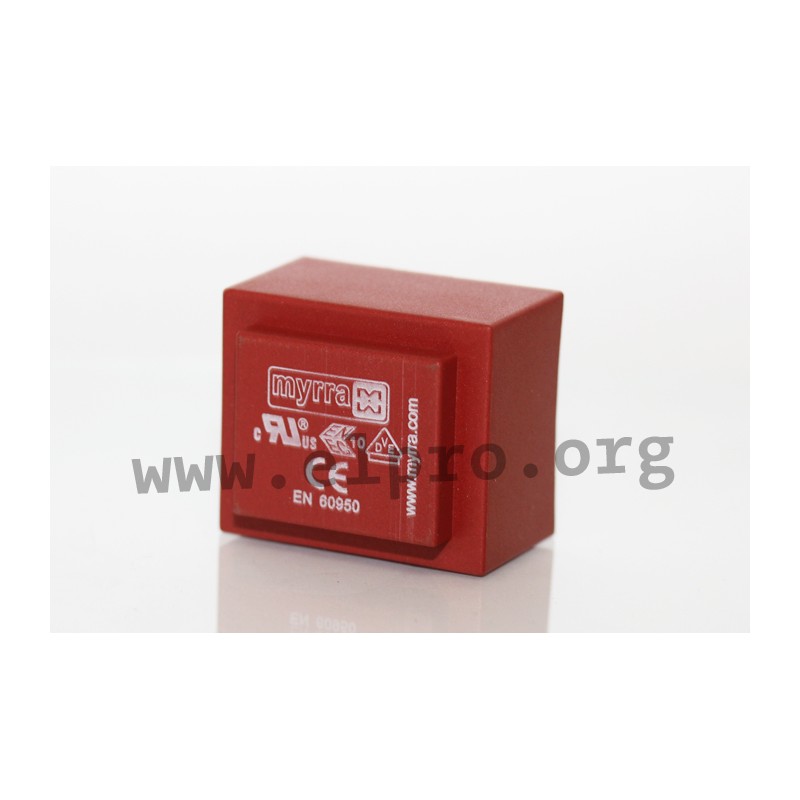

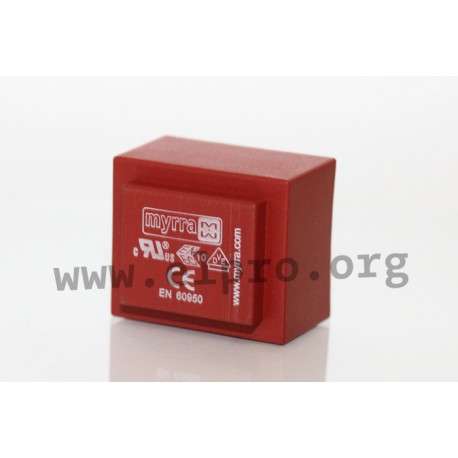

Myrra PCB transformers

Transformers with 3,2VA and an EI38 core. These devices are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 70/B as well as EN61558-1. We offer the following types of this Myrra series: 44193, 44194, 44195, 44196, 44197, 44198, 44475, 44200, 44201 and 44202.

  • core: EI 38
  • output: 3,2VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • recommended fuse: 32mA (external, time-lag)
  • test voltage: 4kV
44194

44194

29195 44194 44194 Myrra PCB transformers. Transformers with 3,2VA and an EI38 core. These devices are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 70/B as well as EN61558-1. We offer the following types of this Myrra series: 44193, 44194, 44195, 44196, 44197, 44198, 44475, 44200, 44201 and 44202. core: EI 38 output: 3,2VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B recommended fuse: 32mA (external, time-lag) test voltage: 4kV

Specifications

manufacturer
Manufacturer's name 44194
Secondary voltage [V] 9
Secondary current [A] 0,356
Data Sheet

Unit price

2,99 €

Stock: 815
Next incoming goods:
CW 02/2025
120 units

Further delivery:
CW 12/2025
