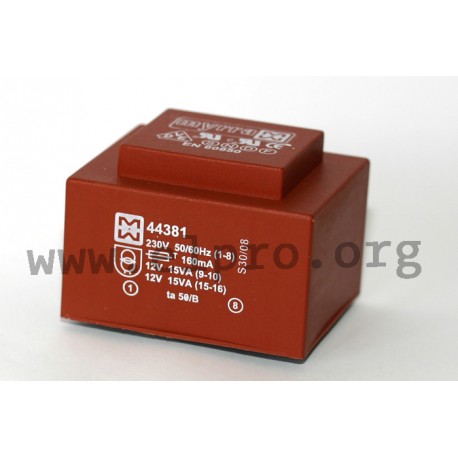

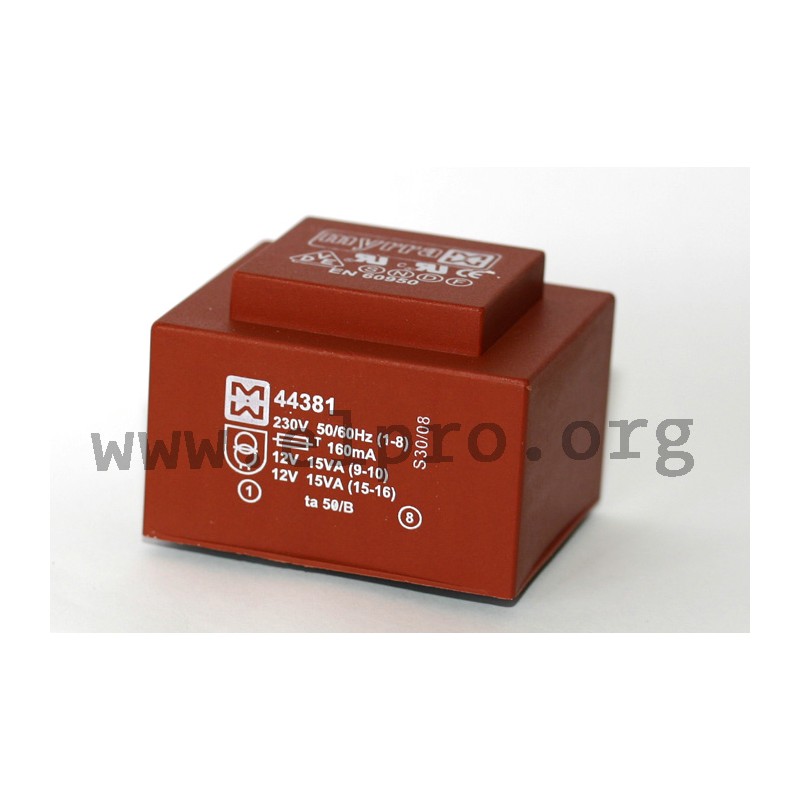

44381

Myrra PCB transformers

Transformers with an EI66 core and 30VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44380 and 44381.

  • core: EI66
  • output: 30VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 50/B
  • test voltage: 4kV
  • recommended fuse: 160mA (external/time lag)
44381

44381

29271 44381 44381 Myrra PCB transformers. Transformers with an EI66 core and 30VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44380 and 44381. core: EI66 output: 30VA input voltage: 230V AC (50/60Hz) temperature class: Ta 50/B test voltage: 4kV recommended fuse: 160mA (external/time lag)

Specifications

manufacturer
Manufacturer's name 44381
Secondary voltage [V] 2x12
Secondary current [A] 2x1,25
Data Sheet

Unit price

9,49 €

Stock: 57
Further delivery:
CW 17/2025
