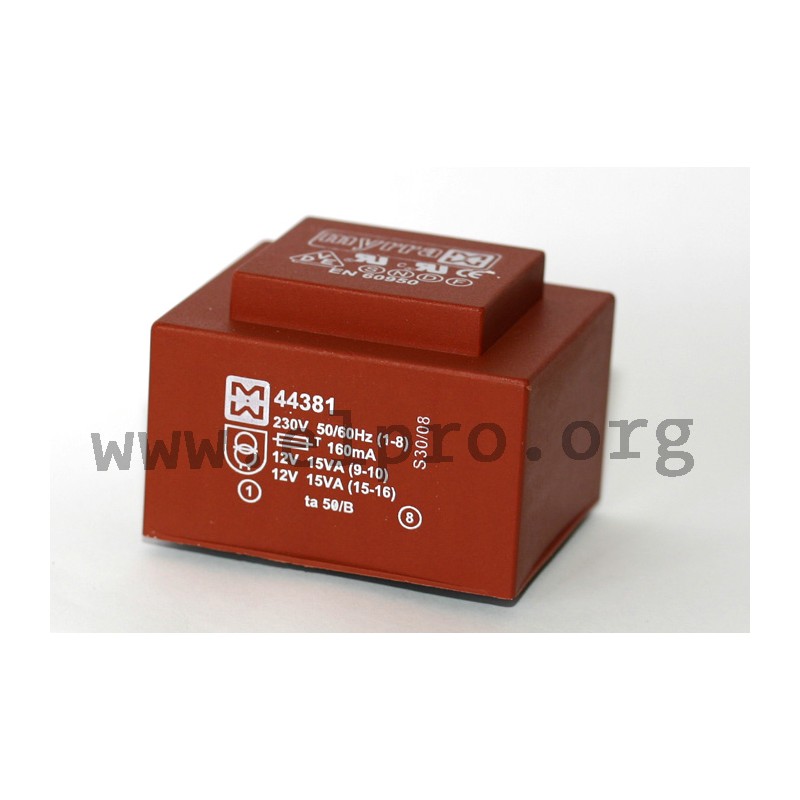

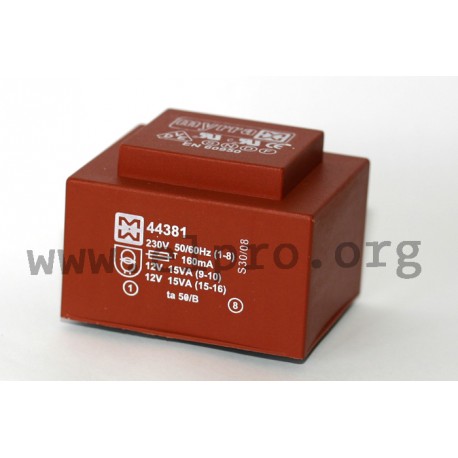

Myrra PCB transformers

Transformers with an EI66 core and 30VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44380 and 44381.

  • core: EI66
  • output: 30VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 50/B
  • test voltage: 4kV
  • recommended fuse: 160mA (external/time lag)
443_

44380

29270 44380 44380 Myrra PCB transformers. Transformers with an EI66 core and 30VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44380 and 44381. core: EI66 output: 30VA input voltage: 230V AC (50/60Hz) temperature class: Ta 50/B test voltage: 4kV recommended fuse: 160mA (external/time lag)

Specifications

manufacturer
Manufacturer's name 44380
Secondary voltage [V] 2x9
Secondary current [A] 2x1,667
Data Sheet

Unit price

9,49 €

Stock: 188
Further delivery:
CW 17/2025
