44124

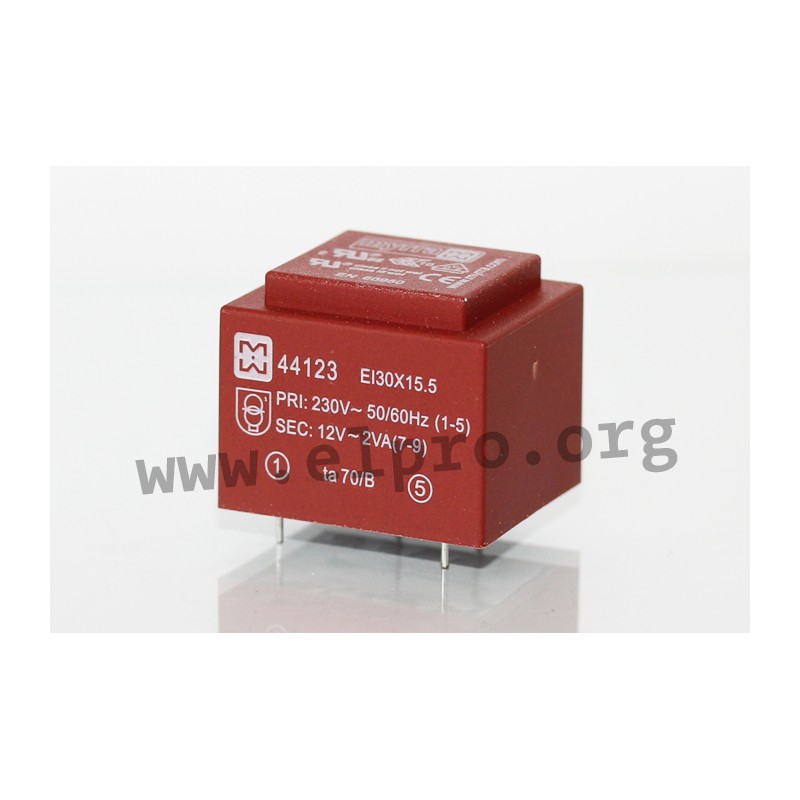

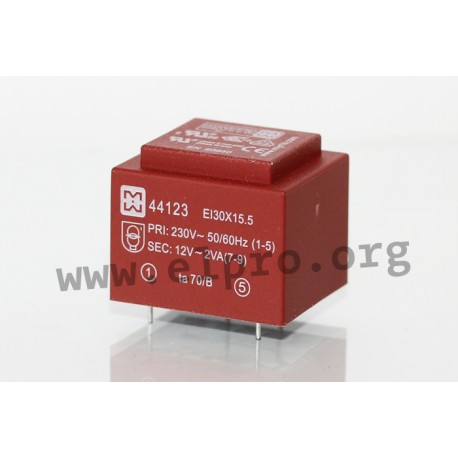

Myrra PCB transformers

Transformers with 2VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-6 and EN60950. We offer the following types of this Myrra series: 44121, 44122, 44123, 44124, 44125 and 44126.

  • core: EI 30
  • output: 2VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • test voltage: 4kV
441_

44124

44191 44124 44124 Myrra PCB transformers. Transformers with 2VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-6 and EN60950. We offer the following types of this Myrra series: 44121, 44122, 44123, 44124, 44125 and 44126. core: EI 30 output: 2VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B test voltage: 4kV

Specifications

manufacturer
Manufacturer's name 44124
Secondary current [mA] 133
Secondary voltage [V] 15
Data Sheet

Unit price

1,95 €

Stock: 138
Further delivery:
CW 12/2025
