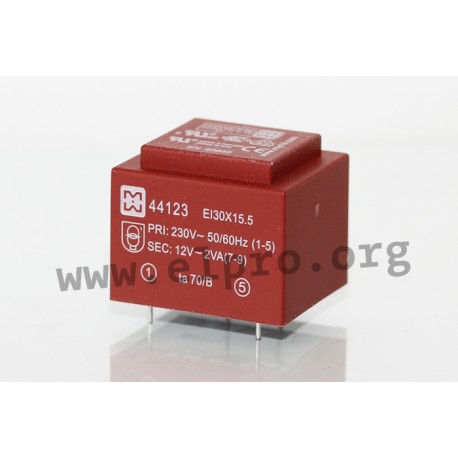

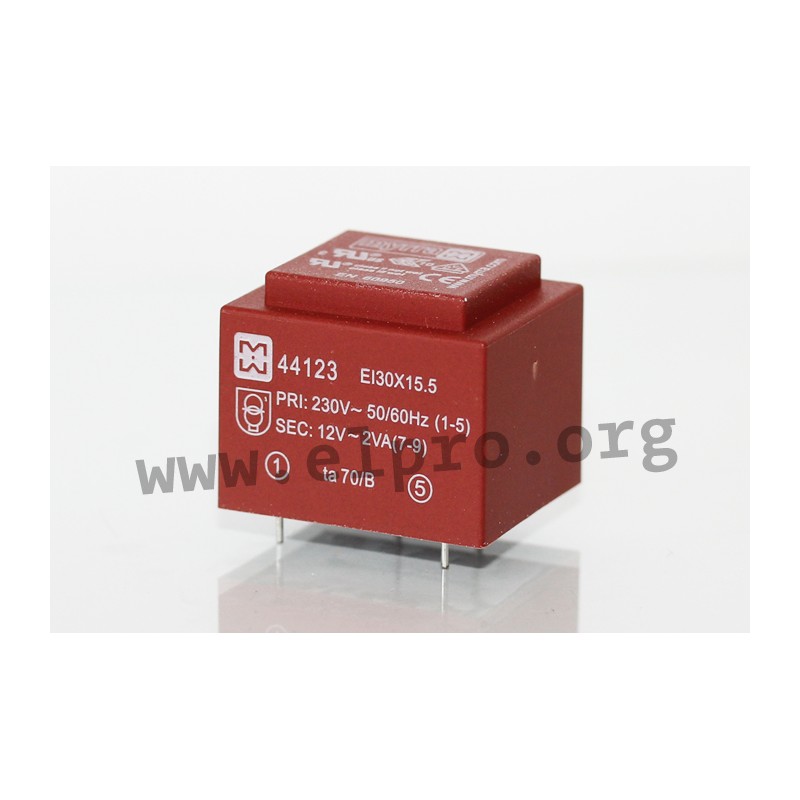

Myrra PCB transformers

Transformers with 2VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-6 and EN60950. We offer the following types of this Myrra series: 44121, 44122, 44123, 44124, 44125 and 44126.

  • core: EI 30
  • output: 2VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • test voltage: 4kV
44123

44123

44190 44123 44123 Myrra PCB transformers. Transformers with 2VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-6 and EN60950. We offer the following types of this Myrra series: 44121, 44122, 44123, 44124, 44125 and 44126. core: EI 30 output: 2VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B test voltage: 4kV

Specifications

manufacturer
Manufacturer's name 44123
Secondary current [mA] 167
Secondary voltage [V] 12
Data Sheet

Unit price

1,95 €

Stock: 207
Next incoming goods:
CW 07/2025
75 units

Further delivery:
CW 12/2025
