44703

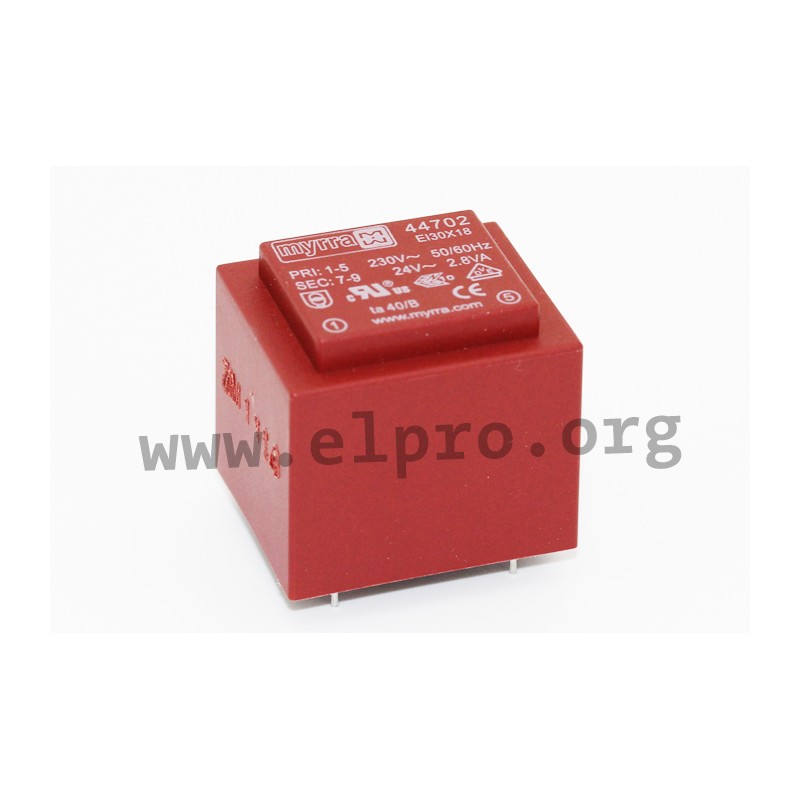

Myrra PCB transformers

Transformers with 2,8VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-6 and EN60950. We offer the following types of this Myrra series: 44697, 44698, 44699, 44700, 44701, 44702, 44703, 44704, 44705 and 4706.

  • core: EI 30
  • output: 2,8VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • test voltage: 4kV
44703, print transformers, 2.8VA

44703

112700 44703 44703 Myrra PCB transformers. Transformers with 2,8VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-6 and EN60950. We offer the following types of this Myrra series: 44697, 44698, 44699, 44700, 44701, 44702, 44703, 44704, 44705 and 4706. core: EI 30 output: 2,8VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B test voltage: 4kV

Specifications

manufacturer
Manufacturer's name 44703
Secondary current [mA] 2x467
Secondary voltage [V] 2x6
Data Sheet

Unit price

2,09 €

Stock: 20
Further delivery:
CW 12/2025
