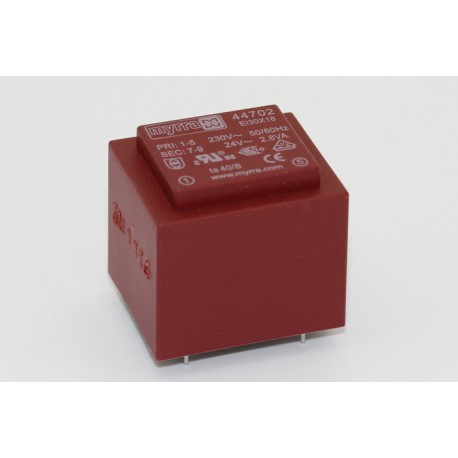

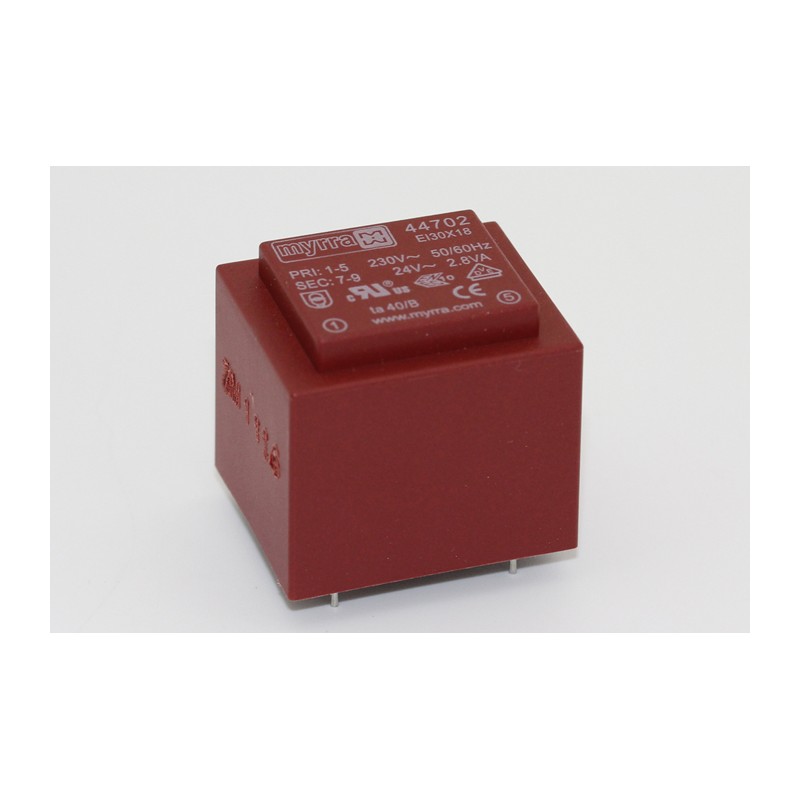

Myrra PCB transformers

Transformers with 2,8VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-6 and EN60950. We offer the following types of this Myrra series: 44697, 44698, 44699, 44700, 44701, 44702, 44703, 44704, 44705 and 4706.

  • core: EI 30
  • output: 2,8VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • test voltage: 4kV
44702, Myrra PCB transformers, 2,8VA, EI 30

44702

112699 44702 44702 Myrra PCB transformers. Transformers with 2,8VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-6 and EN60950. We offer the following types of this Myrra series: 44697, 44698, 44699, 44700, 44701, 44702, 44703, 44704, 44705 and 4706. core: EI 30 output: 2,8VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B test voltage: 4kV

Specifications

manufacturer
Manufacturer's name 44702
Secondary current [mA] 117
Secondary voltage [V] 24
Data Sheet

Unit price

2,09 €

Stock: 73
Further delivery:
CW 12/2025
