44161

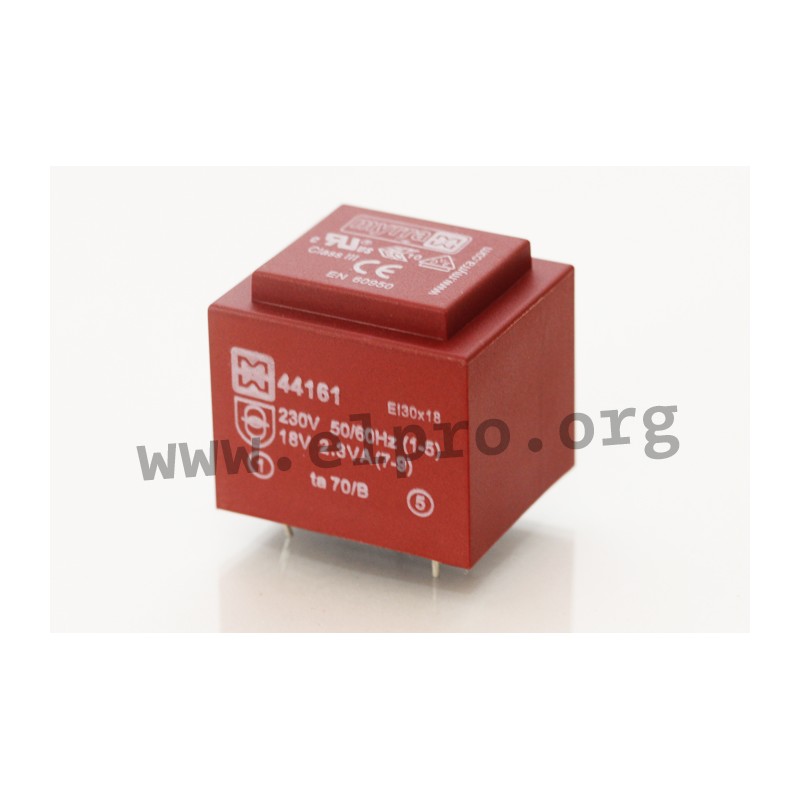

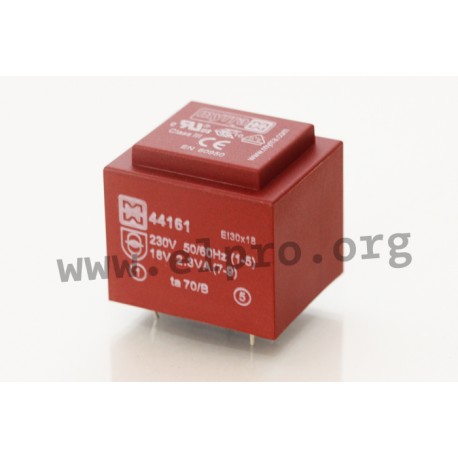

Myrra PCB transformers

Transformers with 2,3VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-16 and EN60950. We offer the following types of this Myrra series: 44157, 44158, 44159, 44160, 44161 and 44162.

  • core: EI 30
  • output: 2,3VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • test voltage: 4kV
44161

44161

44198 44161 44161 Myrra PCB transformers. Transformers with 2,3VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-16 and EN60950. We offer the following types of this Myrra series: 44157, 44158, 44159, 44160, 44161 and 44162. core: EI 30 output: 2,3VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B test voltage: 4kV

Specifications

manufacturer
Manufacturer's name 44161
Secondary current [mA] 128
Secondary voltage [V] 18
Data Sheet

Unit price

1,95 €

Stock: 238
Further delivery:
CW 13/2025
