44158

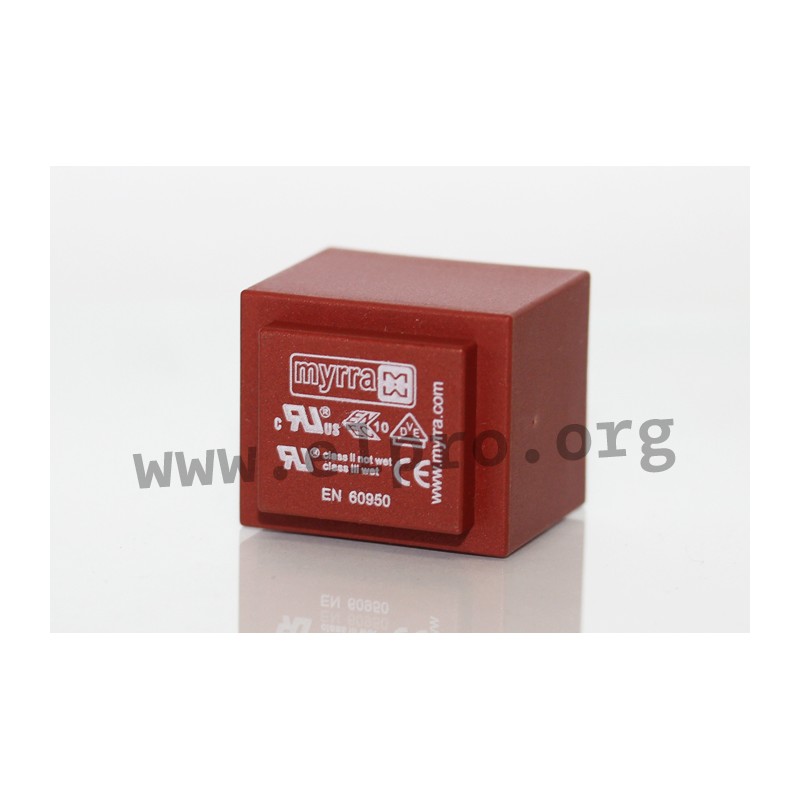

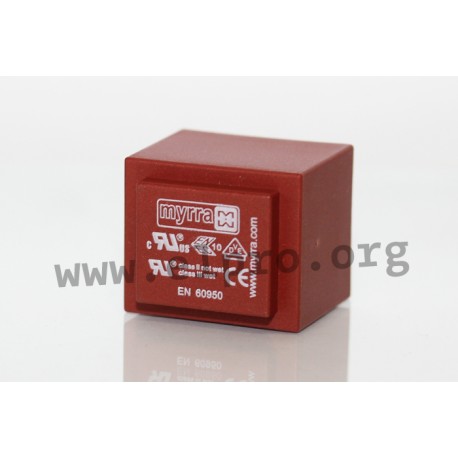

Myrra PCB transformers

Transformers with 2,3VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-16 and EN60950. We offer the following types of this Myrra series: 44157, 44158, 44159, 44160, 44161 and 44162.

  • core: EI 30
  • output: 2,3VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/B
  • test voltage: 4kV
44158

44158

44195 44158 44158 Myrra PCB transformers. Transformers with 2,3VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-16 and EN60950. We offer the following types of this Myrra series: 44157, 44158, 44159, 44160, 44161 and 44162. core: EI 30 output: 2,3VA input voltage: 230V AC (50/60Hz) temperature class: Ta 70/B test voltage: 4kV

Specifications

manufacturer
Manufacturer's name 44158
Secondary current [mA] 256
Secondary voltage [V] 9
Data Sheet

Unit price

1,95 €

Stock: 368
Further delivery:
CW 13/2025
