44440

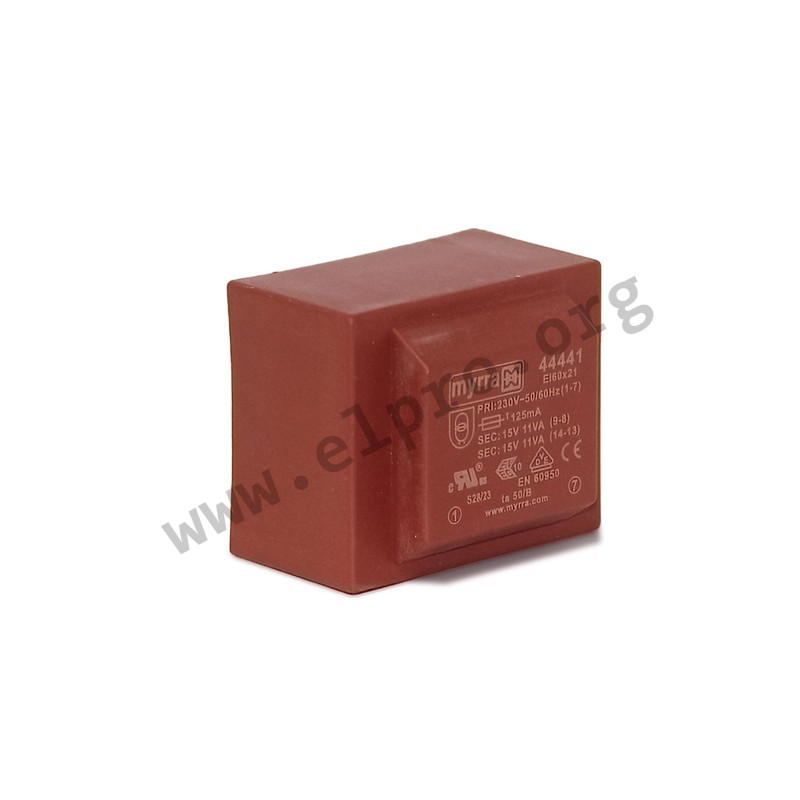

Myrra PCB transformers

Transformers with an EI 60 core and 22VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44440 and 44441.

  • core: EI 60
  • output: 22VA
  • input voltage: 230V (50/60Hz)
  • temperature class: Ta 50/B
  • test voltage: 4kV
  • recommended fuse: 125mA (external/time lag)

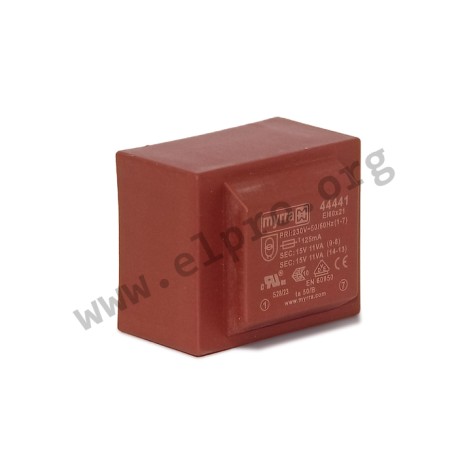

44440, Myrra PCB transformers, 22VA, EI 60

44440

29259 44440 44440 Myrra PCB transformers. Transformers with an EI 60 core and 22VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44440 and 44441. core: EI 60 output: 22VA input voltage: 230V (50/60Hz) temperature class: Ta 50/B test voltage: 4kV recommended fuse: 125mA (external/time lag)

Specifications

manufacturer
Manufacturer's name 44440
Secondary voltage [V] 2x12
Secondary current [A] 2x0,917
Data Sheet

Unit price

7,69 €

Stock: 70
Further delivery:
CW 17/2025
