44302

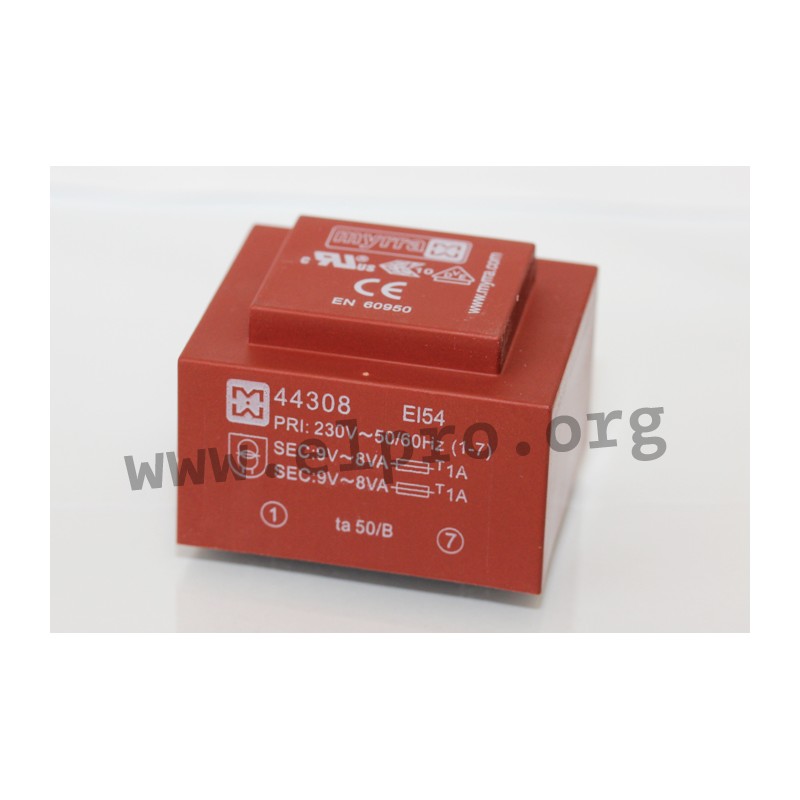

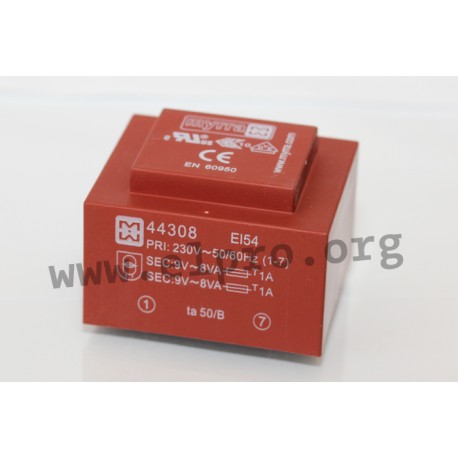

Myrra PCB transformers

Transformers with an EI54 core and 16VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44301, 44302, 44303, 44304, 44305, 44306, 44308, 44309, 44310 and 44311.

  • core: EI 54
  • output: 16VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 50/B
  • test voltage: 4kV
  • recommended fuse: 80mA (external/time lag)
443_

44302

29243 44302 44302 Myrra PCB transformers. Transformers with an EI54 core and 16VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44301, 44302, 44303, 44304, 44305, 44306, 44308, 44309, 44310 and 44311. core: EI 54 output: 16VA input voltage: 230V AC (50/60Hz) temperature class: Ta 50/B test voltage: 4kV recommended fuse: 80mA (external/time lag)

Specifications

manufacturer
Manufacturer's name 44302
Secondary voltage [V] 9
Secondary current [A] 1,778
Data Sheet

Unit price

6,09 €

Stock: 451
Further delivery:
CW 17/2025
