44086

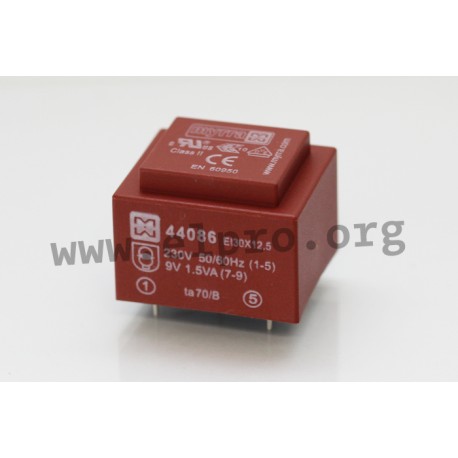

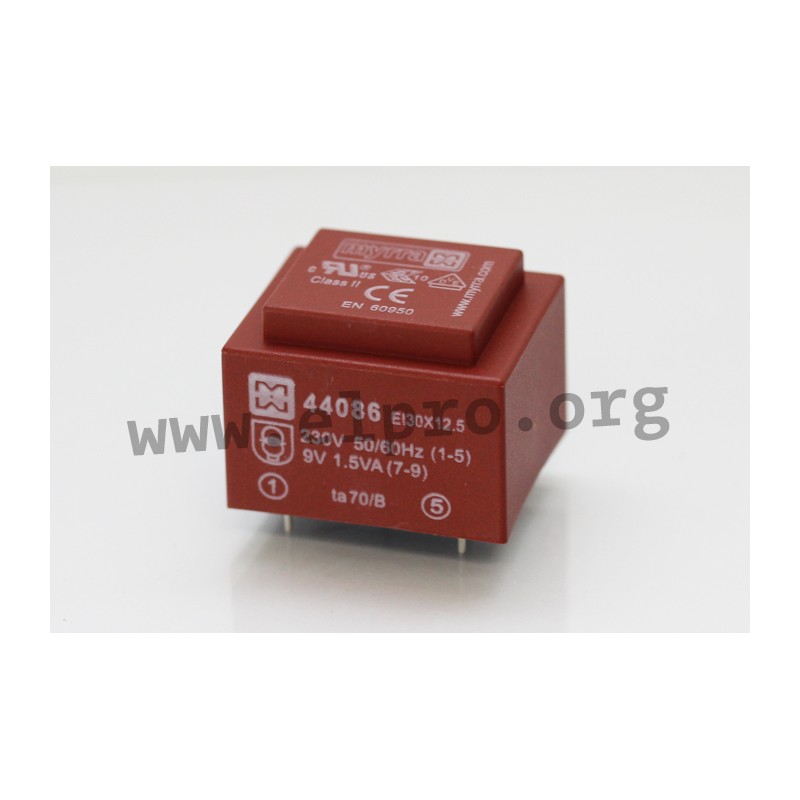

Myrra PCB transformers

Transformers with 1,5VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-6 and EN60950. We offer the following types of this Myrra series: 44085, 44086, 44087, 44088, 44089 and 44090.

  • core: EI 30
  • output: 1,5VA
  • input voltage: 230V (50/60Hz)
  • temperature class: Ta 70/B
  • test voltage: 4kV
44086

44086

44201 44086 44086 Myrra PCB transformers. Transformers with 1,5VA and an EI30 core. These devices are short circuit proof and suitable for PCB mounting. They comply with temperature resistance class Ta 70/B as well as EN61558-2-6 and EN60950. We offer the following types of this Myrra series: 44085, 44086, 44087, 44088, 44089 and 44090. core: EI 30 output: 1,5VA input voltage: 230V (50/60Hz) temperature class: Ta 70/B test voltage: 4kV

Specifications

manufacturer
Manufacturer's name 44086
Secondary voltage [V] 9
Secondary current [A] 0,167
Data Sheet

Unit price

1,93 €

Stock: 240
Further delivery:
CW 50/2024
