44274

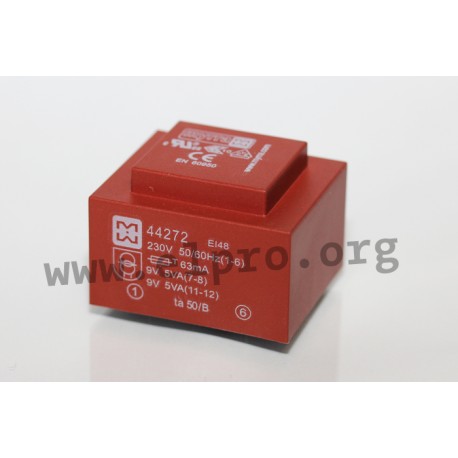

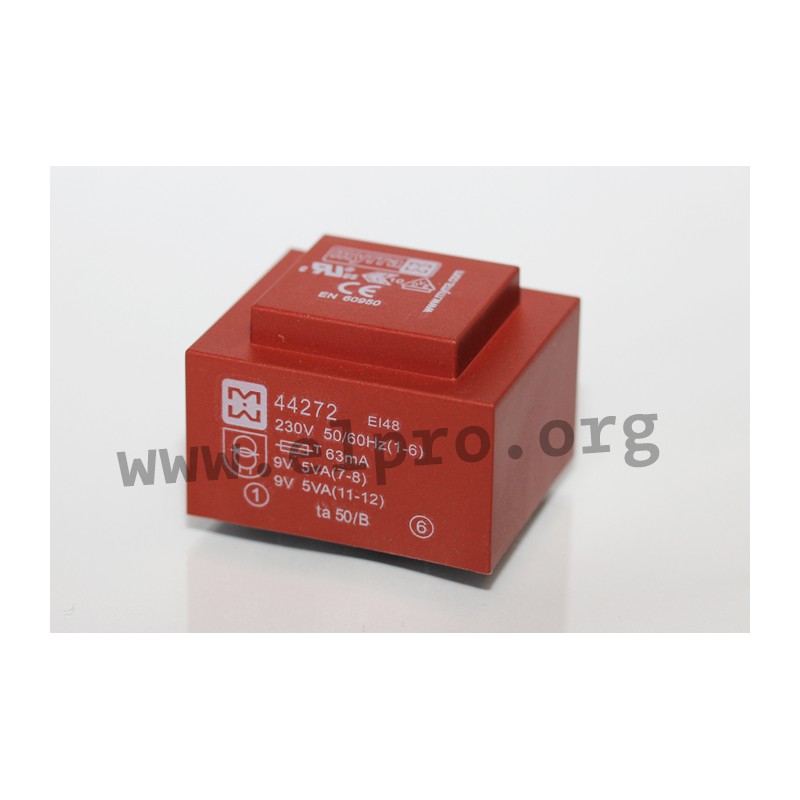

Myrra PCB transformers

Transformers with an EI 48 core and 10VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44265, 44266, 44267, 44268, 44269, 44270, 44272, 44273 and 44274.

  • core: EI 48
  • output: 10VA
  • input voltage: 230V AC (50/60Hz)
  • temperature: Ta 50/B
  • test voltage: 6kV
  • recommended fuse: 63mA (external, time lag)
4427_

44274

29229 44274 44274 Myrra PCB transformers. Transformers with an EI 48 core and 10VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44265, 44266, 44267, 44268, 44269, 44270, 44272, 44273 and 44274. core: EI 48 output: 10VA input voltage: 230V AC (50/60Hz) temperature: Ta 50/B test voltage: 6kV recommended fuse: 63mA (external, time lag)

Specifications

manufacturer
Manufacturer's name 44274
Secondary voltage [V] 2x15
Secondary current [A] 2x0,333
Data Sheet

Unit price

4,69 €

Stock: 210
Next incoming goods:
CW 06/2025
72 units

Further delivery:
CW 10/2025
