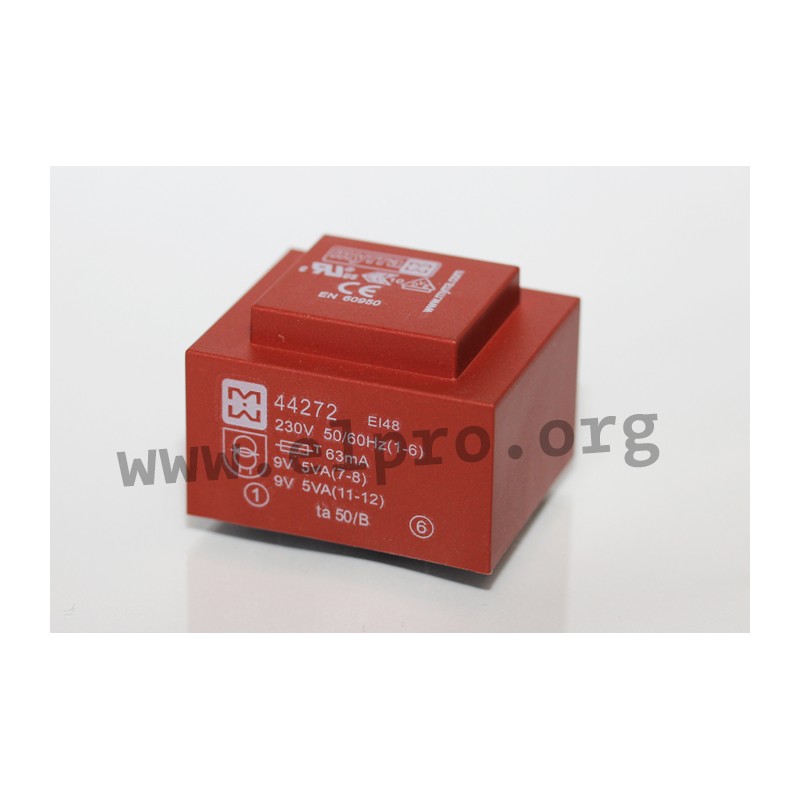

Myrra PCB transformers

Transformers with an EI 48 core and 10VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44265, 44266, 44267, 44268, 44269, 44270, 44272, 44273 and 44274.

  • core: EI 48
  • output: 10VA
  • input voltage: 230V AC (50/60Hz)
  • temperature: Ta 50/B
  • test voltage: 6kV
  • recommended fuse: 63mA (external, time lag)

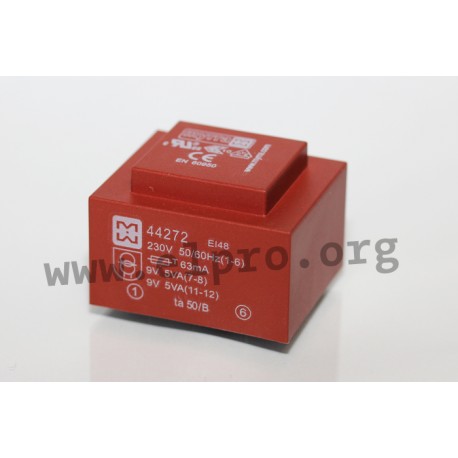

Myrra 44000 series

44268

29226 44268 44268 Myrra PCB transformers. Transformers with an EI 48 core and 10VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44265, 44266, 44267, 44268, 44269, 44270, 44272, 44273 and 44274. core: EI 48 output: 10VA input voltage: 230V AC (50/60Hz) temperature: Ta 50/B test voltage: 6kV recommended fuse: 63mA (external, time lag)

Specifications

manufacturer
Manufacturer's name 44268
Secondary voltage [V] 15
Secondary current [A] 0,667
Data Sheet

Unit price

4,79 €

Stock: 10
Next incoming goods:
CW 05/2025
36 units

Further delivery:
CW 17/2025
