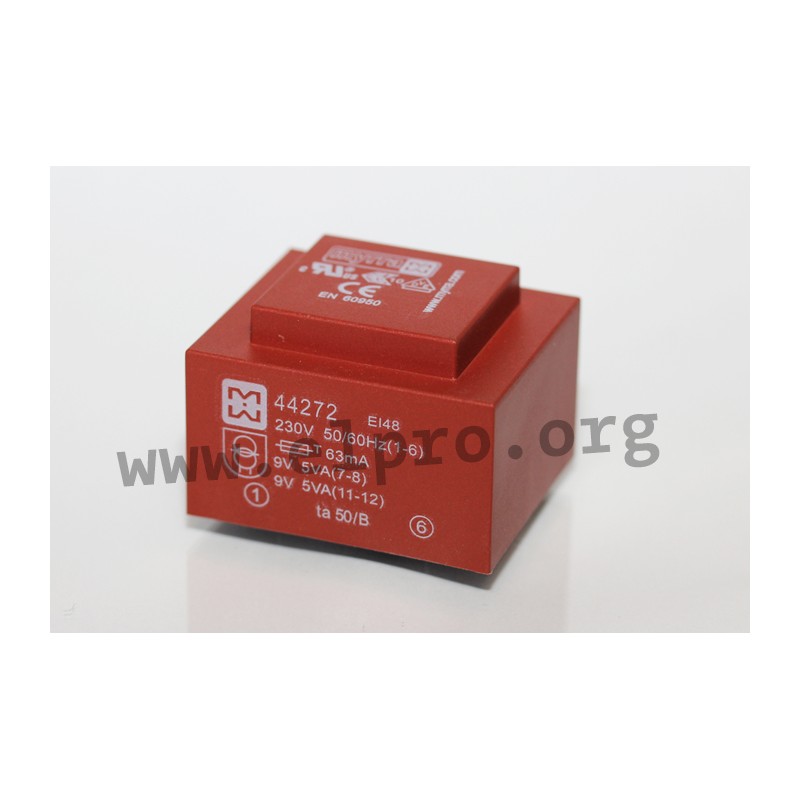

Myrra PCB transformers

Transformers with an EI 48 core and 10VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44265, 44266, 44267, 44268, 44269, 44270, 44272, 44273 and 44274.

  • core: EI 48
  • output: 10VA
  • input voltage: 230V AC (50/60Hz)
  • temperature: Ta 50/B
  • test voltage: 6kV
  • recommended fuse: 63mA (external, time lag)

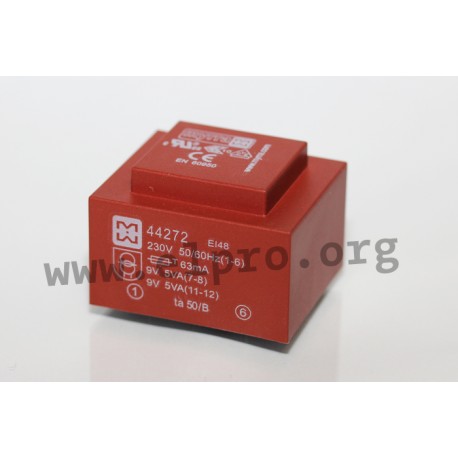

Myrra 44000 series

44265

112713 44265 44265 Myrra PCB transformers. Transformers with an EI 48 core and 10VA. These components are suitable for PCB mounting and are not short circuit proof. They comply with temperature resistance class Ta 50/B as well as EN61558-1. We offer the following types of this Myrra series: 44265, 44266, 44267, 44268, 44269, 44270, 44272, 44273 and 44274. core: EI 48 output: 10VA input voltage: 230V AC (50/60Hz) temperature: Ta 50/B test voltage: 6kV recommended fuse: 63mA (external, time lag)

Specifications

manufacturer
Manufacturer's name 44265
Secondary voltage [V] 6
Secondary current [A] 1,666
Data Sheet

Unit price

4,69 €

Stock: 35
Further delivery:
CW 12/2025
