48025

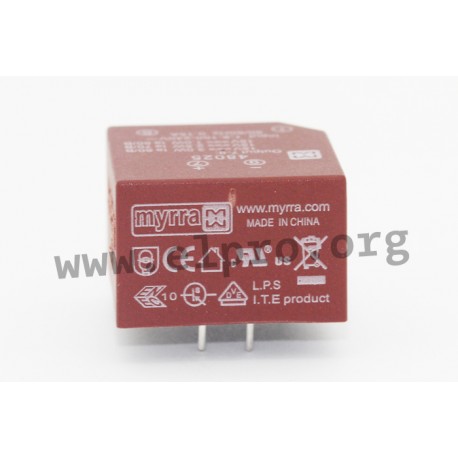

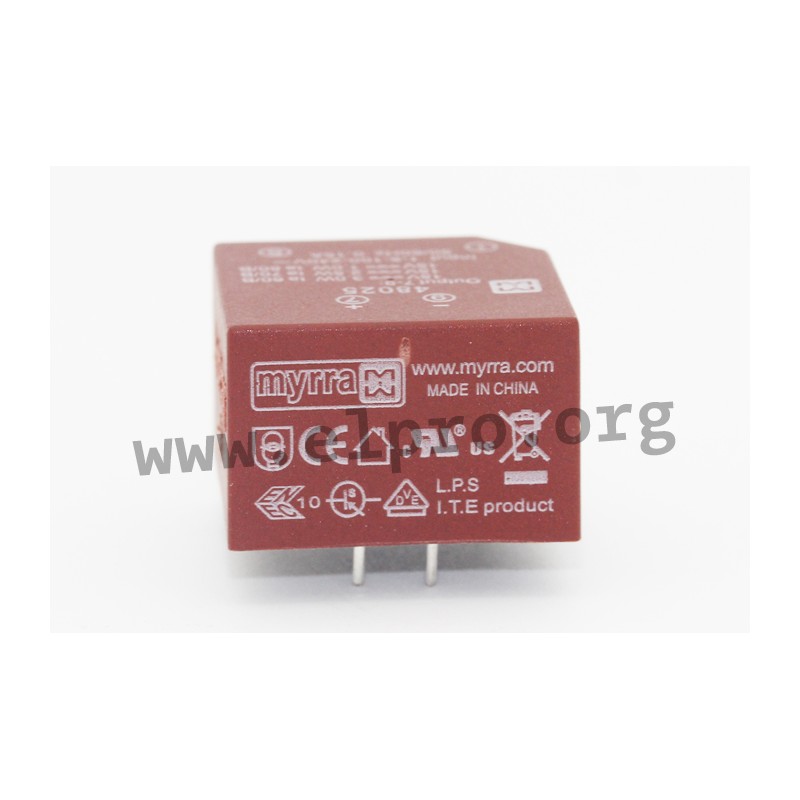

Myrra AC/DC converter series 48000

AC/DC converter modules in an enclosed housing with a universal input and a built-in circuit protection. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overtemperature as well as short circuit. We offer the following types of this Myrra series: 48021, 48022, 48023, 48024, 48025, 48026 and 48027.

  • single output
  • output: 2,75 to 3W
  • input voltage: 85 to 265V AC
  • maximal input inrush current: 30A
  • leakage current: <150mA
  • withstand voltage I/P-O/P: 4000V AC
  • insulation class: B
  • operating temperature 48021/48022: -25 to +50°C
  • operating temperature 48023/48024/48025/48026/48027: -25 to +60°C
48025

48025

109150 48025 48025 Myrra AC/DC converter series 48000. AC/DC converter modules in an enclosed housing with a&nbsp;universal input and a built-in&nbsp;circuit protection. These devices are suitable for PCB mounting and are protected against overload (auto recovery),&nbsp;overtemperature as well as short circuit. We offer the following types of this&nbsp;Myrra series:&nbsp;48021, 48022, 48023, 48024, 48025, 48026 and 48027. single output output: 2,75 to 3W input voltage: 85 to 265V AC maximal input inrush current: 30A leakage current: &lt;150mA withstand voltage I/P-O/P: 4000V AC insulation class: B operating temperature 48021/48022: -25 to +50&deg;C operating temperature 48023/48024/48025/48026/48027: -25 to +60&deg;C

Specifications

manufacturer
Manufacturer's name 48025
Output voltage [V] 15
Output current range [mA] 200
Output current tolerance [%] ±5
Efficiency [%] 72
Output power [W] 3
Data Sheet

Unit price

4,29 €

Stock: 0
Next incoming goods:
CW 05/2025
150 units

Further delivery:
CW 22/2025
