48022

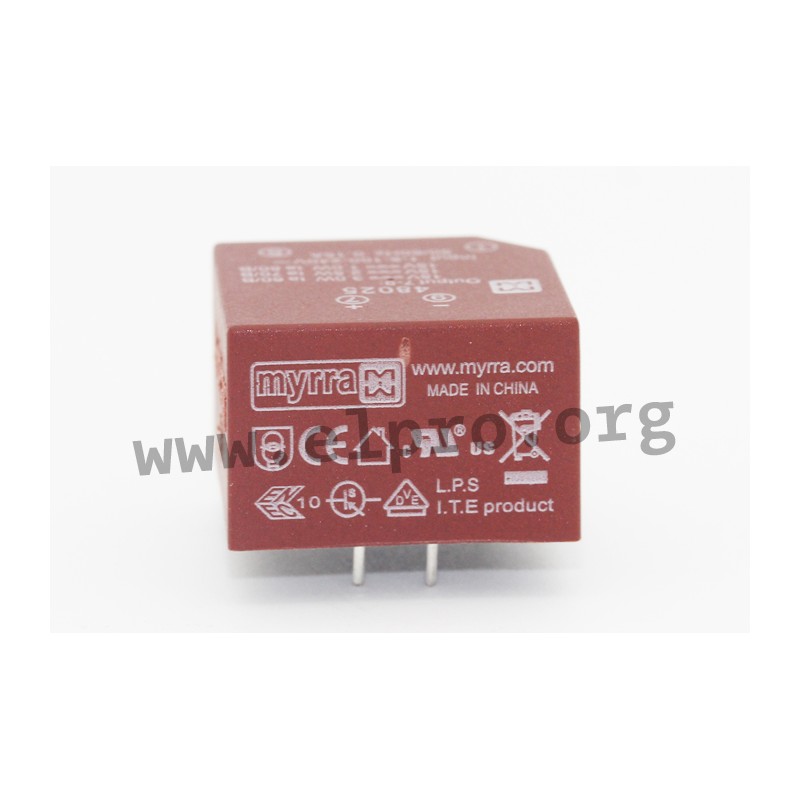

Myrra AC/DC converter series 48000

AC/DC converter modules in an enclosed housing with a universal input and a built-in circuit protection. These devices are suitable for PCB mounting and are protected against overload (auto recovery), overtemperature as well as short circuit. We offer the following types of this Myrra series: 48021, 48022, 48023, 48024, 48025, 48026 and 48027.

  • single output
  • output: 2,75 to 3W
  • input voltage: 85 to 265V AC
  • maximal input inrush current: 30A
  • leakage current: <150mA
  • withstand voltage I/P-O/P: 4000V AC
  • insulation class: B
  • operating temperature 48021/48022: -25 to +50°C
  • operating temperature 48023/48024/48025/48026/48027: -25 to +60°C

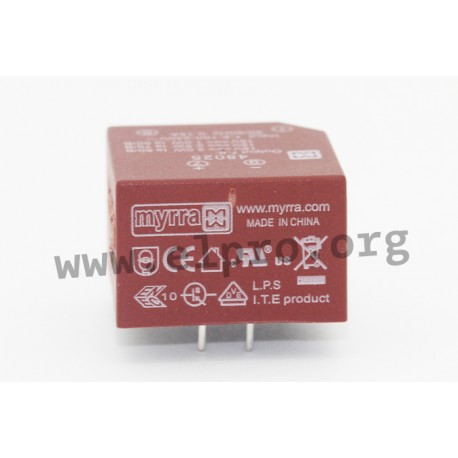

Myrra 480_ series

48022

109147 48022 48022 Myrra AC/DC converter series 48000. AC/DC converter modules in an enclosed housing with a&nbsp;universal input and a built-in&nbsp;circuit protection. These devices are suitable for PCB mounting and are protected against overload (auto recovery),&nbsp;overtemperature as well as short circuit. We offer the following types of this&nbsp;Myrra series:&nbsp;48021, 48022, 48023, 48024, 48025, 48026 and 48027. single output output: 2,75 to 3W input voltage: 85 to 265V AC maximal input inrush current: 30A leakage current: &lt;150mA withstand voltage I/P-O/P: 4000V AC insulation class: B operating temperature 48021/48022: -25 to +50&deg;C operating temperature 48023/48024/48025/48026/48027: -25 to +60&deg;C

Specifications

manufacturer
Manufacturer's name 48022
Output voltage [V] 5
Output current range [mA] 600
Efficiency [%] 65
Output voltage tolerance: [%] ±5
Output power [W] 3
Data Sheet

Unit price

4,29 €

Stock: 1333
Further delivery:
CW 22/2025
