> Power supplies>Power supplies>Switching power supplies, enclosed>Myrra AC/DC converters, 2,5 to 60W, PCB, 4700 series>47210

Manufacturers

47210

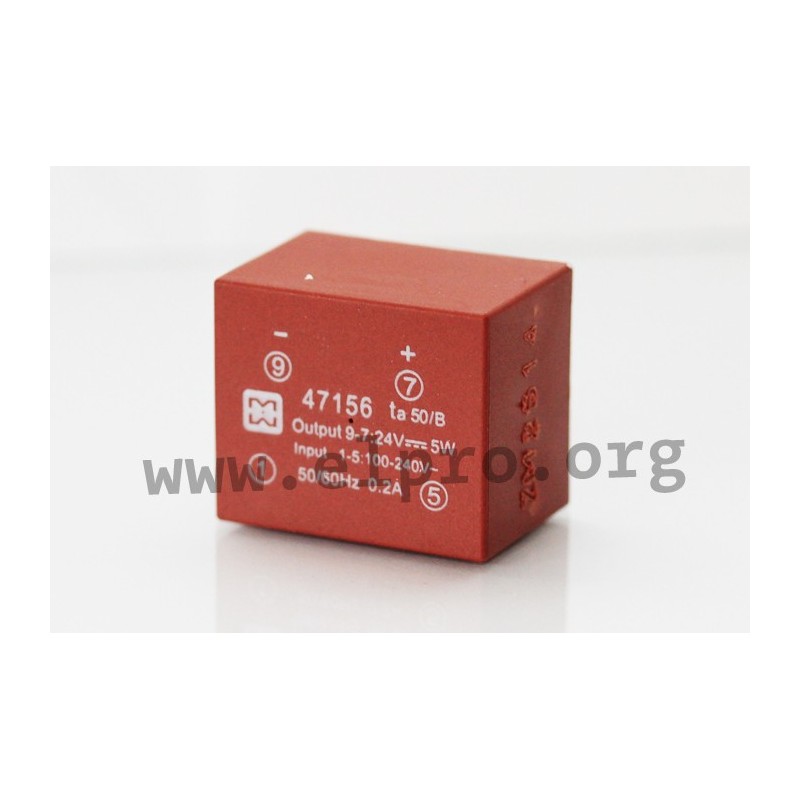

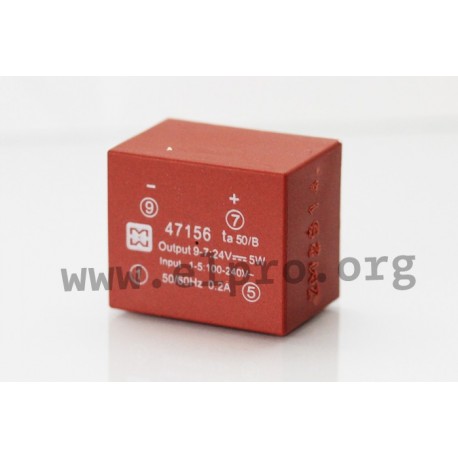

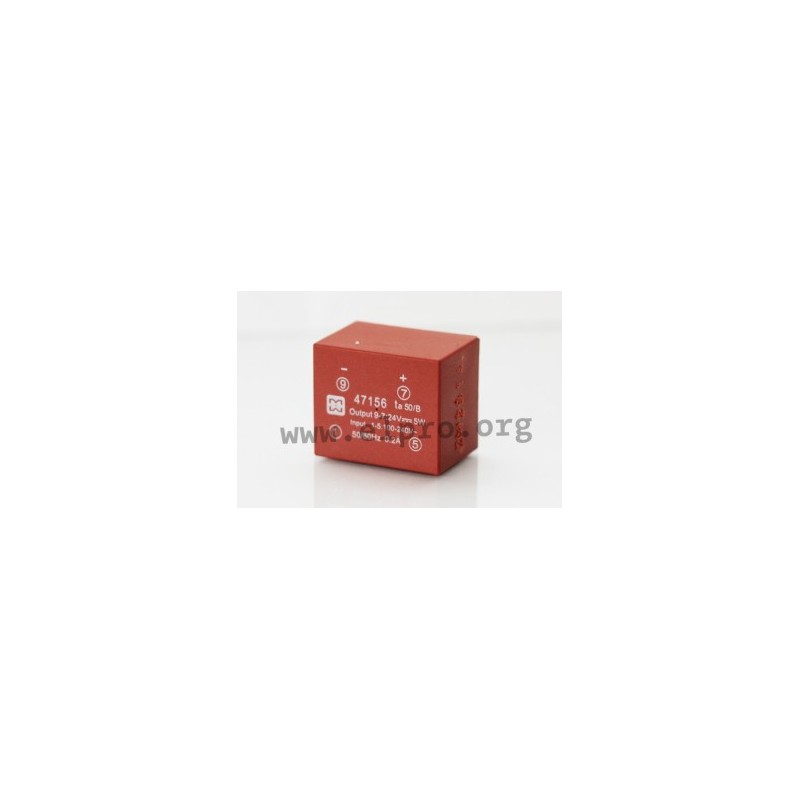

Myrra AC/DC converter series 4700

AC/DC converter modules in an enclosed housing with a universal input and a built-in circuit protection. These devices are suitable for PCB mounting and are protected against overload (auto recovery), short circuit as well as overtemperature. We offer various types of this Myrra series.

  • single and dual output
  • output: 2,5 to 60W
  • input voltage: 85 to 265V AC
  • maximal input inrush current: 30A
  • maximal leakage current: 5mA
  • maximal no-load power consumption: 200mW
  • overload protection (hiccup): 150% IA
  • withstand voltage I/P-O/P: 4000V AC
  • insulation class: B
47210

47210

111346 47210 47210 Myrra AC/DC converter series 4700. AC/DC converter modules in an enclosed housing with a universal input and a built-in circuit protection. These devices are suitable for PCB mounting and are protected against overload (auto recovery), short circuit as well as overtemperature. We offer various types of this Myrra series. single and dual output output: 2,5 to 60W input voltage: 85 to 265V AC maximal input inrush current: 30A maximal leakage current: 5mA maximal no-load power consumption: 200mW overload protection (hiccup): 150% IA  withstand voltage I/P-O/P: 4000V AC insulation class: B

Specifications

manufacturer
Manufacturer's name 47210
Output voltage [V] 5
Output current range [mA] 2100
Efficiency [%] 76
Output voltage tolerance: [%] ±3
Output power [W] 10
Data Sheet

Unit price

7,19 €

Stock: 45
Further delivery:
CW 22/2025
