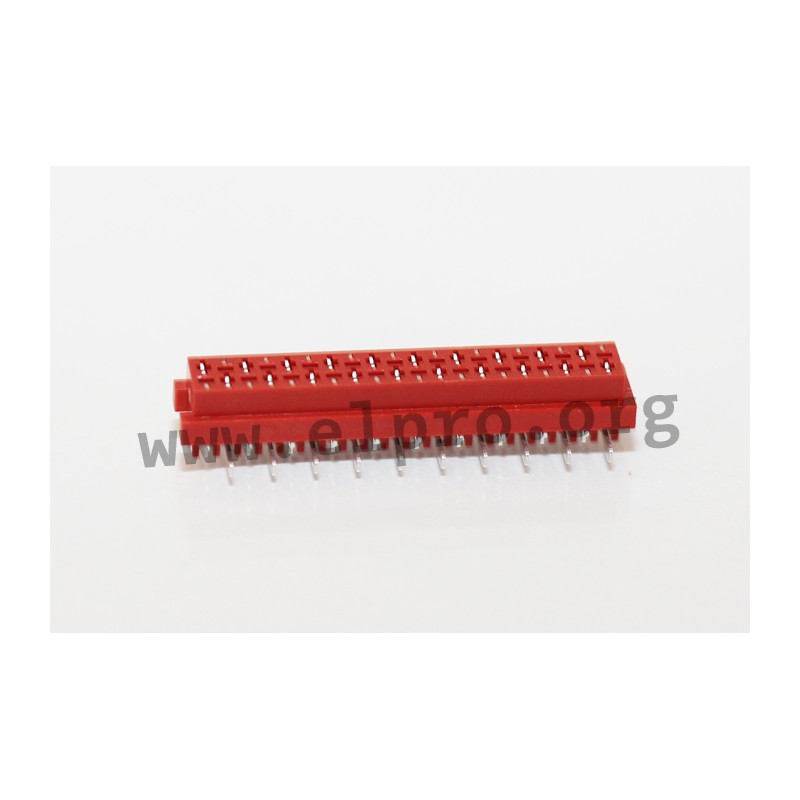

BL 2/15-0530 4-polig

SMD female PCB connectors

• series Micro-Part by MPE Garry
• pitch: 1.27mm
• housing material: thermoplastic, high temperature
• colour: red
• flammability: UL94V-0
• contact material: phosphor bronze
• contact surface: tin-plated
• breakdown voltage (1min.): 1000 VRMS
• rated current: 1.5A
• temperature range: -40 to +105°C

suitable pin headers MicroPart and MicroMaTch by MPE Garry

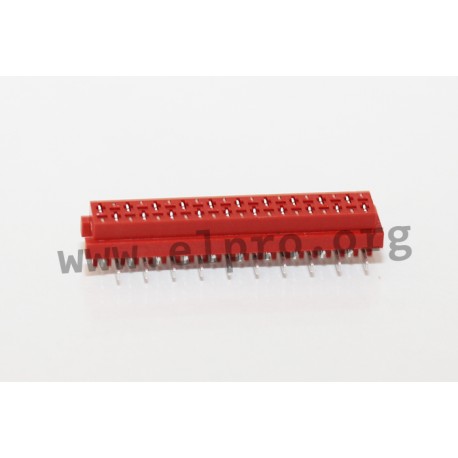

BL 2/15-0530 series

BL 2/15-0530 4-polig

106687 BL 2/15-0530 4-polig 374-1-004-0-NTX-KT0 374-1-004-0-NTX-KT0 SMD female PCB connectors. • series Micro-Part by MPE Garry• pitch: 1.27mm• housing material: thermoplastic, high temperature• colour: red• flammability: UL94V-0• contact material: phosphor bronze• contact surface: tin-plated• breakdown voltage (1min.): 1000 VRMS• rated current: 1.5A• temperature range: -40 to +105°Csuitable pin headers MicroPart and MicroMaTch by MPE Garry

Specifications

manufacturer
Manufacturer's name 374-1-004-0-...
Number of poles 4
A [mm] 9,7
D [mm] 3,81
B [mm] 7,0
C [mm] 5,6
Data Sheet

Unit price

0,163 €

Stock: 4073
Next incoming goods:
CW 16/2025
2610 units

Further delivery:
CW 26/2025

Minimum order quantity 1 to 13 units or multiples of 29 plus 0 to 13 .
