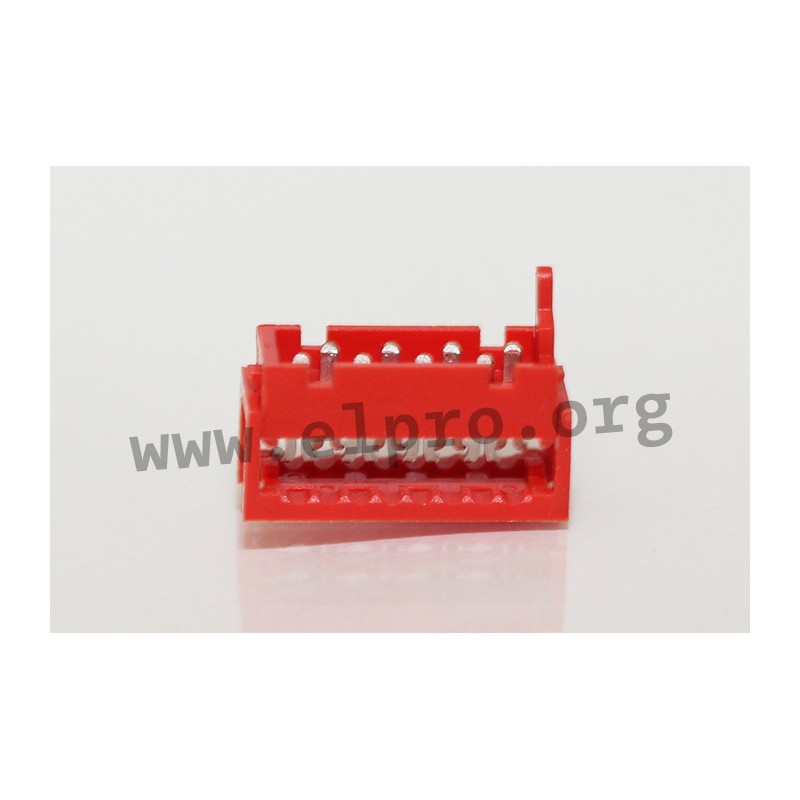

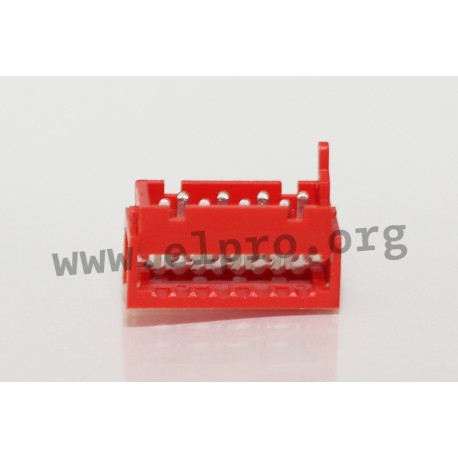

STL 2/15-0510IDC 8-polig

male PCB connectors IDC for Flat Cables

* series Micro-Part by MPE Garry
* pitch: 1.27mm
* housing material: thermoplastic, high temperature
* colour: red
* flammability: UL94V-0
* contact material: phosphor bronze
* contact surface: tinned
* rated voltage: 230VRMS/VDC
* rated current: 1.5A
* breakdown voltage (1 min.): 1000VRMS
* operating temperature range: -40 to +105°C


suitable female headers for soldering or SMD version

STL 2/15-0510IDC 8-polig

STL 2/15-0510IDC 8-polig

106668 STL 2/15-0510IDC 8-polig 372-1-008-T-KT0 372-1-008-T-KT0 male PCB connectors IDC for Flat Cables. * series Micro-Part by MPE Garry* pitch: 1.27mm* housing material: thermoplastic, high temperature* colour: red* flammability: UL94V-0* contact material: phosphor bronze* contact surface: tinned* rated voltage: 230VRMS/VDC * rated current: 1.5A* breakdown voltage (1 min.): 1000VRMS* operating temperature range: -40 to +105°Csuitable female headers for soldering or SMD version

Specifications

manufacturer
Manufacturer's name 372-1-008-T-KT0
Number of poles 8
A [mm] 8,89
B [mm] 45
Data Sheet

Unit price

0,295 €

Stock: 34
Next incoming goods:
CW 16/2025
2226 units

Further delivery:
CW 26/2025

Minimum order quantity 1 to 4 units or multiples of 42 plus 0 to 4 .
