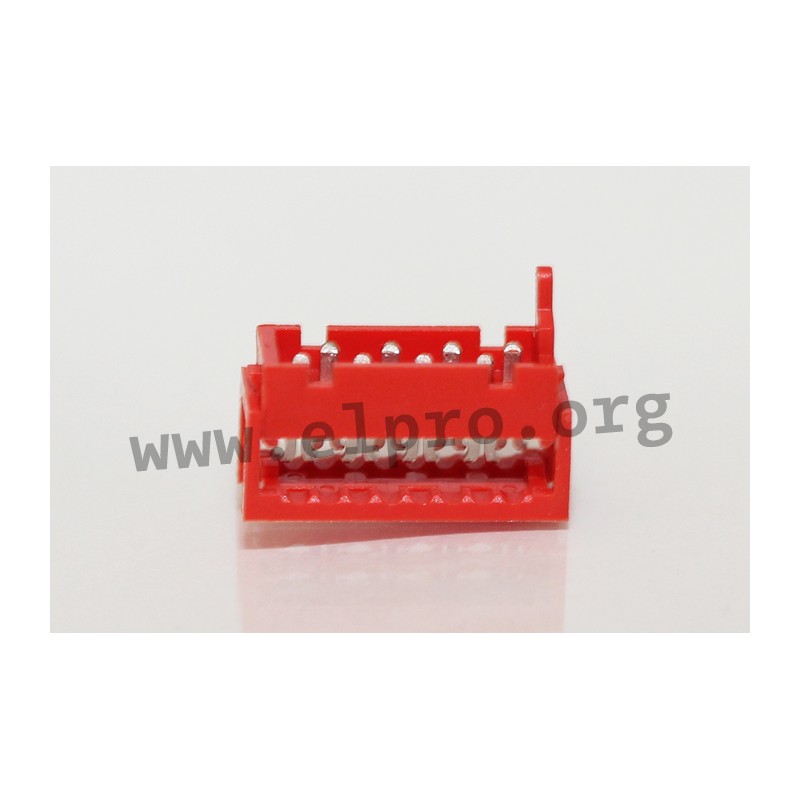

STL 2/15-0510IDC 4-polig

male PCB connectors IDC for Flat Cables

• series Micro-Part by MPE Garry
• pitch: 1.27mm
• housing material: thermoplastic, high temperature
• colour: red
• flammability: UL94V-0
• contact material: phosphor bronze
• contact surface: tinned
• rated voltage: 230VRMS/VDC
• rated current: 1.5A
• breakdown voltage (1 min.): 1000VRMS
• operating temperature range: -40 to +105°C


suitable female headers for soldering or SMD version

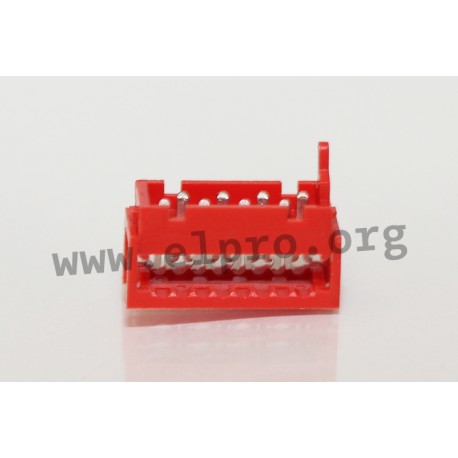

STL 2/15-0510IDC series

STL 2/15-0510IDC 4-polig

106666 STL 2/15-0510IDC 4-polig 372-1-004-T-KT0 372-1-004-T-KT0 male PCB connectors IDC for Flat Cables. * series Micro-Part by MPE Garry* pitch: 1.27mm* housing material: thermoplastic, high temperature* colour: red* flammability: UL94V-0* contact material: phosphor bronze* contact surface: tinned* rated voltage: 230VRMS/VDC * rated current: 1.5A* breakdown voltage (1 min.): 1000VRMS* operating temperature range: -40 to +105°Csuitable female headers for soldering or SMD version

Specifications

manufacturer
Manufacturer's name 372-1-004-T-KT0
Number of poles 4
A [mm] 8,45
B [mm] 3,81
Data Sheet

Unit price

0,174 €

Stock: 4.289
Next incoming goods:
CW 16/2025
603 units

Further delivery:
CW 41/2025

Minimum order quantity 67 units or
multiples of 67.
