373-1-012-0-T-KT0

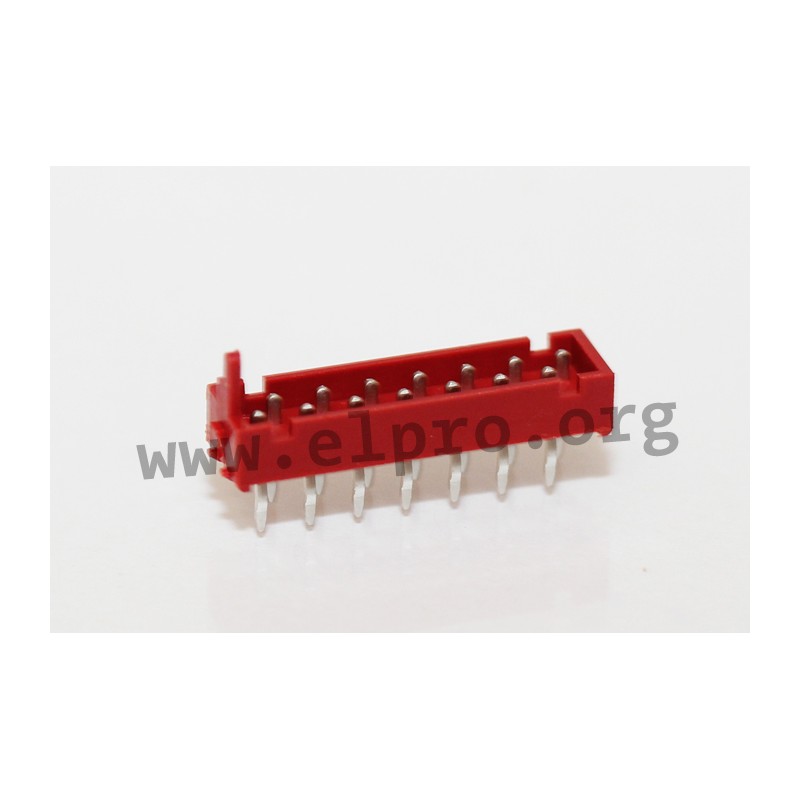

Male PCB connectors IDC for Flat Cables

• series Micro-MaTch by MPE Garry
• pitch: 1.27mm
• housing material: thermoplastic, high temperature
• for through hole mount
• flammability: UL94V-0
• contact material: phosphor bronze
• contact surface: tinned
• rated voltage: 230VRMS/VDC
• breakdown voltage (1 min.): 1000VRMS
• operating temperature range: -40 to +105°C
• process temperature, max: 260°C (10s)

Suitable female headers for soldering or SMD version

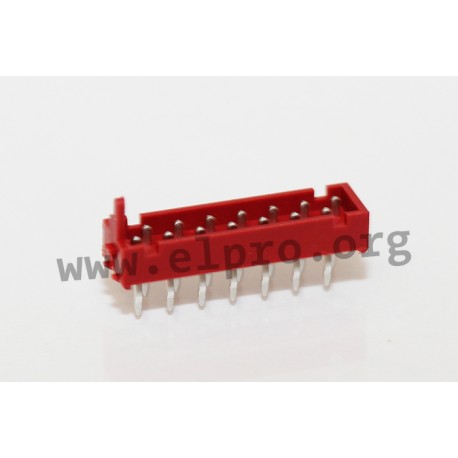

373-1 series

373-1-012-0-T-KT0

106676 373-1-012-0-T-KT0 373-1-012-0-T-KT0 Male PCB connectors IDC for Flat Cables. • series Micro-MaTch by MPE Garry• pitch: 1.27mm• housing material: thermoplastic, high temperature• for through hole mount• flammability: UL94V-0• contact material: phosphor bronze• contact surface: tinned• rated voltage: 230VRMS/VDC• breakdown voltage (1 min.): 1000VRMS• operating temperature range: -40 to +105°C• process temperature, max: 260°C (10s)Suitable female headers for soldering or SMD version

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 373-1-012-0-T-KT0
Number of poles 12
A [mm] 17,36
B [mm] 12,70
Data Sheet

Unit price

0,224 €

Stock: 9

Minimum order quantity 11 units or
multiples of 11.
