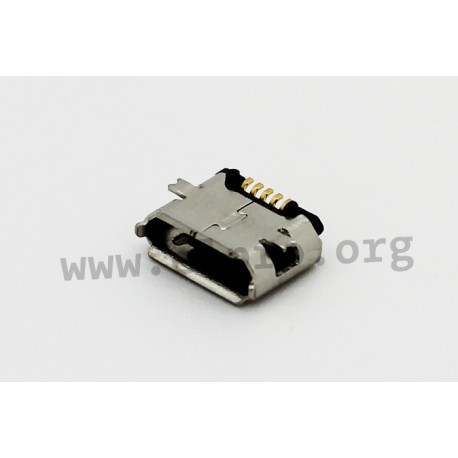

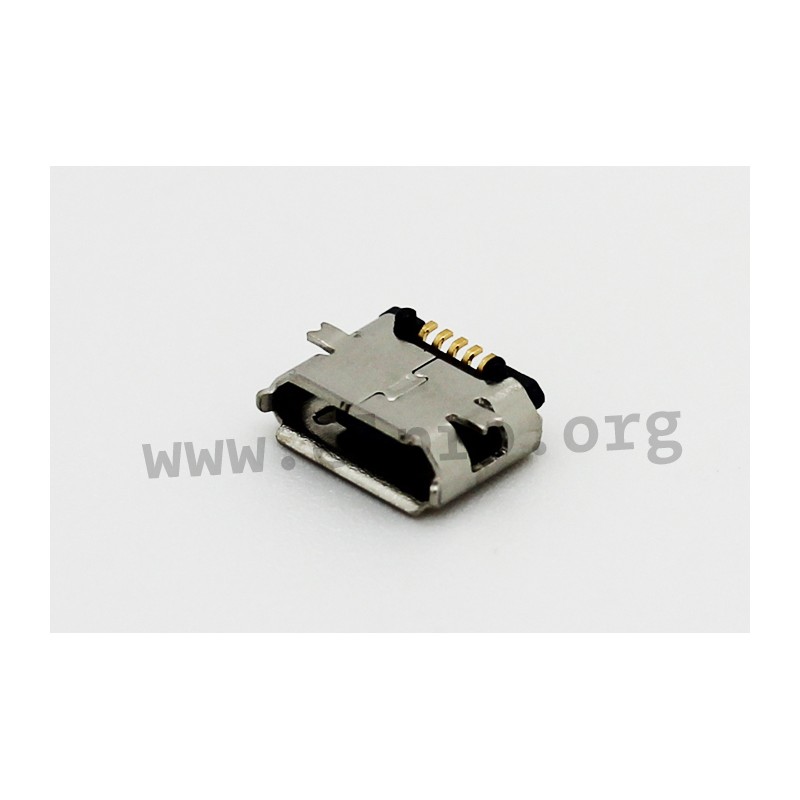

712-1-S-BS0

Micro USB connectors by Garry

These micro USB sockets for SMD mounting are available as 712-1-S-BS0: Micro USB socket type B and 712-2-S-BS0: Micro USB socket type AB. We are offering the following types by Garry: 712-1-S-BS0: Micro USB socket type B and 712-2-S-BS0: Micro USB socket type AB.

insulation shell: High temp. Thermoplastic UL94V-0
Contact Material: Phosphor Bronze
Contact Surface: Au-plated
Rated Current: 1,0A1) or 1,8A/0,5A2)
Rated Voltage: 30VRMS/V DC
Dielectric Strength (1Min.): 100VRMS
Temperature Range: -30 to +80°C
Short Term (10s): +260°C

1) für Pin 1 bis 5 oder 2) 1,8A für Pin 1 und 5 und 0,5A für Pin 2 bis 4

712-1-S-BS0

712-1-S-BS0

108832 712-1-S-BS0 712-1-S-BS0 Micro USB connectors by Garry. These micro USB sockets for SMD mounting are available as 712-1-S-BS0: Micro USB socket type B and 712-2-S-BS0: Micro USB socket type AB. We are offering the following types by Garry: 712-1-S-BS0: Micro USB socket type B and 712-2-S-BS0: Micro USB socket type AB. insulation shell: High temp. Thermoplastic UL94V-0Contact Material: Phosphor BronzeContact Surface: Au-platedRated Current: 1,0A1) or 1,8A/0,5A2)Rated Voltage: 30VRMS/V DCDielectric Strength (1Min.): 100VRMSTemperature Range: -30 to +80°CShort Term (10s): +260°C 1) für Pin 1 bis 5 oder 2) 1,8A für Pin 1 und 5 und 0,5A für Pin 2 bis 4

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name 712-1-S-BS0
Data Sheet

Unit price

0,799 €

Stock: 760

Minimum order quantity 10 units or
multiples of 10.
