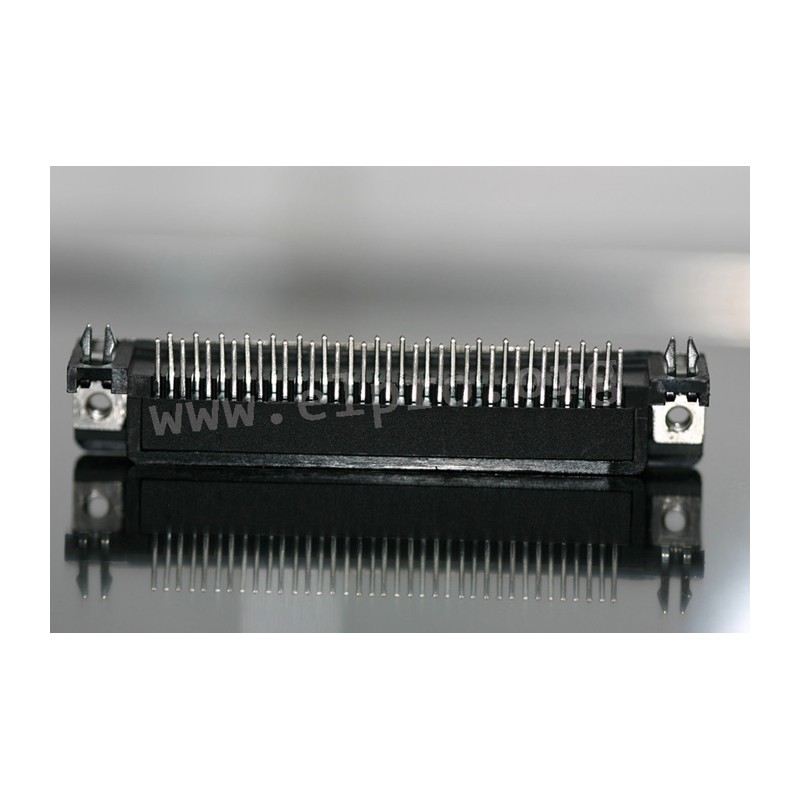

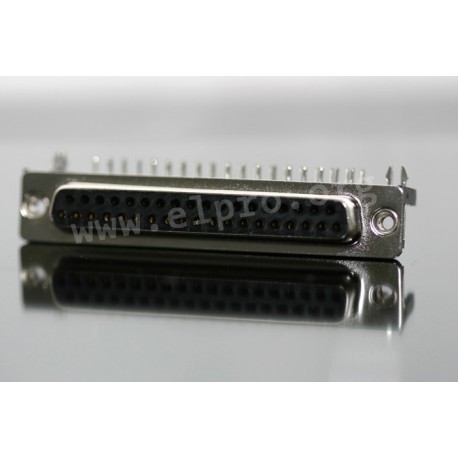

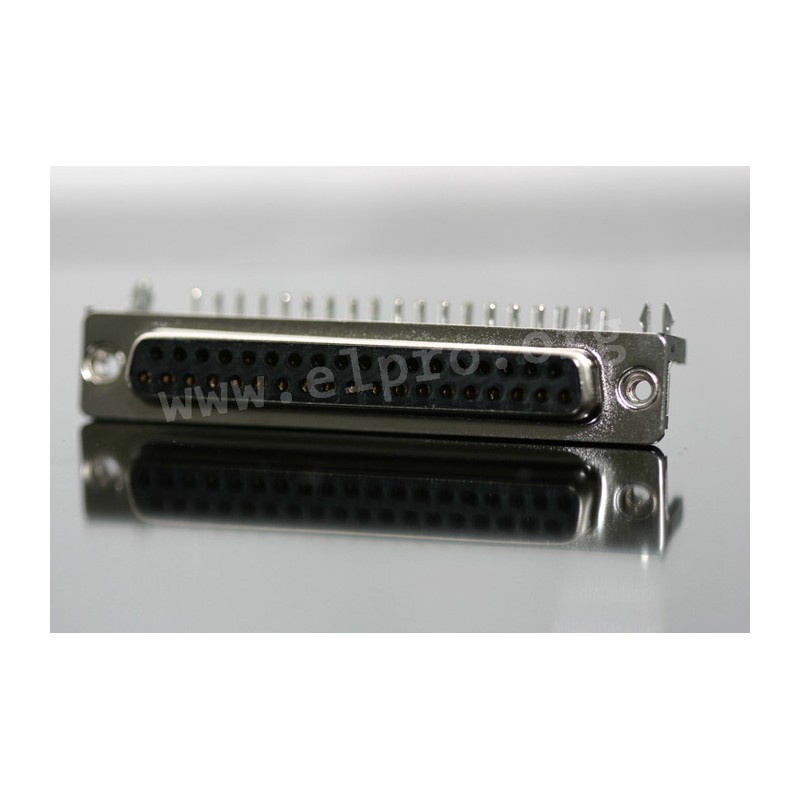

DMR 37 F 9,4mm

snap-in, PCB mounting

• 9.4mm : europe footprint
• stampedcontacts
• Snap-In mount on PCB
• insulating shell: PBT +30% glass fiber, UL94V-0
• contacts: phosphor bronze or brass
• plug side: flash gold over nickel
• solder side: tin over nickel
• housing frame: steel, tin-plated

DMR _F_

DMR 37 F 9,4mm

13556 DMR 37 F 9,4mm DMR 37 F 9,4mm snap-in, PCB mounting. • 9.4mm : europe footprint• stampedcontacts• Snap-In mount on PCB• insulating shell: PBT +30% glass fiber, UL94V-0• contacts: phosphor bronze or brass• plug side: flash gold over nickel• solder side: tin over nickel• housing frame: steel, tin-plated

Discontinued items. Only remainder of stock available.

Specifications

Number of poles 37

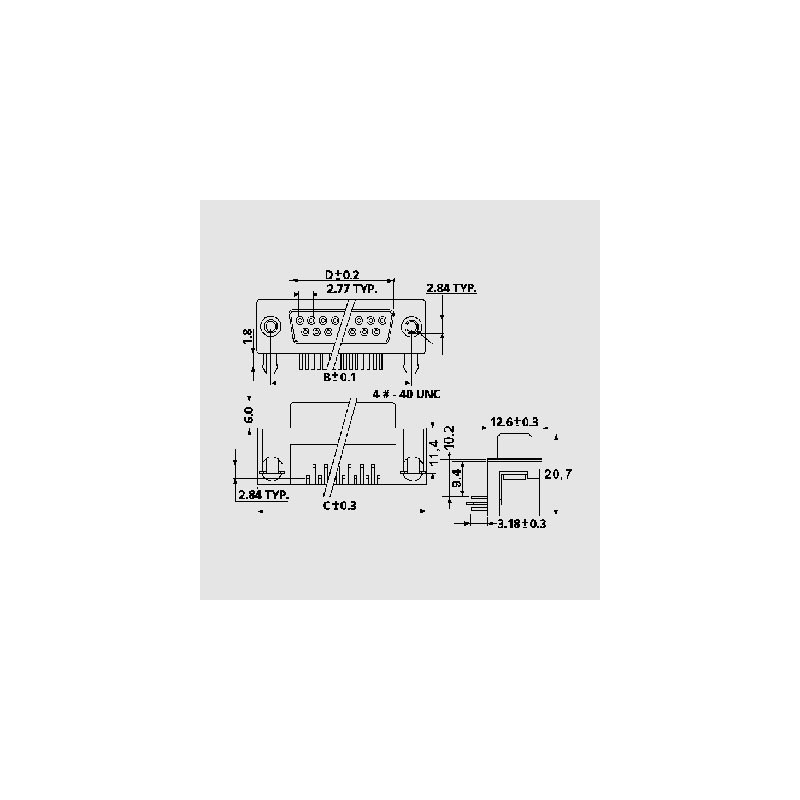

Width [mm] 63,5
D [mm] 54,84
C [mm] 69,32

Unit price

1,09 €

Stock: 10

Minimum order quantity 10 units or
multiples of 10.
