DMR 15 F 9,4mm

snap-in, PCB mounting

• 9.4mm : europe footprint
• stampedcontacts
• Snap-In mount on PCB
• insulating shell: PBT +30% glass fiber, UL94V-0
• contacts: phosphor bronze or brass
• plug side: flash gold over nickel
• solder side: tin over nickel
• housing frame: steel, tin-plated

DMR _F_

DMR 15 F 9,4mm

13552 DMR 15 F 9,4mm 597-4-015F-N60NF-BS0 597-4-015F-N60NF-BS0 snap-in, PCB mounting. • 9.4mm : europe footprint• stampedcontacts• Snap-In mount on PCB• insulating shell: PBT +30% glass fiber, UL94V-0• contacts: phosphor bronze or brass• plug side: flash gold over nickel• solder side: tin over nickel• housing frame: steel, tin-plated

Specifications

manufacturer
Manufacturer's name 597-4-015F-N...
Number of poles 15

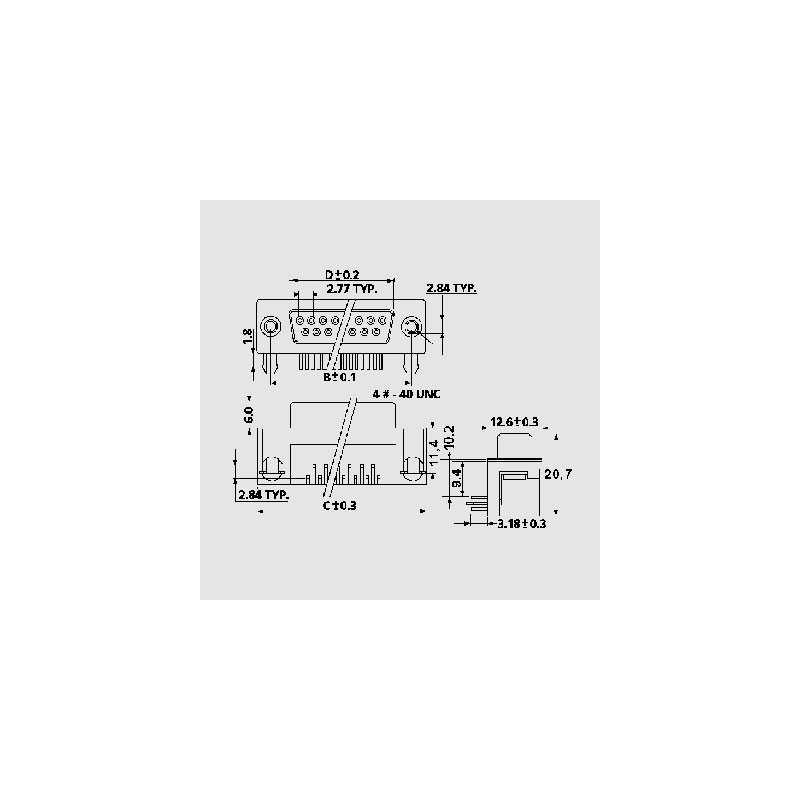

Width [mm] 33,32
D [mm] 25,13
C [mm] 39,2

Unit price

1,25 €

Stock: 8
Next incoming goods:
CW 04/2025
710 units

Further delivery:
CW 22/2025

Minimum order quantity 1 to 8 units or multiples of 10 plus 0 to 8 .
