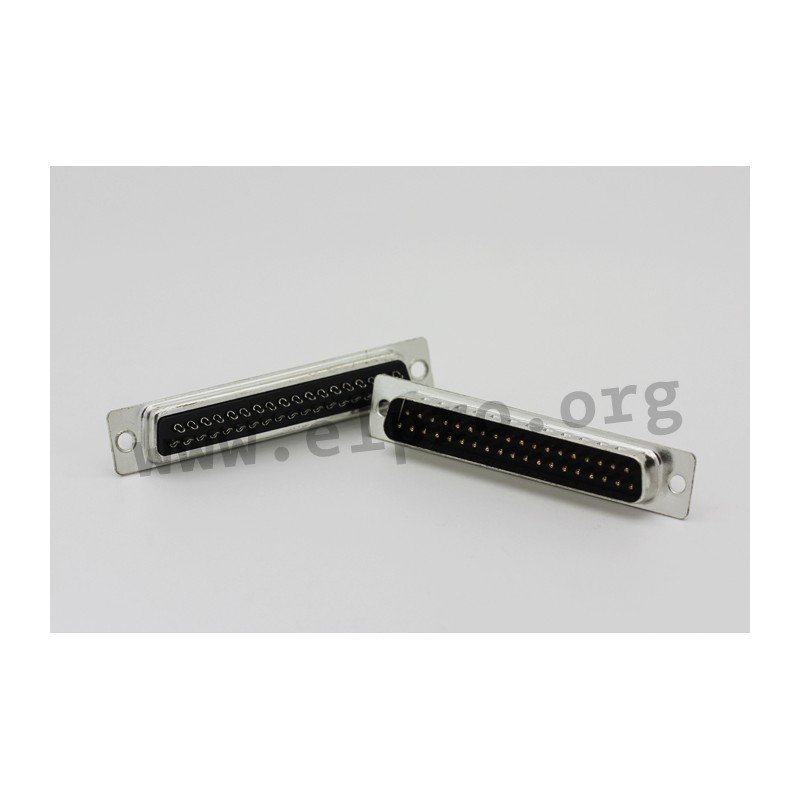

DS 37 L

simple version

• solder buckets
• insulating shell: PBT + 30% glass fiber, UL94V-0
• stamped brass contacts

contact surface
• plug side: selective flash gold over nickel
• solder side: tin over nickel
• housing frame: steel, tin-plated
• operating temperature range: -40...+105°C

DS 37 L

DS 37 L

13585 DS 37 L 596-4-037M-A00TS-BS0 596-4-037M-A00TS-BS0 simple version. • solder buckets• insulating shell: PBT + 30% glass fiber, UL94V-0• stamped brass contactscontact surface• plug side: selective flash gold over nickel• solder side: tin over nickel• housing frame: steel, tin-plated• operating temperature range: -40...+105°C

Specifications

manufacturer
Manufacturer's name 596-4-037M-A...
Number of poles 37

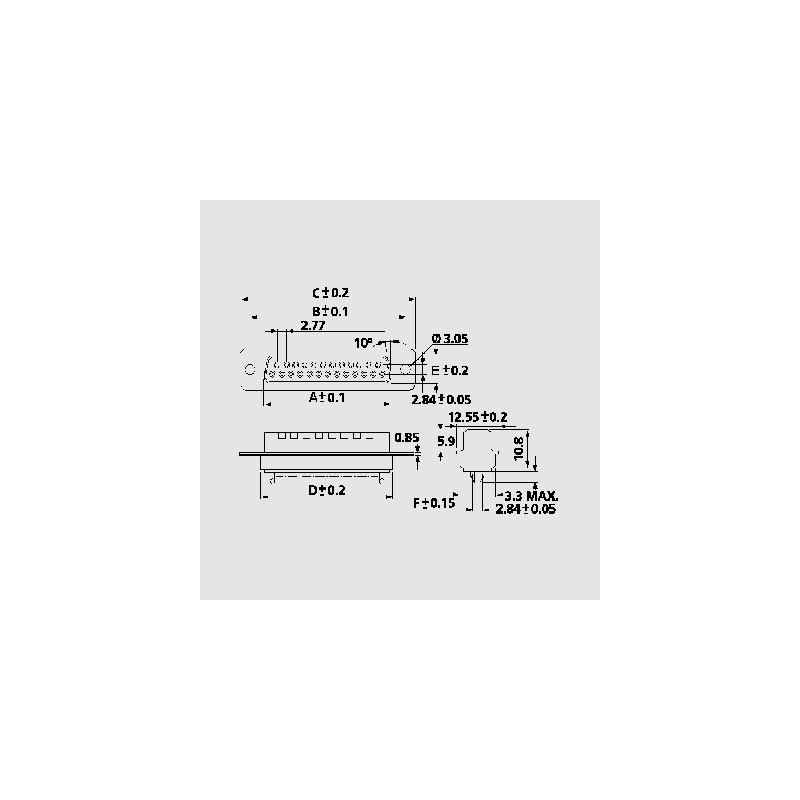

A [mm] 55,42
Width [mm] 63,5
D [mm] 57,4
F [mm] 10,72
C [mm] 69,5

Unit price

0,90 €

Stock: 1230
Further delivery:
CW 22/2025

Minimum order quantity 10 units or
multiples of 10.
