DS 25 L

simple version

• solder buckets
• insulating shell: PBT + 30% glass fiber, UL94V-0
• stamped brass contacts

contact surface
• plug side: selective flash gold over nickel
• solder side: tin over nickel
• housing frame: steel, tin-plated
• operating temperature range: -40...+105°C

596-4-025M-A00TS-BS0, MPE Garry pin strips, stamped contacts, solder bucket, 596-4 series

DS 25 L

13584 DS 25 L 596-4-025M-A00TS-BS0 596-4-025M-A00TS-BS0 simple version. • solder buckets• insulating shell: PBT + 30% glass fiber, UL94V-0• stamped brass contactscontact surface• plug side: selective flash gold over nickel• solder side: tin over nickel• housing frame: steel, tin-plated• operating temperature range: -40...+105°C

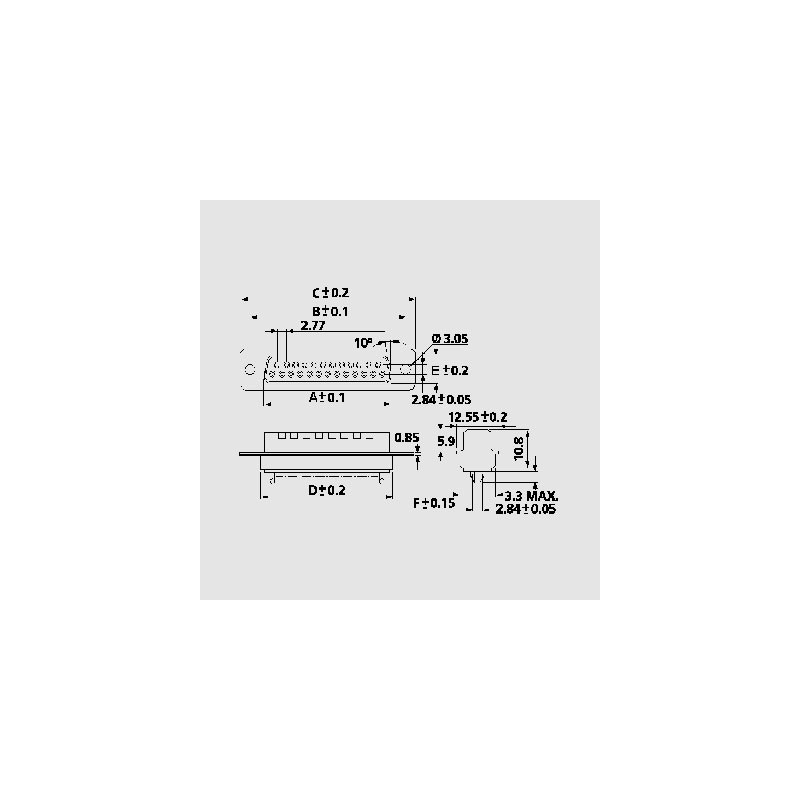

Specifications

manufacturer
Manufacturer's name 596-4-025M-A...
Number of poles 25
A [mm] 38,96
Width [mm] 47,04
D [mm] 41,3
F [mm] 10,72
C [mm] 53,03

Unit price

0,435 €

Stock: 80
Next incoming goods:
CW 49/2024
1000 units

Further delivery:
CW 22/2025

Minimum order quantity 10 units or
multiples of 10.
