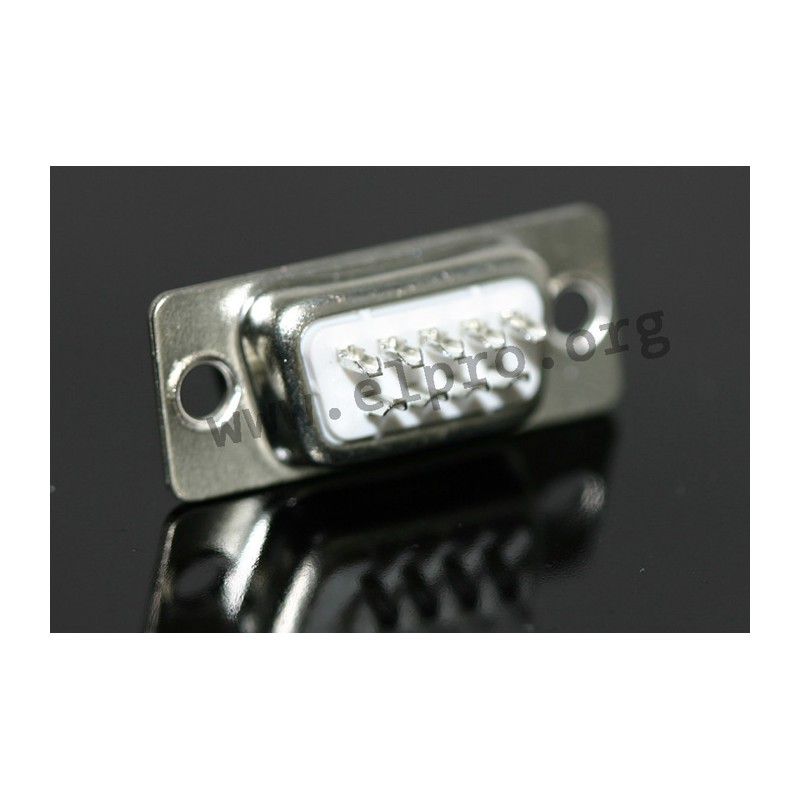

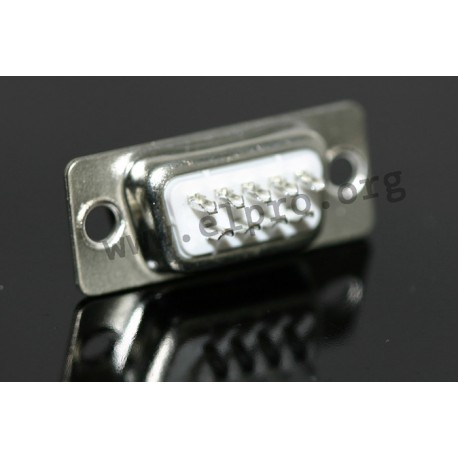

DS 09 L

simple version

• solder buckets
• insulating shell: PBT + 30% glass fiber, UL94V-0
• stamped brass contacts

contact surface
• plug side: selective flash gold over nickel
• solder side: tin over nickel
• housing frame: steel, tin-plated
• operating temperature range: -40...+105°C

DS 09 L

13580 DS 09 L 596-4-009M-A00TS-BS0 596-4-009M-A00TS-BS0 simple version. • solder buckets• insulating shell: PBT + 30% glass fiber, UL94V-0• stamped brass contactscontact surface• plug side: selective flash gold over nickel• solder side: tin over nickel• housing frame: steel, tin-plated• operating temperature range: -40...+105°C

Specifications

manufacturer
Manufacturer's name 596-4-009M-A...
Number of poles 9

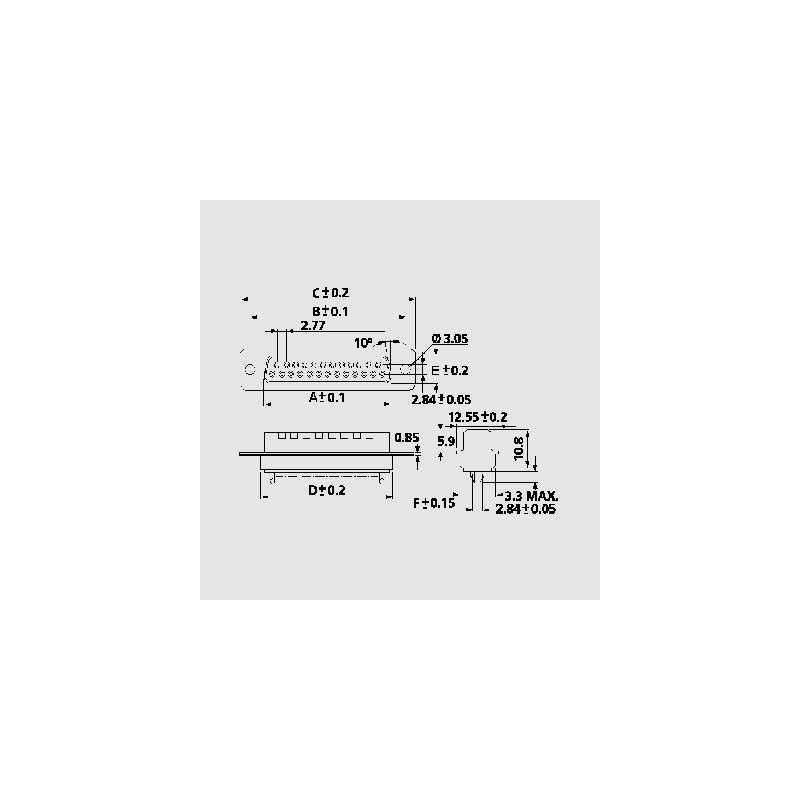

A [mm] 16,92
F [mm] 10,72
D [mm] 19,28
B [mm] 24,99
C [mm] 30,81

Unit price

0,225 €

Stock: 12455
Next incoming goods:
CW 04/2025
5000 units


Further delivery:
CW 27/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
