PSA 2,54 6-polig

MPE Garry pin header series 428

  • angled type nylon crimp connectors (90°)
  • insulator is made of thermoplastic (UL94V-0)
  • with tinned copper alloy contacts
  • rated voltage: 250VRMS/V DC
  • rated current: 3A
  • pitch: 2,54mm

Matching contacts

PSA 2,54

PSA 2,54 6-polig

32098 PSA 2,54 6-polig 428-2-006-0-T-KS0 428-2-006-0-T-KS0 MPE Garry pin header series 428. angled type nylon crimp connectors (90°) insulator is made of thermoplastic (UL94V-0) with tinned copper alloy contacts rated voltage: 250VRMS/V DC rated current: 3A pitch: 2,54mm Matching contacts

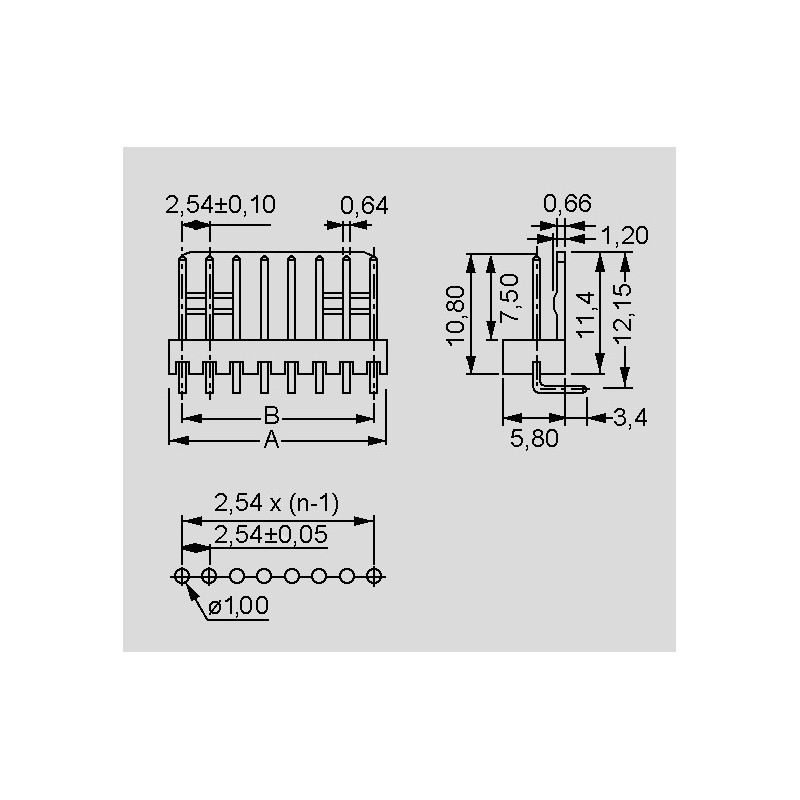

Specifications

manufacturer
Manufacturer's name 428-2-006-0-T-KS0
Number of poles 6
A [mm] 15,24
Width [mm] 12,7
Pitch [mm] 2,54
Data Sheet

Unit price

0,108 €

Stock: 5.241
Further delivery:
CW 43/2025

Minimum order quantity 1 to 41 units or multiples of 100 plus 0 to 41 .
