PSA 2,54 5-polig

MPE Garry pin header series 428

  • angled type nylon crimp connectors (90°)
  • insulator is made of thermoplastic (UL94V-0)
  • with tinned copper alloy contacts
  • rated voltage: 250VRMS/V DC
  • rated current: 3A
  • pitch: 2,54mm

Matching contacts

PSA 2,54

PSA 2,54 5-polig

11597 PSA 2,54 5-polig 428-2-005-0-T-KS0 428-2-005-0-T-KS0 MPE Garry pin header series 428. angled type nylon crimp connectors (90°) insulator is made of thermoplastic (UL94V-0) with tinned copper alloy contacts rated voltage: 250VRMS/V DC rated current: 3A pitch: 2,54mm Matching contacts

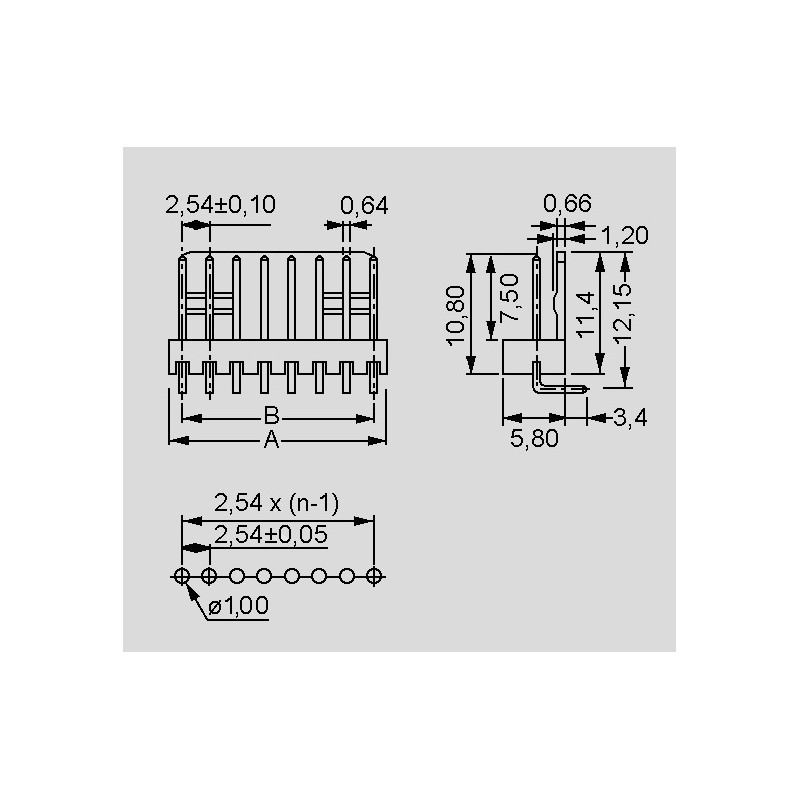

Specifications

manufacturer
Manufacturer's name 428-2-005-0-T-KS0
Number of poles 5
A [mm] 12,7
Width [mm] 10,16
Pitch [mm] 2,54
Data Sheet

Unit price

0,072 €

Stock: 11399
Further delivery:
CW 28/2025

Minimum order quantity 1 to 99 units or multiples of 100 plus 0 to 99 .
