384-1-016-HBN-ZS

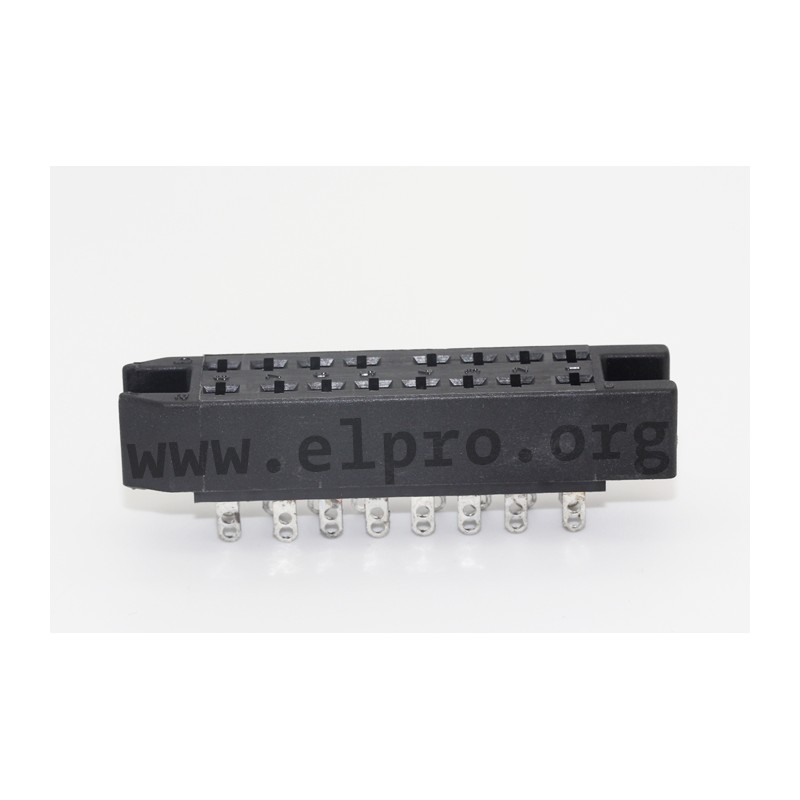

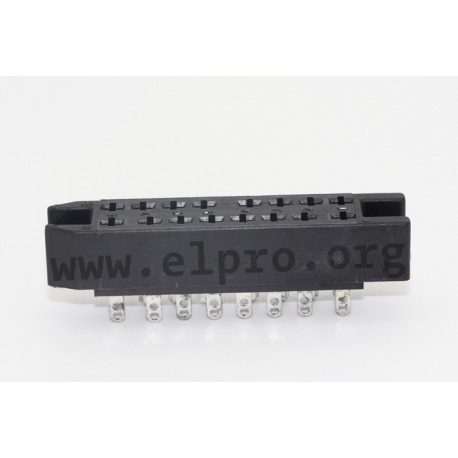

female connectors, straight, 384 by Garry

• according to DIN 41622 with solder contacts for wire mounting
• series: 384
• by Garry
• straight
• with solder lugs
• 383_HBN_: contact type female


• insulation shell: thermoplastic (UL94V-0)
• contact material: copper alloy, Ag 4µ
• rated current: 10A
• dielectric strength (for 1min.): 875VRMS
• temperature range: -20 ...+85°C
• max. process temperature: 230°C (5s)

384-1-016-HBN-ZS

384-1-016-HBN-ZS

42485 384-1-016-HBN-ZS 384-1-016-HBN-ZS female connectors, straight, 384 by Garry. • according to DIN 41622 with solder contacts for wire mounting• series: 384• by Garry• straight• with solder lugs• 383_HBN_: contact type female • insulation shell: thermoplastic (UL94V-0)• contact material: copper alloy, Ag 4µ• rated current: 10A• dielectric strength (for 1min.): 875VRMS• temperature range: -20 ...+85°C• max. process temperature: 230°C (5s)

Specifications

manufacturer
Manufacturer's name 384-1-016-HBN-ZS
Design solder lugs
Number of poles 16
Rows 2

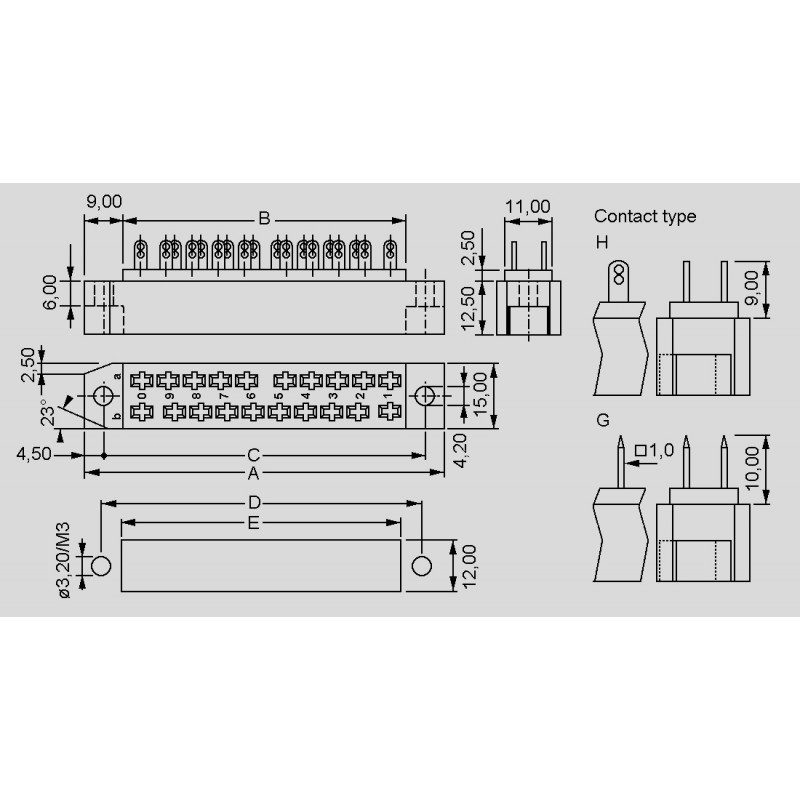

A [mm] 71
E [mm] 54
B [mm] 53
D [mm] 62
C [mm] 62
Data Sheet

Unit price

5,59 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 100 units or
multiples of 100.
