384-1-012-HBN-ZS

female connectors, straight, 384 by Garry

• according to DIN 41622 with solder contacts for wire mounting
• series: 384
• by Garry
• straight
• with solder lugs
• 383_HBN_: contact type female


• insulation shell: thermoplastic (UL94V-0)
• contact material: copper alloy, Ag 4µ
• rated current: 10A
• dielectric strength (for 1min.): 875VRMS
• temperature range: -20 ...+85°C
• max. process temperature: 230°C (5s)

384-1-012-HBN-ZS

384-1-012-HBN-ZS

42484 384-1-012-HBN-ZS 384-1-012-HBN-ZS female connectors, straight, 384 by Garry. • according to DIN 41622 with solder contacts for wire mounting• series: 384• by Garry• straight• with solder lugs• 383_HBN_: contact type female • insulation shell: thermoplastic (UL94V-0)• contact material: copper alloy, Ag 4µ• rated current: 10A• dielectric strength (for 1min.): 875VRMS• temperature range: -20 ...+85°C• max. process temperature: 230°C (5s)

Specifications

manufacturer
Manufacturer's name 384-1-012-HBN-ZS
Design solder lugs
Number of poles 12
Rows 2

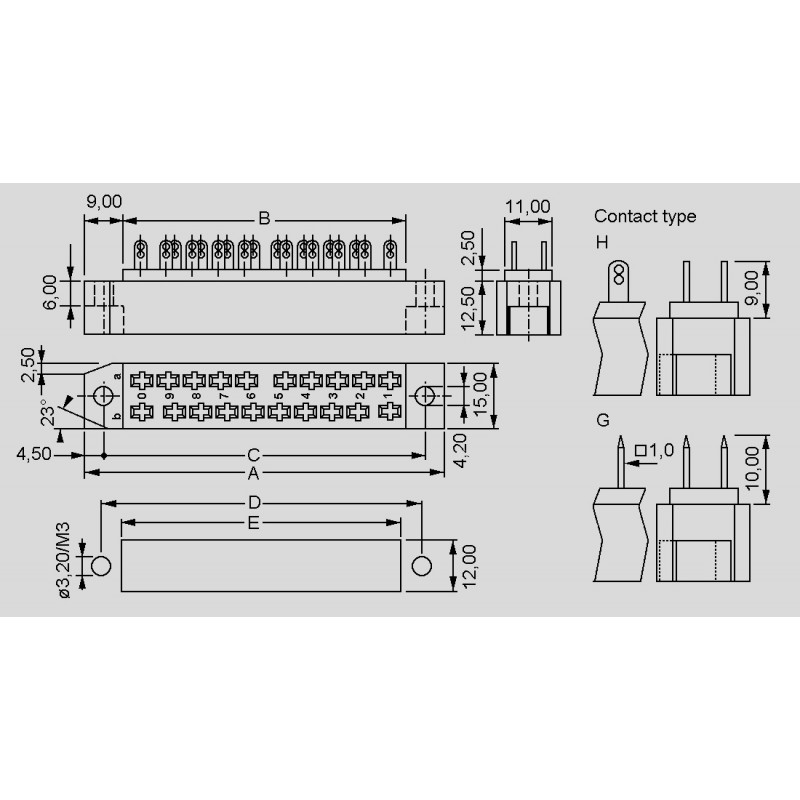

A [mm] 59
E [mm] 42
B [mm] 41
D [mm] 50
C [mm] 50
Data Sheet

Unit price

7,29 €

Stock: 300
Further delivery:
CW 12/2025
